Victoria Arduino BLACK EAGLE VA388

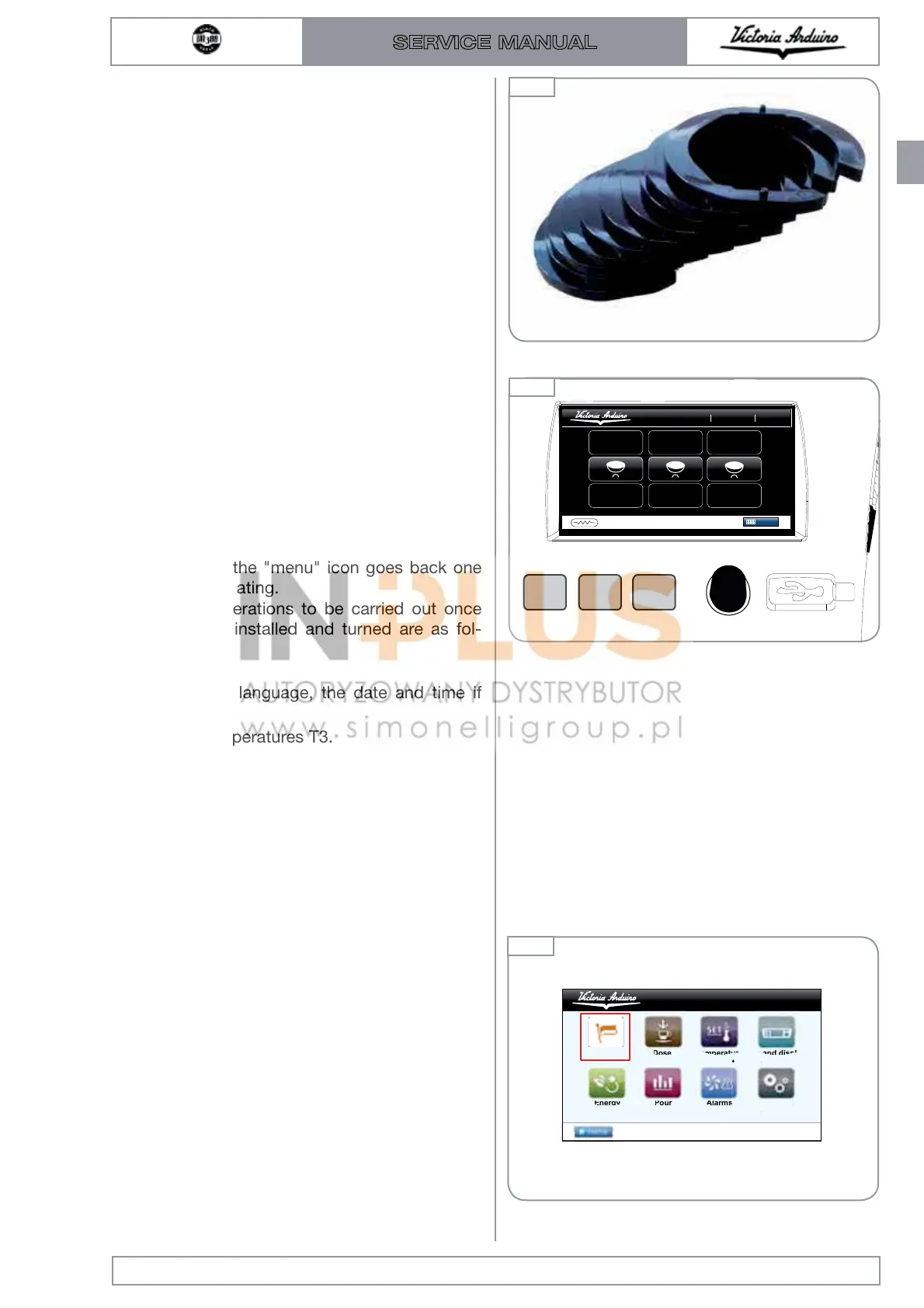

2.2 CABLE STRIP
COVERING (optional)
Once the machine has been levelled and con-
nected to the power and water mains, use the
cable strips (optional) to cover up the wiring, as
shown in the figure.
2.2.1 PROGRAMMING BEFORE IN-
STALLATION
Using the rotary switch you can move inside the
interface When the icon is selected, it changes
colour and lights up white; pr
ess to enable the
selected function/icon. Programming also makes
it possible to increased or reduce settings.
The "Home" button always returns to the initial
interface, while the "menu" icon goes back one
level when navigating.
The minimal operations to be carried out once
the machine is installed and turned are as fol-
lows:
1 Update the language, the date and time if
necessary.
2 Set the temperatures T3.
3 In version V set also doses (volume at CC)
for the various keys.
4 In the Gravimetric version set the dosage
grams and the weight compensation.
2.2.2 SETTING OF LANGUAGE,
DATE
AND TIME
Use the rotary switch to move to the "Language"
icon and press the icon to open.
Edition 01 of 08/2017
2.9
SERVICE MANUAL
Fig. 27
0.05 bar
Menu
21 MarchSunday 14:45
Fig. 28
Language Dose
programming
Temperature
setpoint
Key and display
settings
Energy
saving
Pour
count
Alarms Technical
settings
ure
t
Key and display
sett
ings
s
T
echnical
settin
g
s
setp
oin
Alarms
t
s
programming
Pour
Energy
y
and
disp
l
and disp
Temperat
ur
u
Dose
Main Menu
Fig. 29
