Victoria Arduino BLACK EAGLE VA388 - Page 85

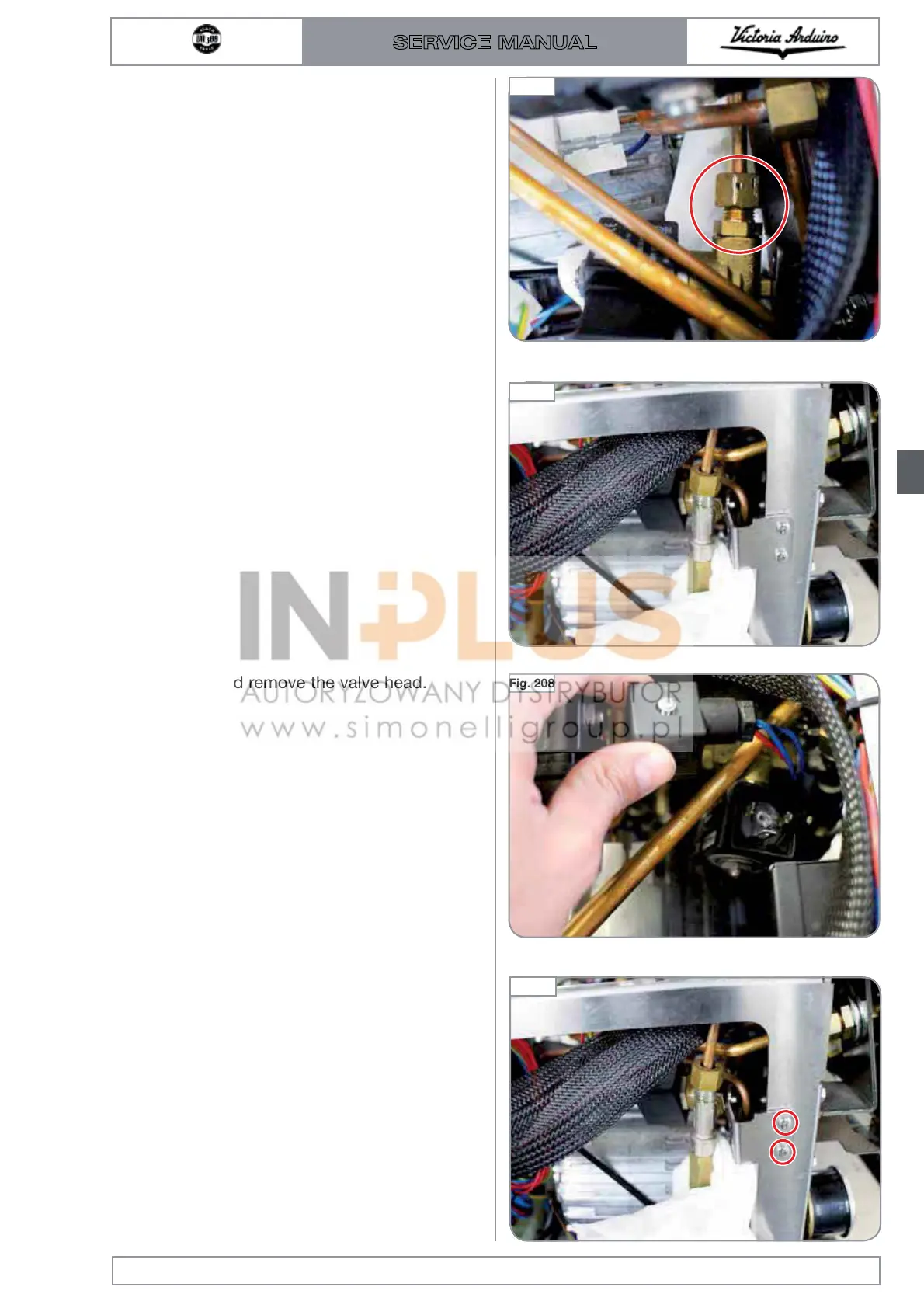

5 Unscrew and remove the valve head.
6 Remove the screws of the plate that holds
the valve in position.
3 Disconnect valve outlet using a key No. 17.
4 Disconnect the pipe that carries water to
heat exchangers.
Edition 01 of 08/2017
7.9
SERVICE MANUAL
Fig. 209
Fig. 206
Fig. 208
Fig. 207
