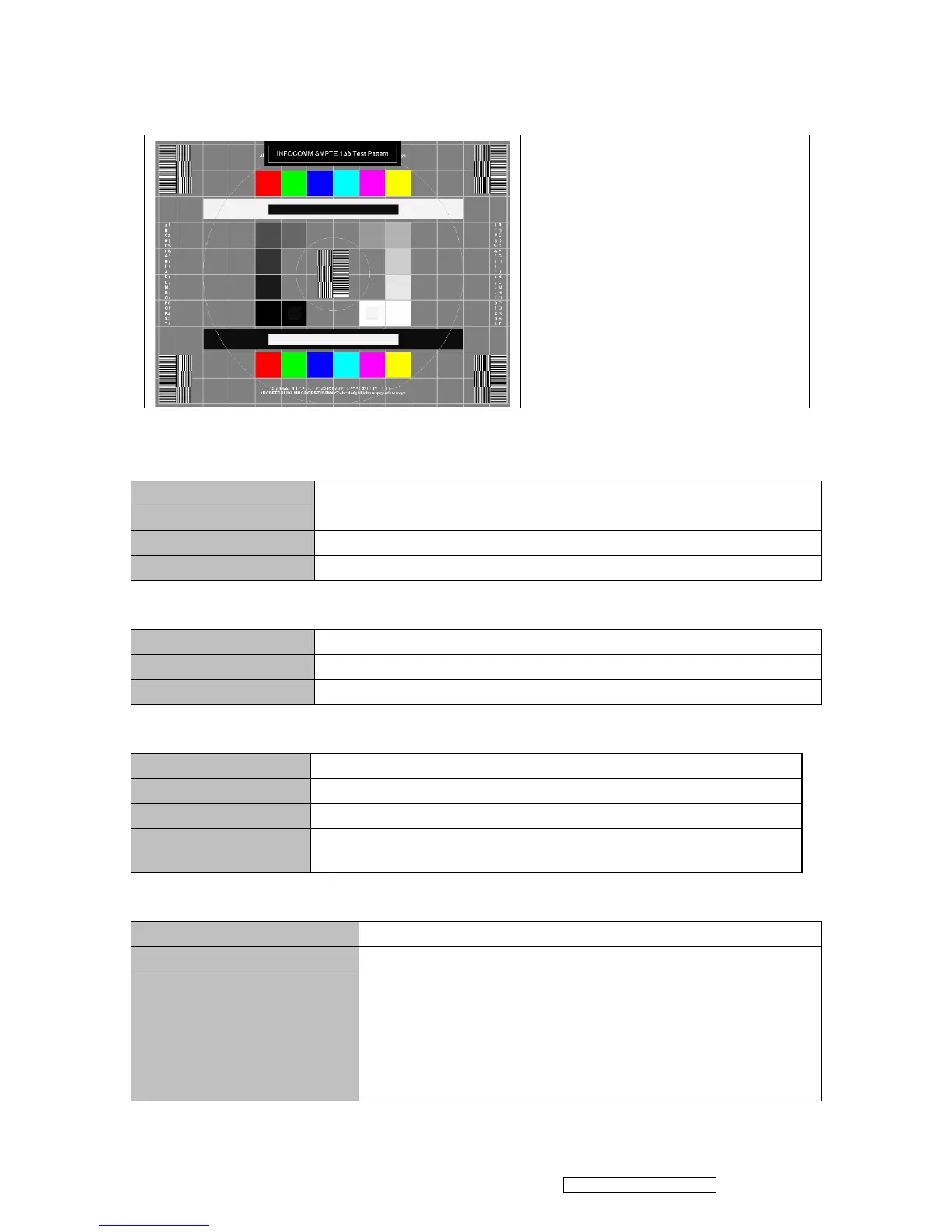

ViewSonic PJD6531w User Manual

INFOCOMM SMPTE 133
1. The intervals of center thin white and
black bars should be distinct.
2. The squares around the small circle in
the center show the transition of full
white to full black.
S-Video
I/O port
S-Video
Test Equipment
Standard Pattern generator (Ex. Quantum data)&DVD player
Signal format
480i
Criteria
No apparent color deviation on the projected image
Video
I/O port
Video
Test Equipment
Standard Pattern generator (Ex. Quantum data)&DVD player
Criteria
No apparent color deviation on the projected image
HDMI
I/O port
HDMI
Test Equipment
HDMI source device
Signal format
480p
Criteria
No apparent color deviation on the projected image nor abnormal
voice.
(5) Resolution
I/O port
VGA
Test Equipment
PC
Test Method
1. Rotate Zoom ring to wide mode (Maximum projected image)
2. Fix projector to set diagonal length of projected image to 60 ”.
3. Adjust focus ring to make resolution of 4 corners and center
are balanced.
4. Check he characters should be recognized easily.
5. Rotate Zoom ring to tele mode (Minimum projected image)
Confidential - Do Not Copy
ViewSonic Corporation
PJD6531w
40

ViewSonic PJD6531w Specifications

General

Native aspect ratio	16:10
Projection distance	1.2 - 10 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	31 - 80 kHz
Projection technology	DLP
Supported aspect ratios	4:3, 16:10
Contrast ratio (typical)	2000:1
Screen size compatibility	27 - 300 \
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	± 40 °
Focus	Manual
Throw ratio	1.5 - 1.8:1
Focal length range	- mm
Lamp power	230 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	6000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, PAL, SECAM
RMS rated power	10 W
Number of built-in speakers	2
Serial interface type	RS-232
USB 2.0 ports quantity	0
S-Video inputs quantity	1
VGA (D-Sub) ports quantity	3
Cables included	VGA
HDCP	-
Noise level	34 dB
Certification	CB, WEEE, UL/cUL, FCC-B, ICES-003, IRAM, NOM, PSB, C-tick, EK, CE, TUV/GS, GOST-R, Hygienic, SASO UKrSEPRO, CCC
Noise level (economic mode)	29 dB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	305 W
Operating temperature (T-T)	0 - 40 °C
Product color	Black
Market positioning	Presentation
Sustainability certificates	RoHS

Weight and Dimensions

Depth	114 mm
Width	280 mm
Height	218 mm
Weight	1850 g
Package depth	305 mm
Package width	345 mm
Package height	220 mm
Package weight	4500 g
