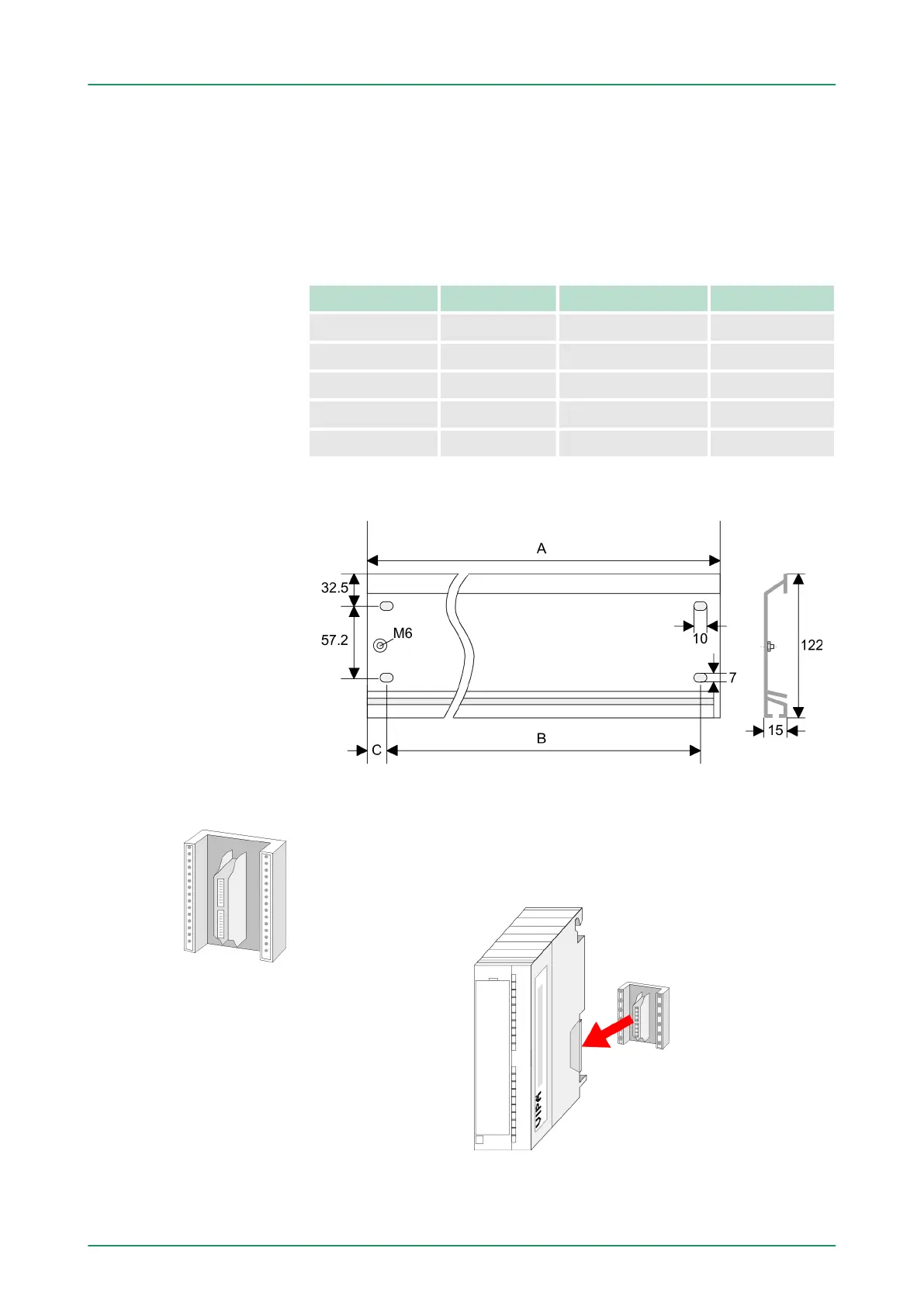

3.2 Assembly standard bus
The single modules are directly installed on a profile rail and con-
nected via the backplane bus connector. Before installing the
modules you have to clip the backplane bus connector to the module
from the backside. The backplane bus connector is delivered together
with the peripheral modules.
Order number A B C
390-1AB60 160 140 10
390-1AE80 482 466 8.3
390-1AF30 530 500 15
390-1AJ30 830 800 15
390-9BC00* 2000 Drillings only left 15
*) Unit pack: 10 pieces
Measures in mm
For the communication between the modules the System 300S uses
a backplane bus connector. Backplane bus connectors are included
in the delivering of the peripheral modules and are clipped at the
module from the backside before installing it to the profile rail.
General
Profile rail
Bus connector
VIPA System 300S Assembly and installation guidelines
Assembly standard bus
HB140 | CPU-SC | 312-5BE13 | GB | 15-50 17
