5.6 Hardware configuration - I/O modules

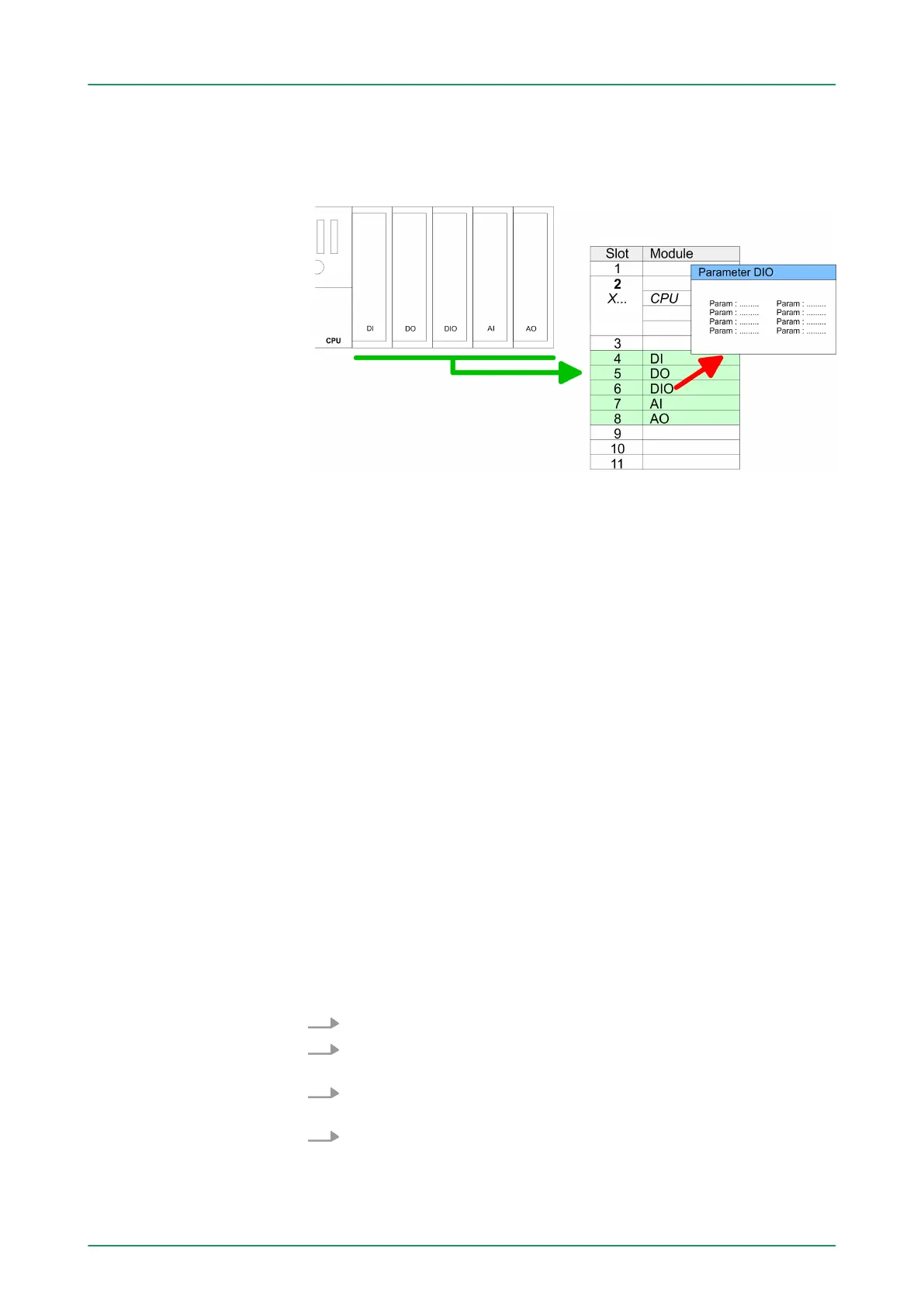

After the hardware configuration place the System 300 modules in the
plugged sequence starting with slot 4.
For parametrization double-click during the project engineering at the
slot overview on the module you want to parameterize. In the
appearing dialog window you may set the wanted parameters. By
using the SFCs 55, 56 and 57 you may alter and transfer parameters
for wanted modules during runtime. For this you have to store the
module specific parameters in so called "record sets". More detailed
information about the structure of the record sets is to find in the
according module description.
Maximally 8 modules may be addressed by the CPU 312-5BE13. The
extension by means of extension racks is not possible!
5.7
Hardware configuration - Ethernet PG/OP channel
The CPU 312-5BE13 has an integrated Ethernet PG/OP channel.
This channel allows you to program and remote control your CPU.
The PG/OP channel also gives you access to the internal web page
that contains information about firmware version, connected I/O
devices, current cycle times etc. With the first start-up respectively
after an overall reset the Ethernet PG/OP channel does not have any
IP address. For online access to the CPU via Ethernet PG/OP
channel valid IP address parameters have to be assigned to this by
means of the Siemens SIMATIC Manager. This is called "initializa-
tion".
1. Install your System 300S with your CPU.
2. Wire the system by connecting cables for voltage supply and
signals.
3. Connect the Ethernet jack of the Ethernet PG/OP channel to
Ethernet
4. Switch on the power supply.
ð
After a short boot time the CP is ready for communication.
He possibly has no IP address data and requires an initiali-
zation.
Hardware configuration
of the modules
Parametrization
Maximum 8 modules
addressable
Overview
Assembly and commis-
sioning
VIPA System 300SDeployment CPU 312-5BE13
Hardware configuration - Ethernet PG/OP channel
HB140 | CPU-SC | 312-5BE13 | GB | 15-50 50
