VIPA CPU 312SC - TIA Portal - Hardware configuration - I;O modules

Project area:

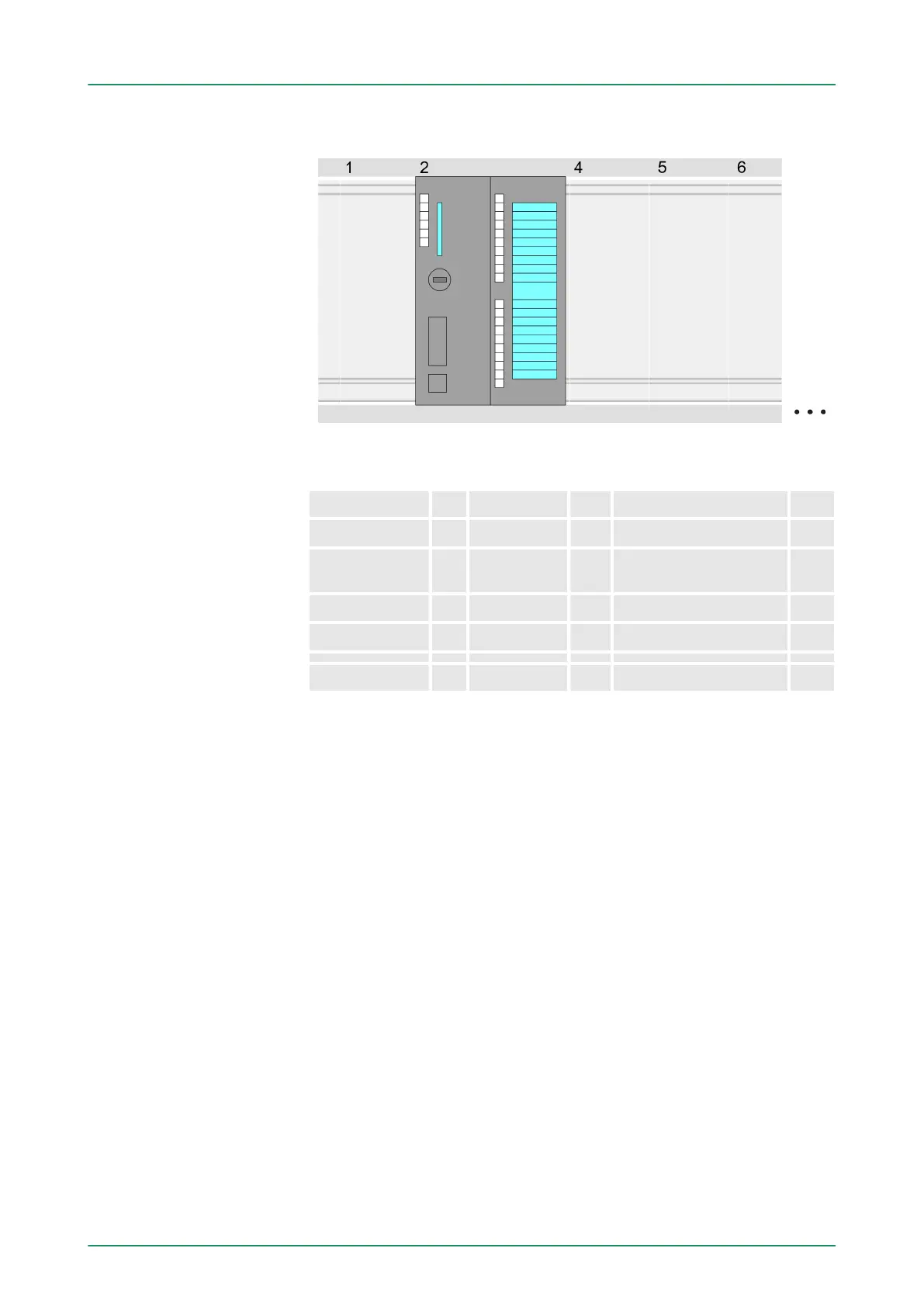

Device overview:
Module ... Slot ... Type ...
PLC ... 2 CPU 312C
MPI inter-
face...
2 0 MPI interface
DI10/DO6... 2 X2 DI10/DO6
Counter... 2 4 Counter
...
Since the CPU 312-5BE13 from VIPA is configured as Siemens CPU
312C, so the parametrization takes place via the Siemens CPU. For
parametrization click in the Project area respectively in the Device
overview at the CPU part. Then the parameters of the CPU part are
shown in the Properties dialog. Here you can make your parameter
settings.
Ä Chapter 5.8 ‘CPU parametrization’ on page 52
9.3 TIA Portal - Hardware configuration - I/O modules
After the hardware configuration of the CPU place the System 300
modules at the bus in the plugged sequence. For this drag&drop the
according module from the Hardware catalog to the according posi-
tion of the profile rail in the Project area or in the Device overview
Setting standard CPU
parameters
Hardware configuration
of the modules
VIPA System 300S Configuration with TIA Portal
TIA Portal - Hardware configuration - I/O modules
