VIPA CPU 312SC - CPU parametrization

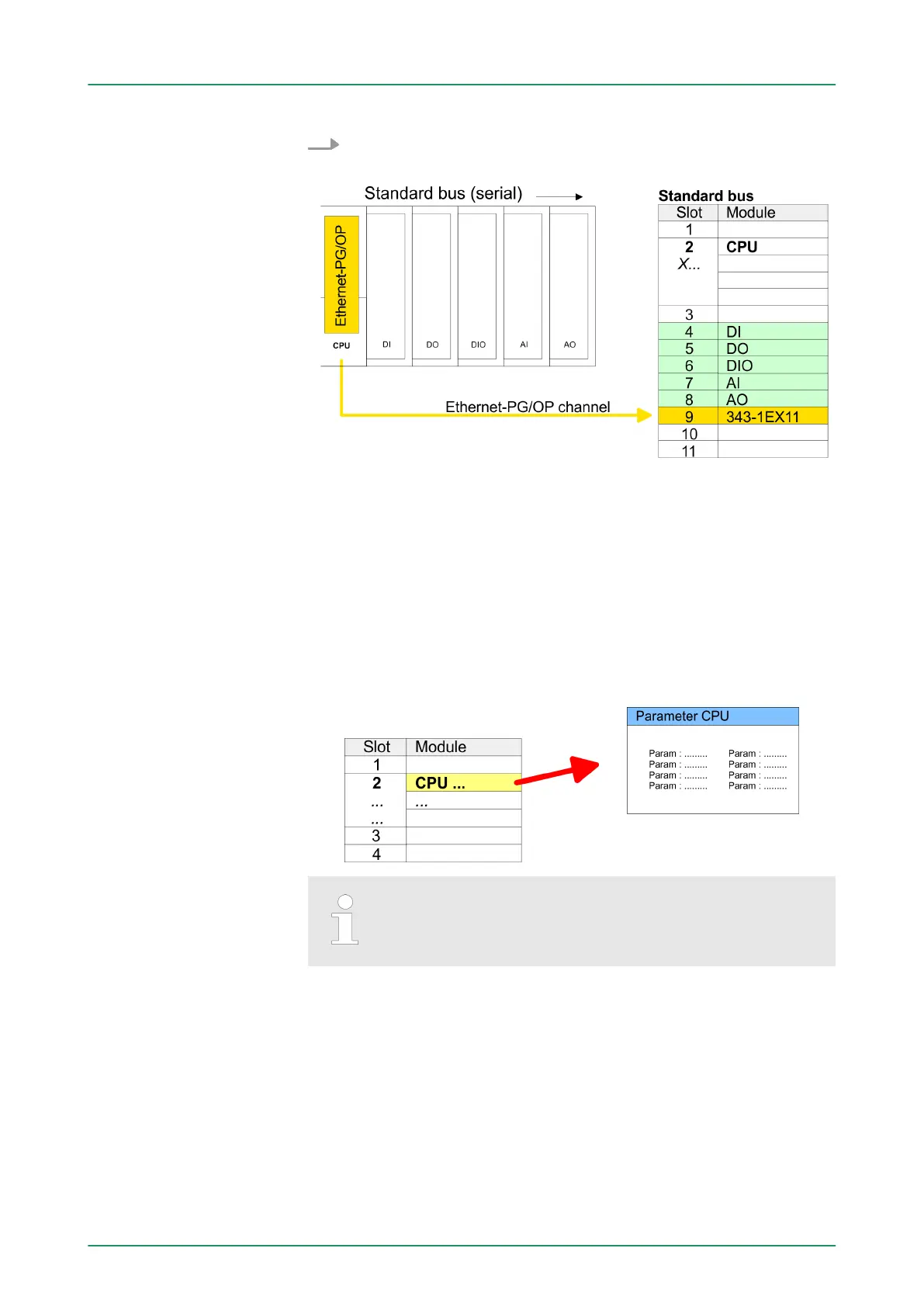

6. Transfer your project.
5.8 CPU parametrization
5.8.1 Parametrization via Siemens CPU
Since the CPU is to be configured as Siemens CPU 312C (CPU
312-5BE03-0AB0 V2.6) in the Siemens hardware configurator, the
parameters of the CPU 312-5BE13 may be set with "Object proper-
ties" of the CPU 312C during hardware configuration. Via a double-
click on the CPU 312C the parameter window of the CPU may be
accessed. Using the registers you get access to every parameter of
the CPU.
Description of the parameters of the sub modules ‘DI10/
DO6’
and ‘Counter’
Ä Chapter 6 ‘Deployment I/O
periphery’ on page 90
5.8.2 CPU parameters
The CPU does not evaluate each parameter, which may be set at the
hardware configuration. The following parameters are supported by
the CPU at this time:
n Short description: The short description of the Siemens CPU
312-5BE03 is CPU 312C.
n Order No. / Firmware: Order number and firmware are identical to
the details in the "hardware catalog" window.
Parameterization via
Siemens CPU 312C
Supported parameters
General
VIPA System 300SDeployment CPU 312-5BE13
CPU parametrization > CPU parameters
HB140 | CPU-SC | 312-5BE13 | GB | 15-50 52
