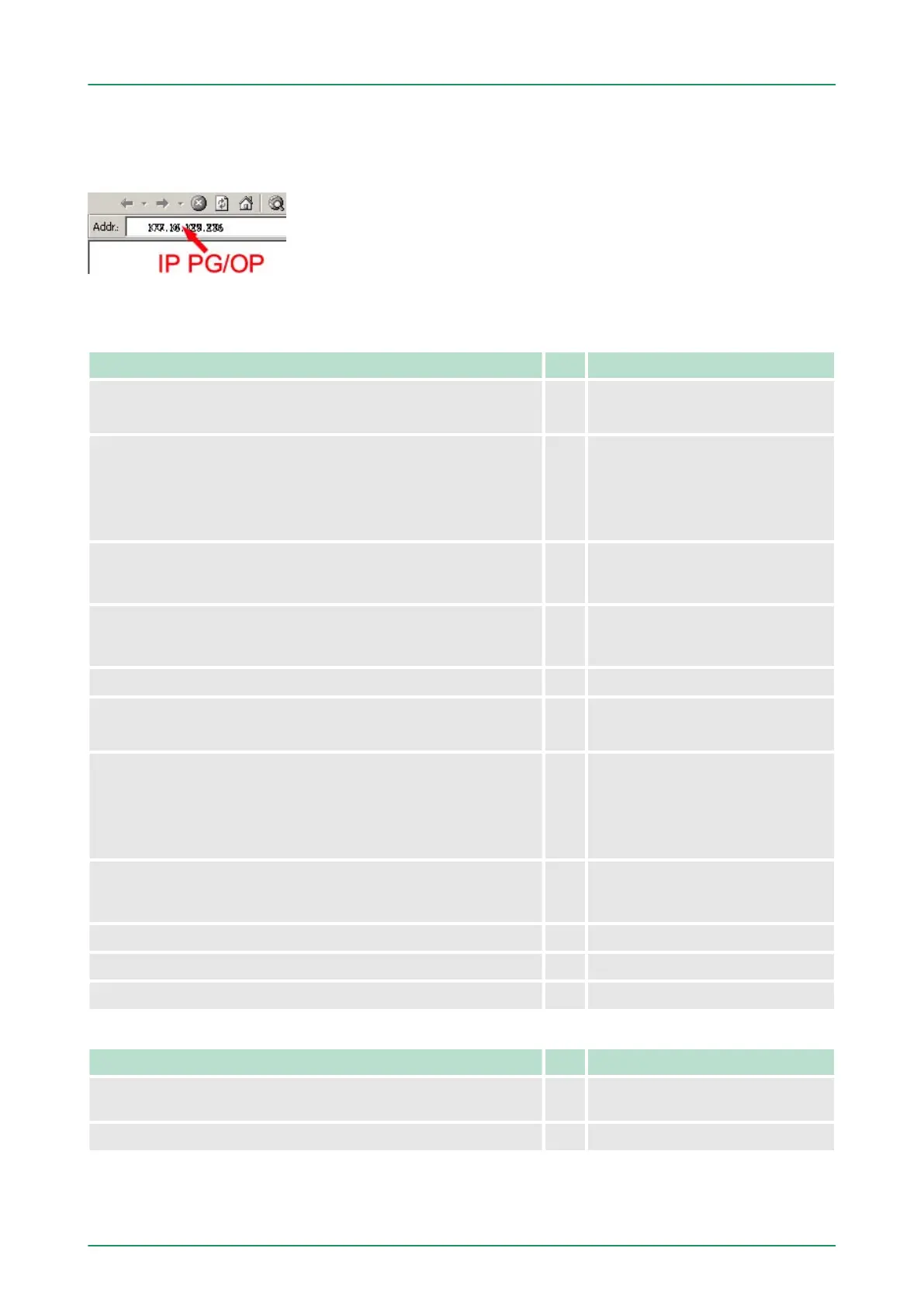

The access takes place via the IP address of the Ethernet PG/OP
channel. The web page only serves for information output. The moni-
tored values are not alterable.
CPU with Ethernet-PG/OP
Slot 100
VIPA 312-5BE13 V.... Px000135.pkg,
SERIALNUMBER 05439
Order no., firmware vers.,
package, serial no.
SUPPORTDATA :
PRODUCT V3420, HARDWARE V0114, 5679H-V20 ,
HX000027.110 , Bx000227 V6420, Ax000086 V1200,
Ax000056 V0220, fx000007.wld V1140, FlashFileSystem :
V102
Information for support
Memorysizes(Bytes):LoadMem:LoadMem : 524288, Work-
MemCode : 26214, WorkMemData : 26214
Information about memory con-
figuration, load memory, work
memory (code/data)
OnBoardEthernet : MacAddress : 0020D50144C1, IP-
Address : 172.20.120.62, SubnetMask : 255.255.255.0,
Gateway : 172.20.120.62
Ethernet PG/OP: Addresses
Cpu state : Run CPU state
FunctionRS485 X2/COM1: MPI
FunctionRS485 X3/COM2: PtP
Operating mode RS485
PtP: point to point operation
Cycletime [microseconds] : min=0 cur=770 ave=750
max=878
CPU cycle time:
min= minimal
cur= current
max= maximal
MCC-Trial-Time: 70:23 Remaining time in hh:mm for
deactivation of the expansion
memory if MCC is removed.
ArmLoad [percent] : cur=67, max=70 Information for support
PowerCycleHxRetries : 29, 0, 0, 0, 0
AutoCompress activated
Slot 202 CPU component: Digital I/Os
VIPA DI16/DO8 V3.2.9,SUPPORTDATA:PRODUCT... Name, firmware version,
module type
SUPPORTDATA: PRODUCT V3290, Module Type ... Information for support
Web page
