Viper AS510B - Wiring Diagram

Key CODE Description
BAT N/A BATTERY
CH VF90227-US CHARGER
EB1 VF90238-1 17" CONTROL CIRCUIT BOARD
EB2 VF90238-2 LED BOARD
ES VF90230 CONTACTOR
EV VF90282 SOLENOLID VALVE
F1 ZD48320 BRUSH CIRCUIT BREAKER
F2 ZD48320 VACUUM CIRCUIT BREAKER
M1 VF90257 20" BRUSH MOTOR
M2 VF90520 VACUUM MOTOR
SW1 VV60153 POWER SWITCH
SW2 VF90252 BRUSH MOTOR SWITCH
SW3 VV60153 VACUUM MOTOR SWITCH
SW4 VV60153 SOLENOLID VALVE SWITCH
HM VF90287 HOUR METER
31

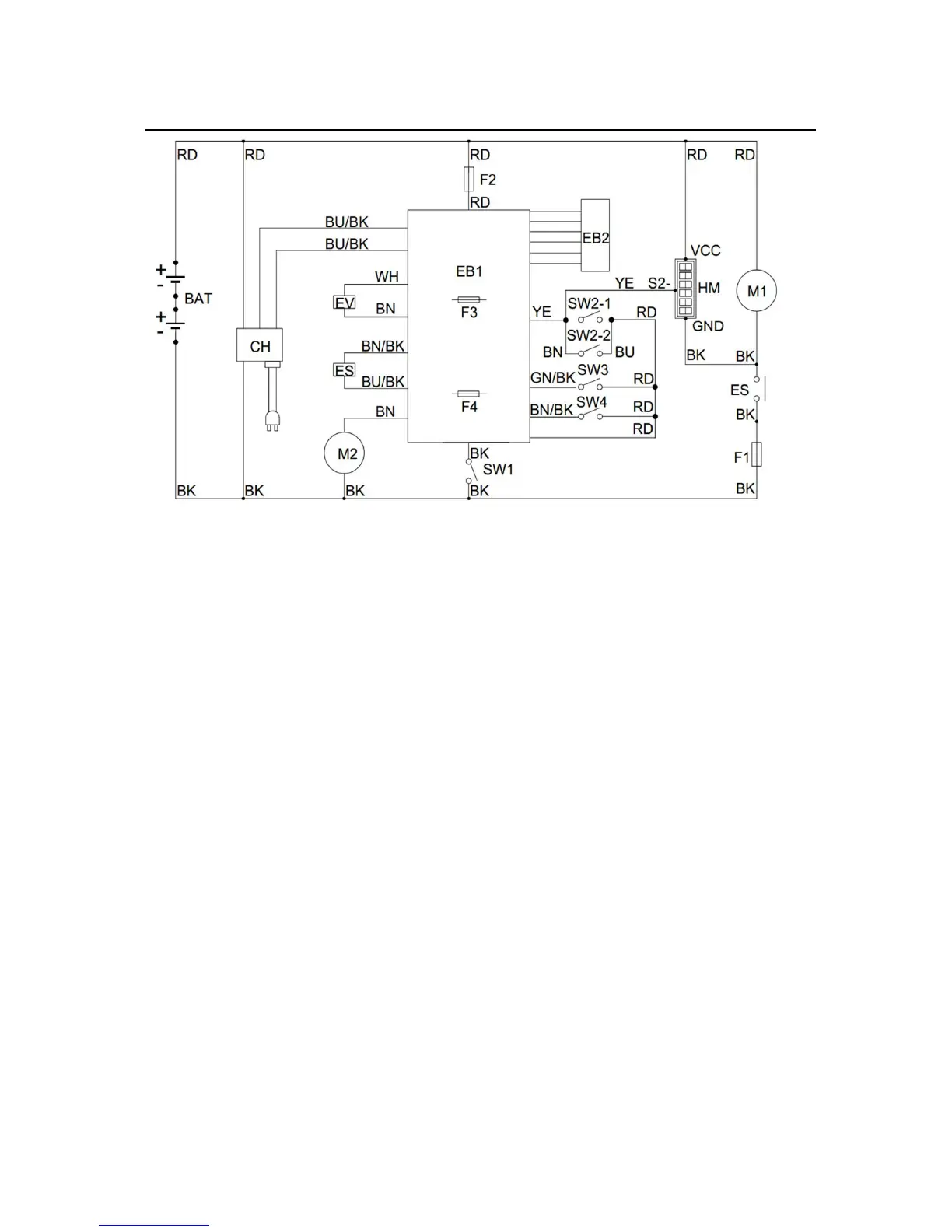

WIRING DIAGRAM
AS510B PART LIST
RD: Red BN: Brown BU/BK : Blue /Black
BU: Blue YE: Yellow GN/BK: Green/Black
BK: Black WH: White BN/BK: Brown/Black
COLORS CODES
