Viper AS510B User Manual

USER MANUAL
8

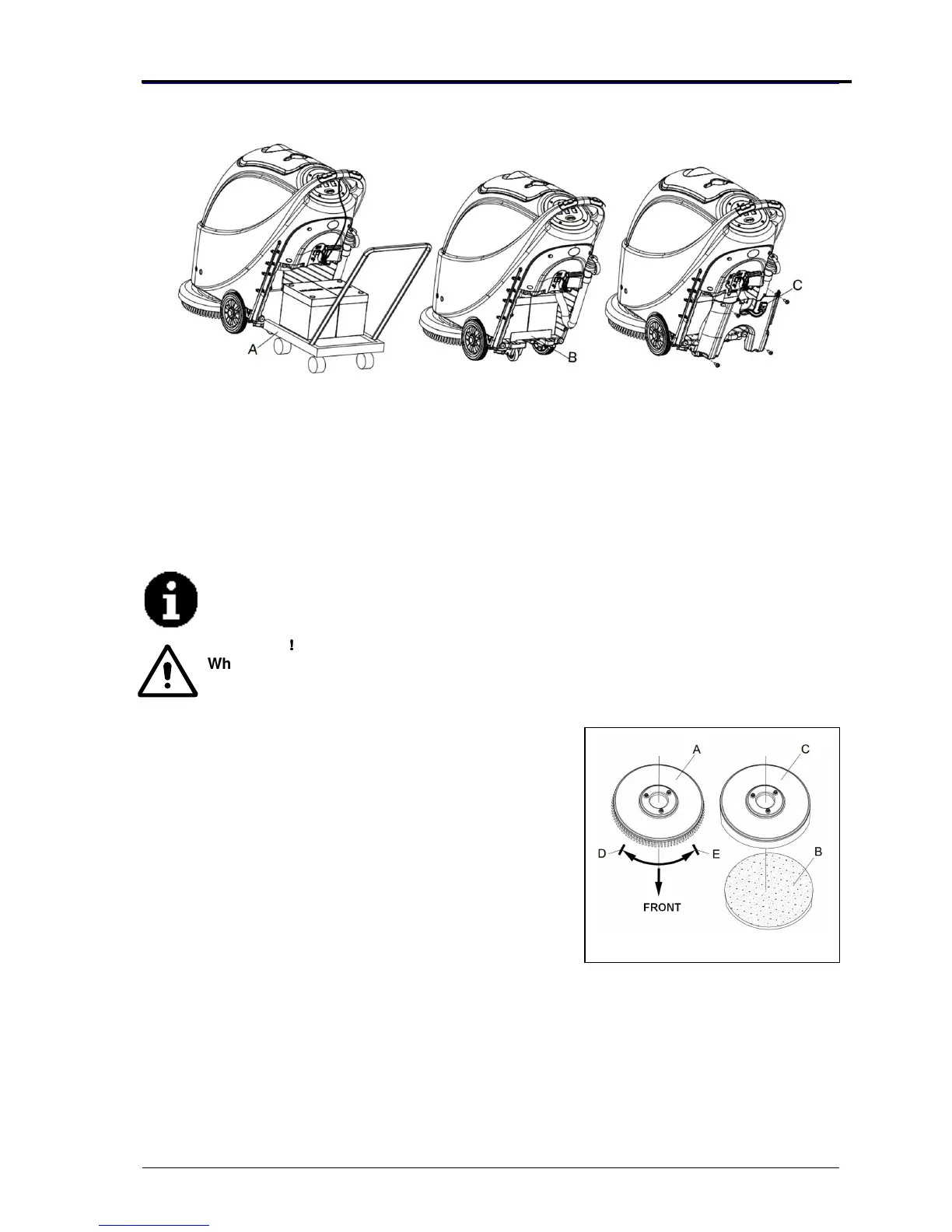

14. Install the battery with specially made battery installation tools (A, Figure 7). After the battery is
installed, remove the battery installation tools, and install the battery fixation bracket (B, Figure 7).
Figure 7
15. Put the battery connector (C, Figure 7) through the hole on the top of the battery box cover, put
the drain hose through the right hole of the battery box cover, attach the battery box cover with
4 screws, and then install the squeegee lift cable, drain hose, and the squeegee successively.
16. To charge the battery (refer to the steps stated in the maintenance section).
BEFORE MACHINE START-UP
BRUSH / PAD-HOLDER INSTALLING AND REMOVAL
NOTE
According to the type of floor to be cleaned, the machine may be installed with brush
(Figure 8, A), or a pad-holder (Figure 8, B and C).
CAUTION ！
！！
！
When manually installing or removing the brush/pad-holder, first ensure that all the
switches are in the “off” position and lift the squeegee off the floor. Only after which
can the brush or pad-holder be worked on. Always wear protective gloves.
1. Make sure the switch (41) is at the disconnecting (Off)
position.
2. Press down the handle (2) to lift the tank body (26).
3. Put the brush (A) or the pad-holder (B – C) under the case.
4. Use the handle (2) to lower the tank body (26) to come
into contact with the brush or pad-holder.
5. Manually attach by following the arrow head (D) to install
the brush/pad-holder (as shown in Figure 8).
6. Remove by turning the brush/pad-holder in the opposite
direction and it can be taken off. (Figure 8)
SQUEEGEE ADJUSTING
7. Install the squeegee and tighten the knobs. Then connect
the vacuum hose to the squeegee assembly..
8. Adjust the squeegee through the adjusting handle (A) of the squeegee (Figure 9).
1) If the
mid-section of the rear squeegee bracket, section B, has a gap with the floor or the
downward pressure is relatively light, adjust the handle in an anti-clockwise direction until the
whole length of the rear squeegee strip touches well with the floor. The front squeegee strip
should lightly touch the floor.
2) If the two ends of the rear squeegee strip, sections C and D, have a gap with the floor or the
downward pressure is relatively light, adjust the handle in a clockwise direction until the whole
length of the rear squeegee strip touches well with the floor. The front squeegee strip should
Lightly touch the floor.
Figure 8
