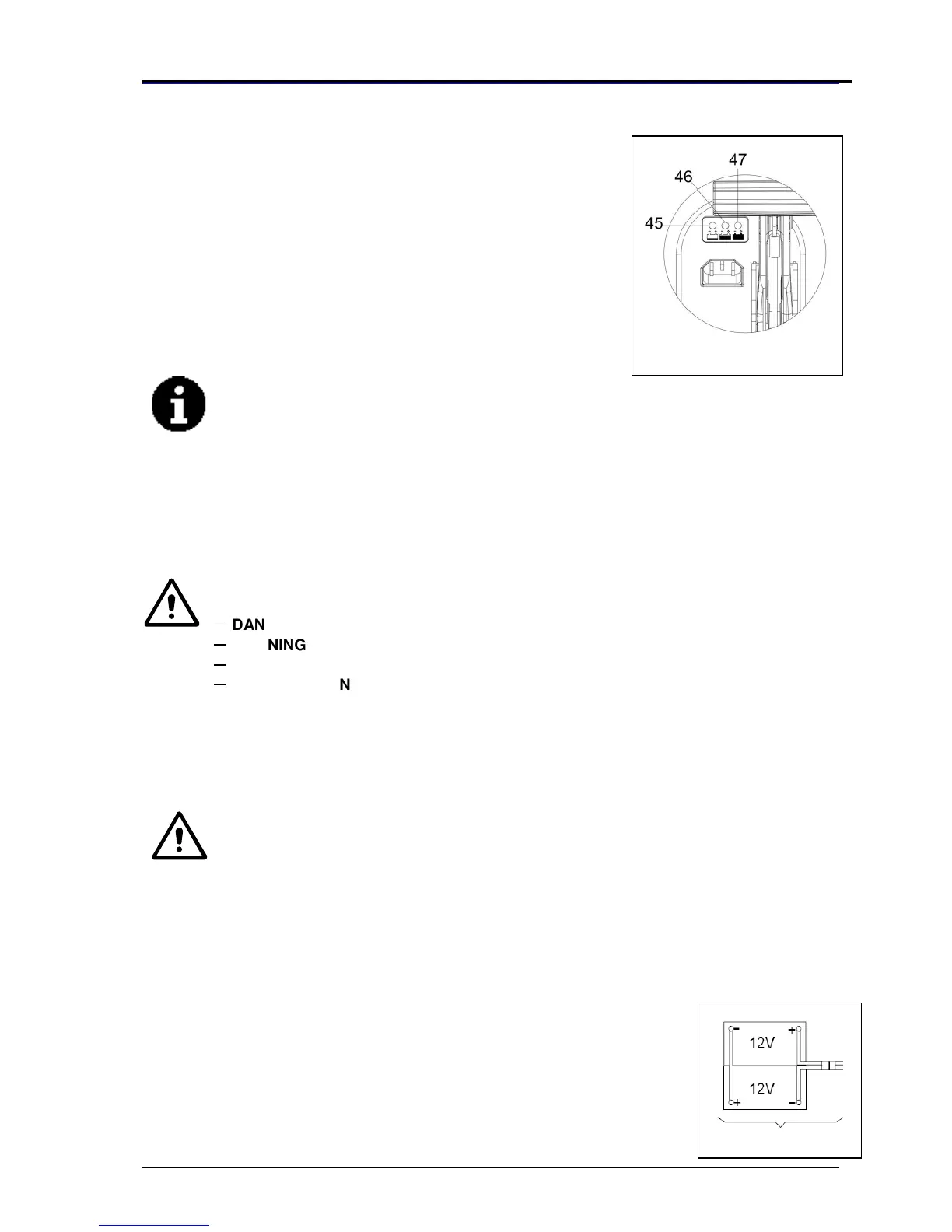

CHARGER INDICATOR LIGHTS (Figure 3)
(Optional, applicable to models with built-in charger)
1. When charging starts, the red indication light (45) flashes a few
times and then steadies to become a permanent red indication
light, entering into the first stage of charging.
2. After charging for a period of time, the red light (45) will go out. A
yellow indication light (46) will light up permanently: entering the
second stage of charging.
3. After charging for approximately 10 hours, the amber indication
light (46) will turn off & the green light (47) will become
permanently lit, indicating that the charge is full, and charging has
ended.
NOTE
1) While charging, if the yellow indication light flashes: the battery is
incompatible with the charger, or the battery is not properly
connected, or a short circuit has taken place at the output terminal.
2) If the red indication light is flashing: a short circuit inside the charger.
(For details, please refer to the related sections in the charger
instruction.)
GUIDE FOR USE
WARNING
On certain parts of the machine are pasted some indicative signs:
－
－－
－
DANGER
－
－－
－
WARNING
－
－－
－
CAUTION
－
－－
－
CONSULTATION
When reading this manual, the operator must pay particular attention to the symbols on these labels.
Under no circumstances shall these labels be covered. If they are damaged, please replace them
immediately.
BATTERY INSTALLATION
WARNING
If the batteries are incorrectly installed or inaccurately connected, the
electric components of the machine may be seriously damaged. The batteries
may only be installed by qualified personnel. According to the battery model
number (WET or GEL) being used, set the functional circuit board and on-
board charger (optional).
Please check if the battery is damaged before installing.
Disconnect the battery connector and the on-board charger plug.
Be careful when touching the battery.
This machine requires two (2) 12V batteries. Either wet or GEL / AGM batteries
can be used. Please connect as shown in Figure 4 to the right.
1. Check the batteries. Ensure the connector (9) is connect to the battery
pack.
2. Press the on / off switch (41) into the “on” position. If the green light is on,
that indicates the batteries are ready for use.
If the amber or red light is on, that indicates the batteries need charging.
(Please refer to the section on maintenance for related procedures)
