Viper AS5160 - Wiring Diagram (Only for Disc Machine With Traction)

USER MANUAL
ENGLISH
10

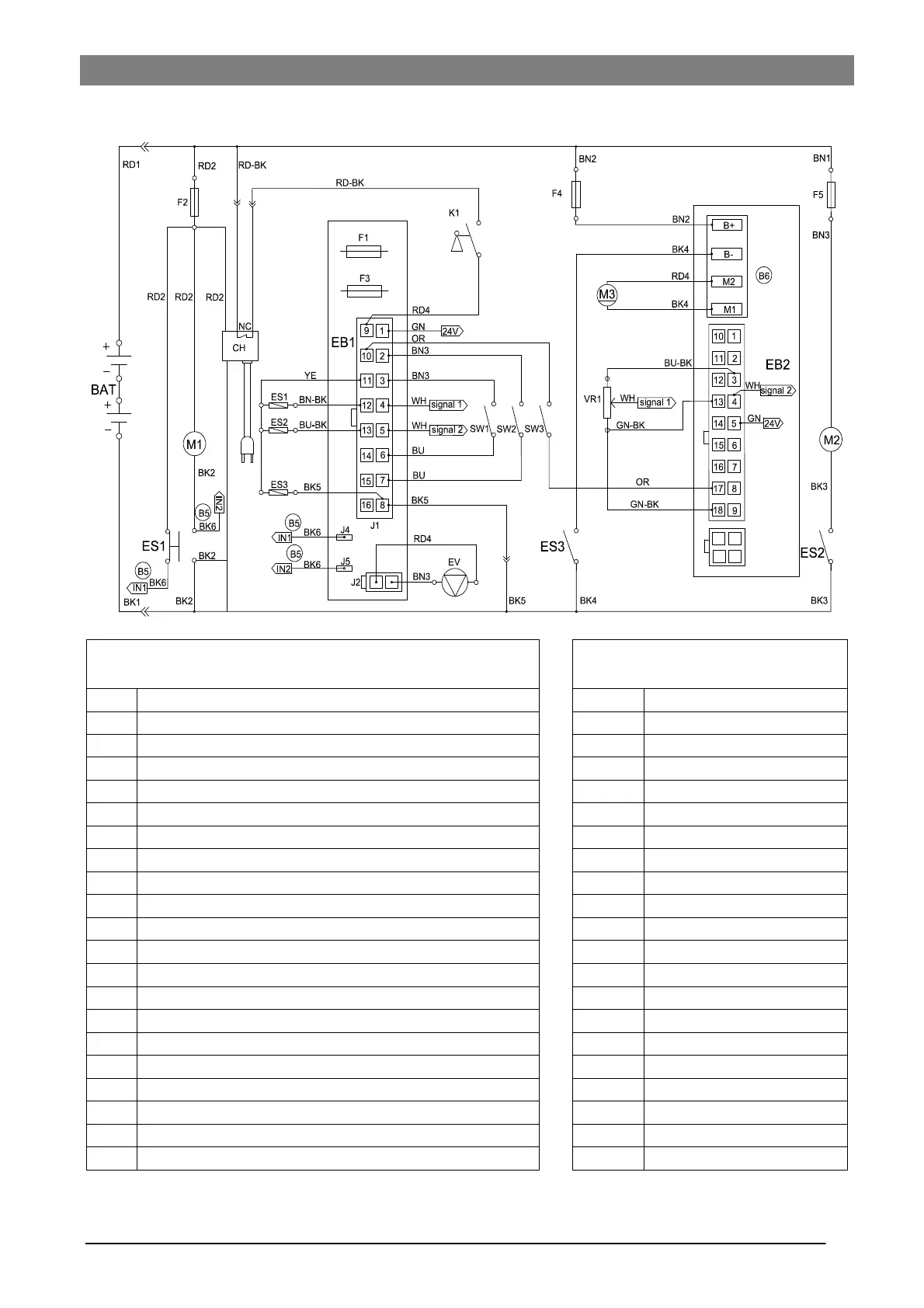

WIRING DIAGRAM (ONLY FOR DISC MACHINE WITH TRACTION)
COMPONENTS
GAUGE
BAT
24V BATTERIES
RD1
RED/6AWG
CH
BATTERY CHARGER
RD2
RED/10AWG
EB1
CONTROL PANEL BOARD
RD4
RED/20AWG
EB2
ELECTRONIC BOARD (TRACTION SYSTEM)
BK1
BLACK/6AWG
ES1
ELECTROMAGNETIC SWITCH 24V (BRUSH MOTOR)
BK2
BLACK/10AWG
ES2
RELAY 24V (VACUUM MOTOR)
BK3
BLACK/12AWG
ES3
RELAY 24V (TRACTION SYSTEM)
BK4
BLACK/14AWG
F1
LOW POWER CIRCUIT FUSE
BK5
BLACK/20AWG
F2
CIRCUIT BREAKER (BRUSH MOTOR)
BK6
BLACK/16AWG
F3
BRUSH RELEASE FUSE
RD-BK
RED-BLACK/20AWG
F4
CIRCUIT BREAKER (TRACTION SYSTEM)
GN
GREEN/20AWG
F5
CIRCUIT BREAKER (VACUUM MOTOR)
GN-BK
GREEN-BLACK/20AWG
K1
KEY SWITCH
BN1
BROWN/12AWG
M1
BRUSH MOTOR
BN2
BROWN/14AWG
M2
VACUUM MOTOR
BN3
BROWN/20AWG
M3
DRIVE MOTOR
BN-BK
BROWN-BLACK/20AWG
EV
SOLENOID VALVE
BU
BLUE/20AWG
SW1
SAFETY SWITCH (BRUSH/TRACTION)
BU-BK
BLUE-BLACK/20AWG
SW2
SAFETY SWITCH (BRUSH/TRACTION)
OR
ORANGE/20AWG
SW3
REVERSING SWITCH
YE
YELLOW/20AWG
VR1
SPEED POTENTIOMETER
WH
WHITE/20AWG
