Visonic POWERMAX PRO Installer's Guide

30 D-302541
USER SETTING
ENTER CODE
1. NEW INSTL CODE
2. ENROLLING
3. DEFINE ZONES
5. DEFINE COMM
[installer code]
INSTALLER MODE
4. DEFINE PANEL
COMMUNICATING TEL # NOT DEFINED
DOWNLOADING DIAL ATTEMPT FAIL
DOWNLOAD OK DOWNLOAD FAILED
Displayed during
dialing process
Displayed for half
a minute approx.
accompanied by sad
(failure) melody
If UL/DL server
tel. # was not
defined before
(see par. 4.5.34)
If UL/DL server
tel. # is already
defined (see
par. 4.5.34)
Dialing
OK
Dialing
failed
Download
OK
Download
failed
Displayed during
download process
Displayed for half
a minute approx.
accompanied by sad
(failure) melody
Displayed for half
a minute approx.
accompanied by sad
(failure) melody
Displayed for half
a minute approx.
accompanied by happy
(success) melody
8. DEFINE OUTPUTS
9. DEFINE VOICE
10. DIAGNOSTICS
11. USER SETTINGS
12. FACTORY DEFLT
13. SERIAL NUMBER
14. START UL/DL
<OK> TO EXIT
READY 00:00
P1 RDY 00:00
Non-Partition
mode
Partition
mode
WALK TEST
READY
(First display)

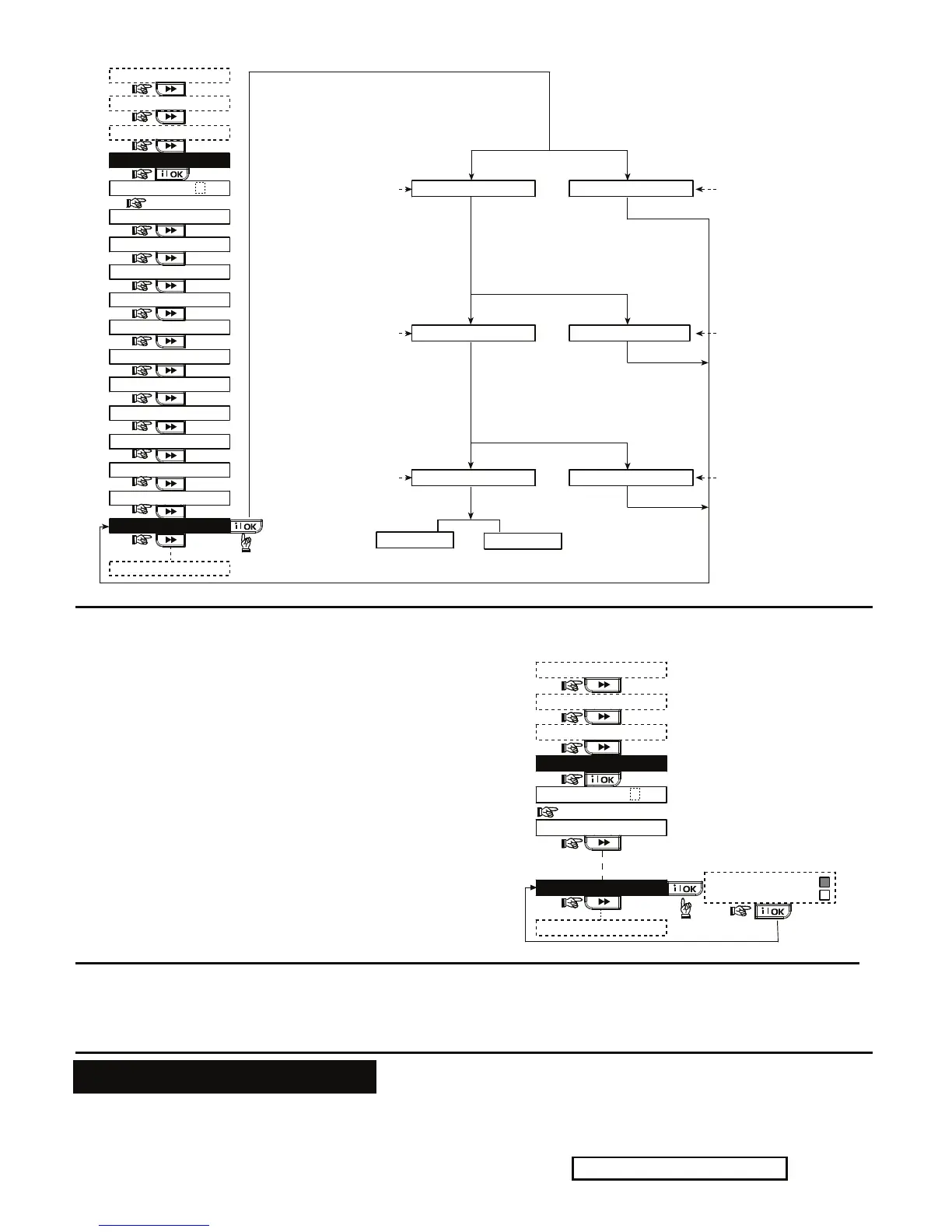

Figure 4.14 – Start UL/DL
4.15 ENABLING/DISABLING PARTITIONS
This mode allows you to enable/disable the partitioning
feature. Partitioning allows you to divide the system into a
maximum of three independently controllable areas.
A different user code is assigned to each partition or one
user code is assigned to all partitions in order to limit or
control access to each area. A partition can also be armed
or disarmed regardless of the status of the other partitions
within the system.
When the partition feature is disabled, zones, user codes
and features will operate the same as in a regular
PowerMax Pro unit. When partition is enabled, menu
displays are changed to incorporate the partition feature.
15. PARTITIONING
USER SETTING
ENTER CODE
1. NEW INSTL CODE
INSTALLER MODE
[inst. code]
<OK> TO EXIT
enable
disable
WALK TEST
READY
(First display)
Figure 4.15 – Partitioning
4.16 WALK-TEST
This mode (see Figure 4.1a) provides you with the means
to conduct a periodic test, via the walk-test menu, at least
once a week and after an alarm event.
5. TESTING PROCEDURES
Note: The system is intended to be checked by a qualified
technician at least every 3 years.
5.1 Preparations
Make sure all windows and doors are closed and all zones
are secured (undisturbed).
READY HH:MM

Visonic POWERMAX PRO Specifications

General

Wireless Frequency	868 MHz
Communication	PSTN
Siren Output	12V DC, 500mA
Remote Control	Yes
Wireless Range	Up to 200 meters in open space
Operating Temperature	0°C to 49°C
Humidity	85% non-condensing
