Visonic POWERMAX PRO Installer's Guide

D-302541 9

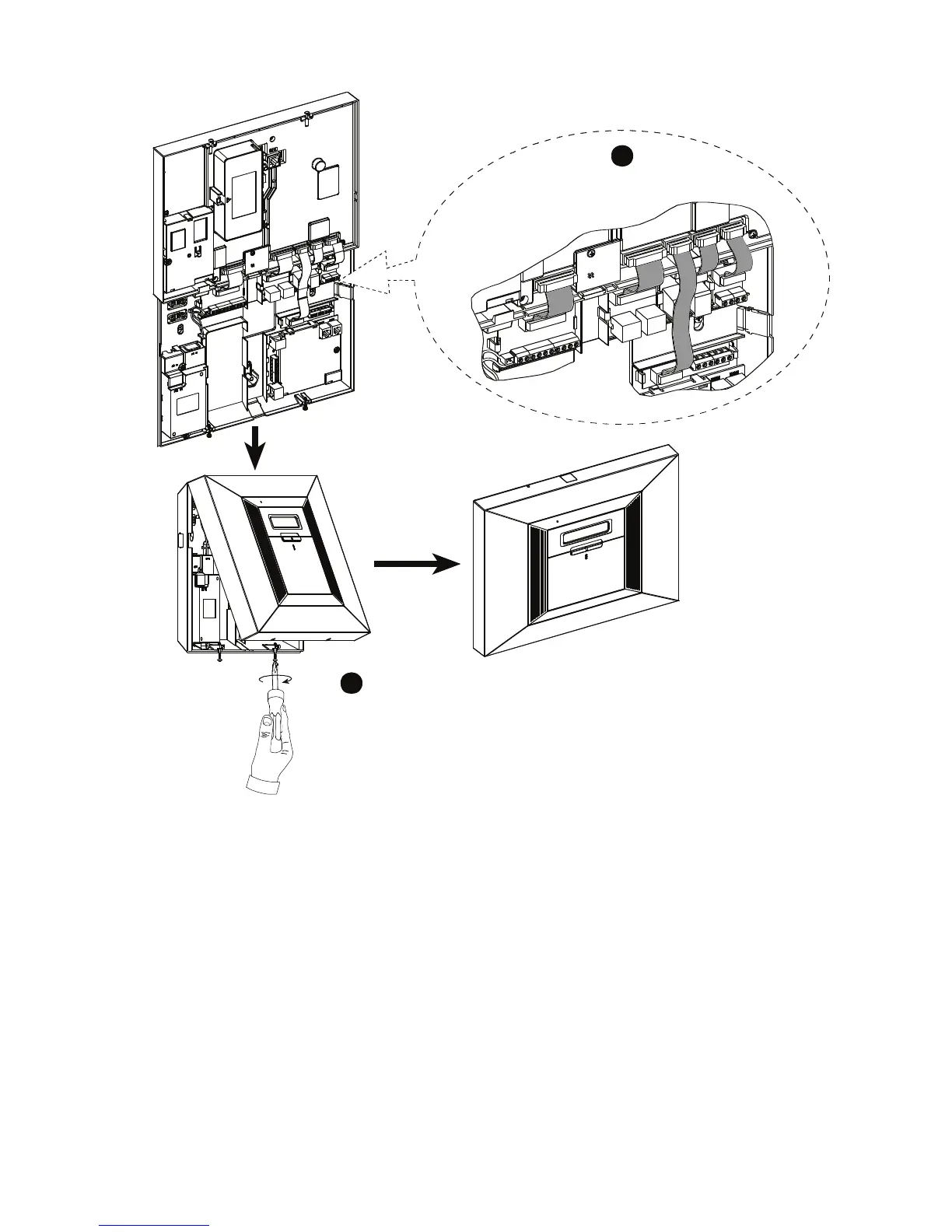

3.7 Final Closure
Connect the flat cables in their respective
connectors (2 - 5, according to options).
1
Front
unit
Back
unit
2
Close the panel and
fasten the 2 screws.
Figure 3.1k - Final Closure

Visonic POWERMAX PRO Specifications

General

Wireless Frequency	868 MHz
Communication	PSTN
Siren Output	12V DC, 500mA
Remote Control	Yes
Wireless Range	Up to 200 meters in open space
Operating Temperature	0°C to 49°C
Humidity	85% non-condensing
