38 D-302541
If any of these detectors detects motion, it sends out a
message to the alarm control panel. If the system is in the
armed state, an alarm will be triggered.

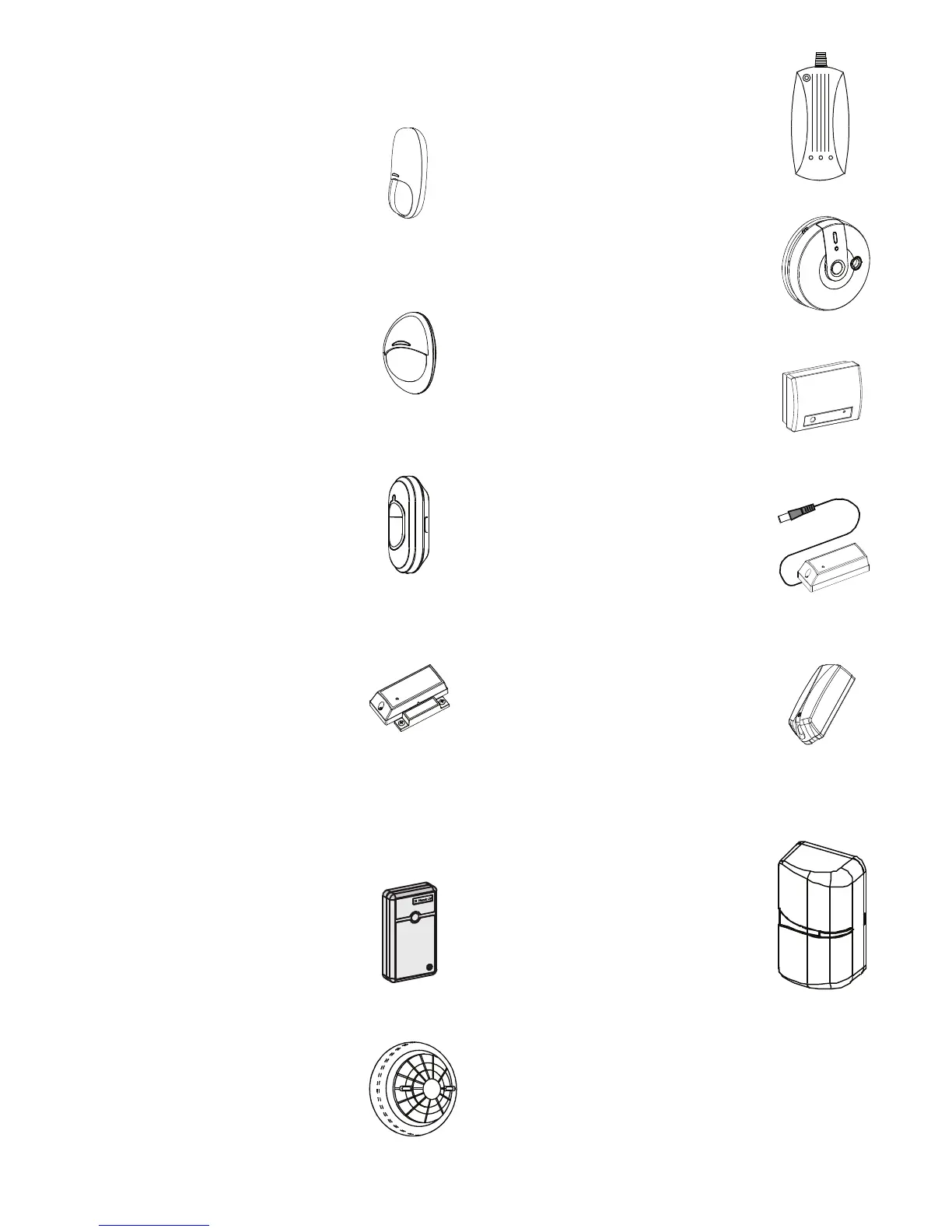

Wireless PowerCode Infrared
Detector CLIP MCW. A curtain-pattern
PIR detector for indoor use and designed
for easy installation. An advanced motion
analysis method allows the CLIP MCW to
distinguish between the true motion of the
human body and any other disturbances
that cause false alarms. After detection,
the detector disarms itself to save battery
power. It rearms (reverts to the ready
state) if there is no subsequent detection
throughout the following 2-minute period.
CLIP MCW
Dual technology anti-masking
NEXT PLUS Detectors.
The NEXT
PIR is a microprocessor-controlled PIR
detector, designed for easy installation,
free of vertical adjustment. It features a
cylindrical lens with uniform detection
sensitivity of up to a distance of 15 meters
(49 ft) from the detector.
NEXT PLUS
Wireless PowerCode PIR Detector
TOWER 40. A microprocessor-controlled
wireless digital PIR detector, designed for
easy installation, free of vertical adjustment.
It features parabolic and cylindrical mirrors
with uniform detection sensitivity throughout
its operating range, up to 18 meters (59 ft),
with creep zone protection. An advanced
True Motion Recognition™ algorithm
(patented)
allows the TOWER 40 to
distinguish between the true motion of an
intruder and any other disturbances which
may cause false alarms.
TOWER 40
B. Magnetic Contact Transmitter
MCT-302 is a PowerCode magnetic-
contact transmitter used to detect the
opening of a door or a window.
The alarm
contacts are closed as
long as the door or
window remains
closed.
MCT-302
The unit has an extra alarm input that acts as if it were a
separate wireless transmitter. It sends (or does not send) a
“restored to normal“ message to the alarm system,
depending on the setting of an on-board “DIP” switch. The
“restore” message informs you, through the control panel’s
display, whether the door or window is open or closed.
C MCT-100 Wireless Adapter for
Wired Detectors. MCT-100 is a
PowerCode device used mainly as a
wireless adapter for 2 regular magnetic
switches installed on 2 windows in the
same room. It has two inputs, behaving as
separate wireless transmitters with different
PowerCode IDs. Each input sends (or does
not send) a “restored“ message to the
alarm system, depending on the setting of
an on-board “DIP” switch.
MCT-100
D. Wireless Smoke Detector
MCT-425. A photoelectric smoke
detector equipped with a PowerCode-
type transmitter. If enrolled to a fire zone,
it initiates a fire alarm upon detection of
smoke.
MCT-425
E. Wireless PowerCode Gas
Detector MCT-441. A natural gas
detector designed to send an alarm when
Methane gas is detected. The detector can
be used in a house, apartment, caravan,
mobile home or yacht. The detector can
send the following messages to the alarm
control panel: Gas alarm, gas sensor failure,
AC power failure and low battery voltage.
MCT-441
F. Indoor Wireless CO Gas
Detector MCT-442. The carbon
monoxide (CO) detector is designed to
monitor the CO gas level in residential
dwellings and give early warning before
potentially dangerous levels exist. The
CO alarm is transmitted to the alarm
control panel and presented on its
display.
MCT-442
G. Glass Break Detector MCT-501
An acoustic detector equipped with a
PowerCode-type transmitter. Since it
restores automatically after detection, this
unit does not send a restoral message to
the control panel.
MCT-501
H. Wireless PowerCode Flood
Detector MCT-550.
The flood detector
is used to detect the presence of water
based fluids at any desired location. Upon
flood detection, a digital message is
transmitted, composed of the detectors’
PowerCode ID followed by various status
and other messages. Alarm and other
data are thus forwarded to the alarm
control panel.
MCT-550
I. Wireless temperature detector
MCT-560. Fully supervised wireless
PowerCode temperature detector. Can be
enrolled to monitor change in temperature.
The detector alerts the control panel upon
detecting critical indoor or outdoor
temperatures. The detector generates an
alarm message when its sensor detects that
the temperature has reached a certain
temperature point. A restore message is
generated when it crosses back the
threshold temperature point.
MCT-560
J. Contact transmitter MCT-320.
MCT-320 is a fully supervised,
PowerCode magnetic contact transmitter,
for use with PowerCode products. The
transmitter includes a built-in reed switch
(that opens upon removal of a magnet
placed near it). The MCT-320 tamper
switch is activated when the cover is
removed or when the detector is removed
from the wall. A periodic supervision
message is transmitted automatically. The
target receiver is thus informed, at regular
intervals, of the unit’s active participation
in the system.
MCT-320
E2 Compatible Transmitters
The PowerMax Pro system is compatible with multi-button
and single button key-ring and hand-held transmitters that
use PowerCode and CodeSecure coding methods.
