VISUAL TECHNOLOGY INCORPORATED, 540 MAIN STREET, TEWKSBURY, MA 01876
7.8 110/220 VOLT SELECTION
Remove the rear panel and logic PCB. MAKE SURE THE LINE CORD IS DISCON-
NECTED! Refer to Figure 7-4 for new connection. 220 volt units are provided with two
inputs, 220 volts nominal, and 250 volts nominal. The highest input resulting in satisfactory
operation should be used.
11 av
OR
WHT/BRN
0
BLK
BLK
0
TO
TO SWITCH
TRANSFORMER
0
WHT/BLK
0
WHT
WHT
220V
HIGH LINE (250 nom)
OR
------}
0
BLK
WHT/BRN
LOW~~ (220~o~)
0
TO
WHT/BLK
TO
TRANSFORMER
SWITCH
0
BLK
0
WHT
WHT

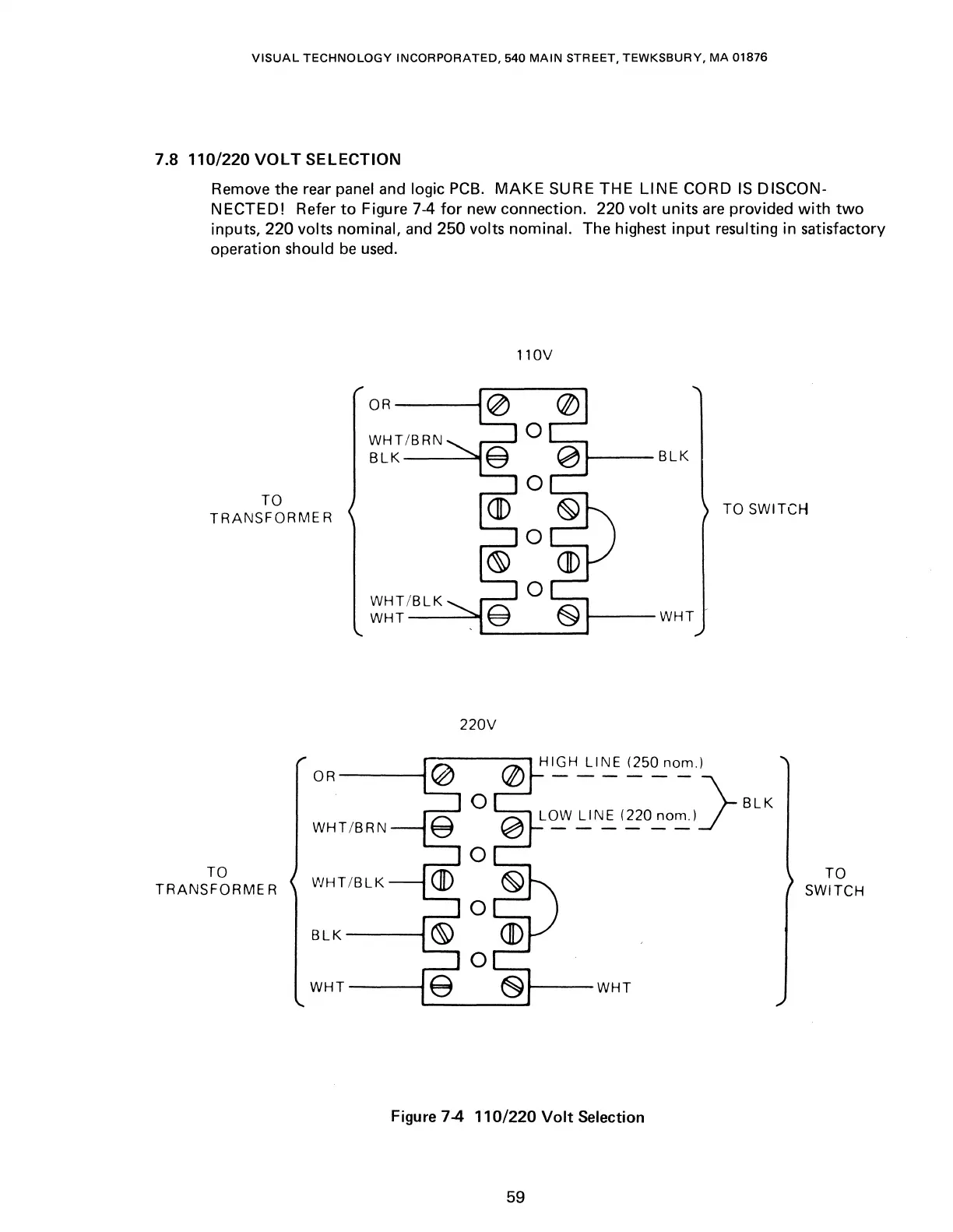

Figure 7-4 110/220 Volt Selection
59
