VISUAL 100 - Appendix V -Turn-Around Connector for Interface Tests

VISUAL TECHNOLOGY INCORPORATED, 540 MAIN STREET, TEWKSBURY, MA 01876

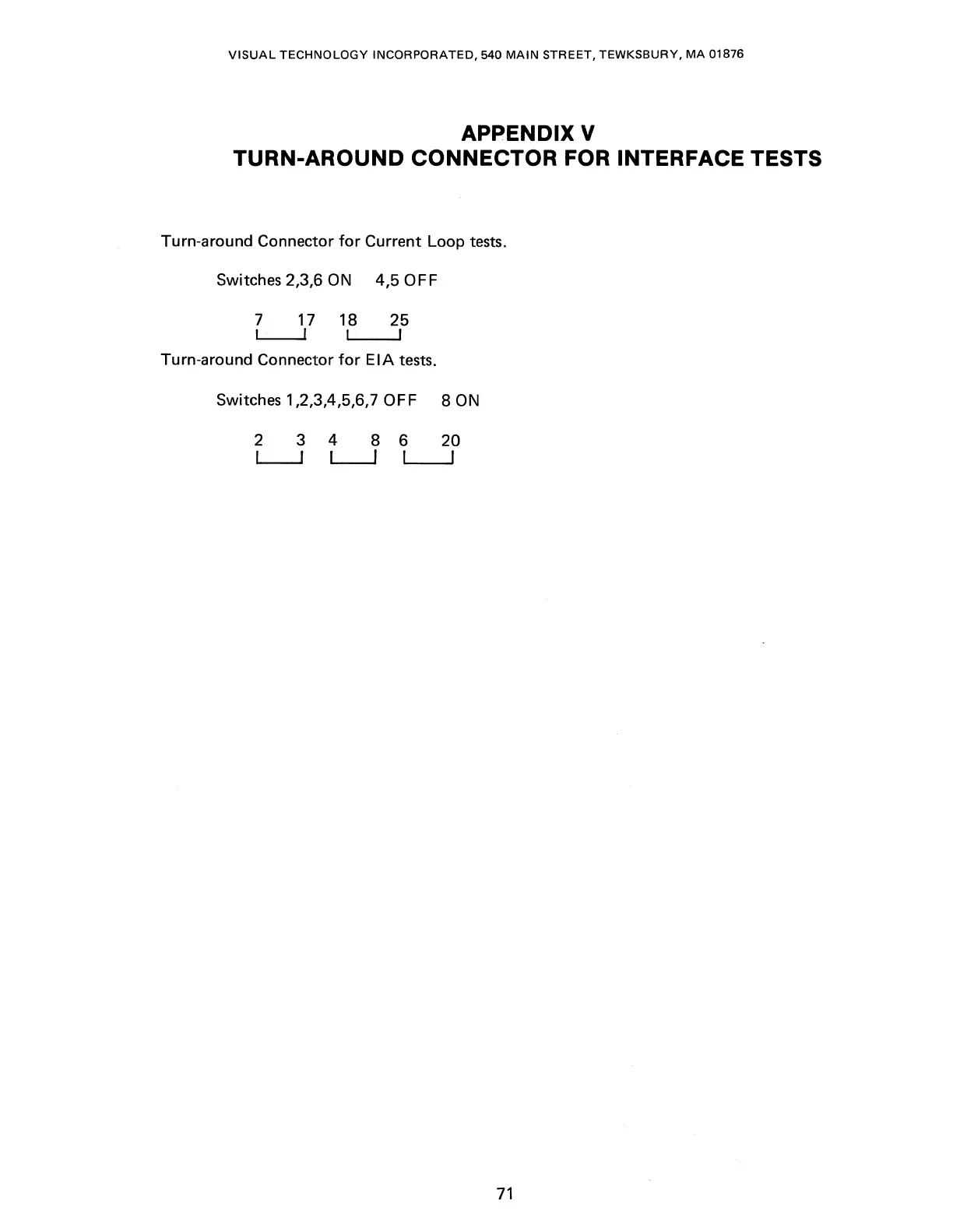

APPENDIX V
TURN-AROUND CONNECTOR FOR INTERFACE TESTS
Turn-around Connector for Current Loop tests.
Switches 2,3,6 ON 4,5 OFF
7 17 18 25
'~-' ._I _ __,I
Turn-around Connector for EIA tests.
Switches 1,2,3,4,5,6,7 OFF 8 ON
2 3 4 8 6 20
L__J L___J I I
71
