2.5 - POWER SUPPLY
Schematics & Parts mySelective.com
CHAPTER 2 7
2.5 POWER SUPPLY

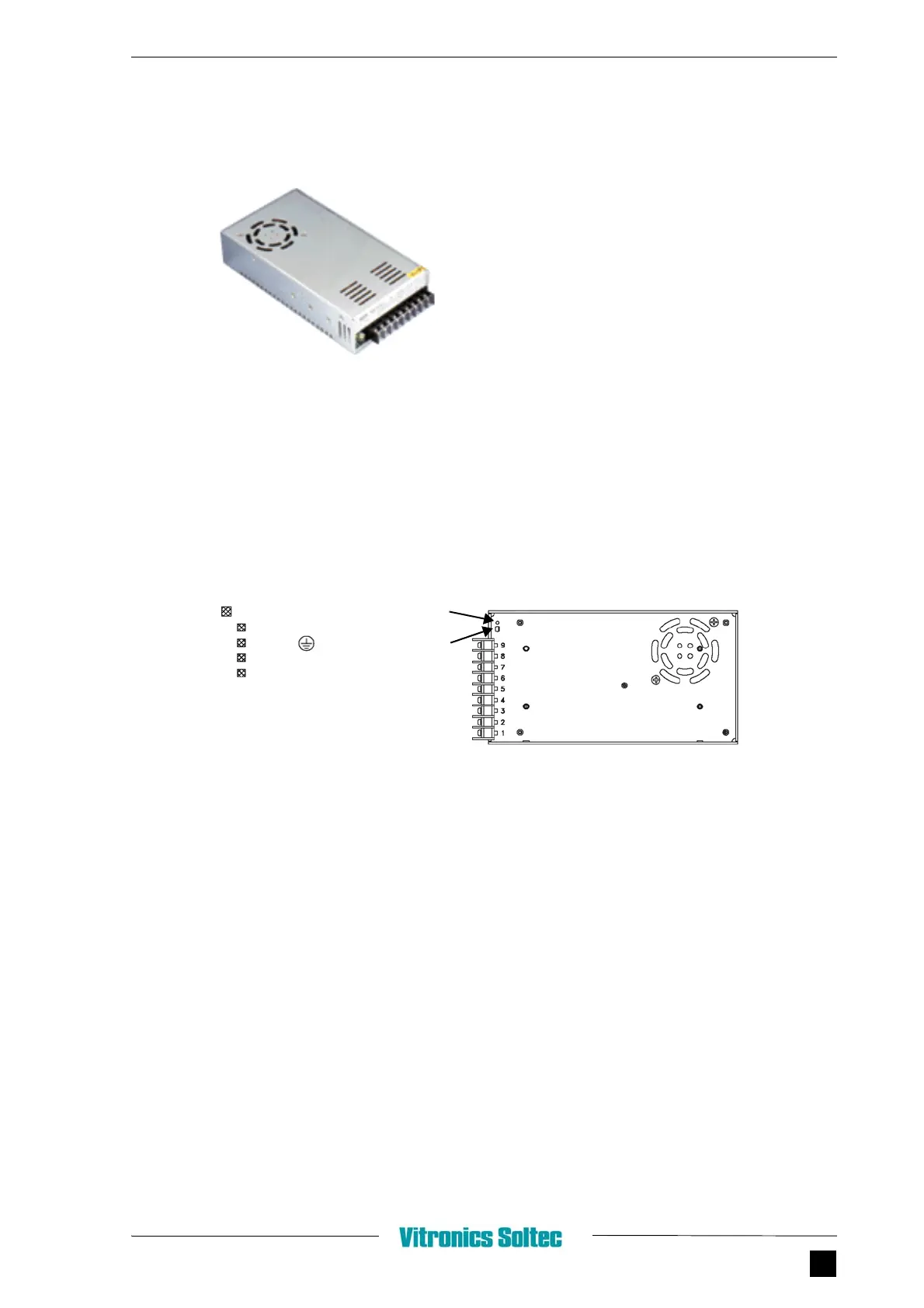

FIGURE 2.8 POWER SUPPLY
Part nr. 42939
Description Power supply SP320-24 24V 13A
D2 Main controlbox
2.5.1 ADJUSTMENT POWER SUPPLY
FIGURE 2.9 ADJUSTMENT POWER SUPPLY
Voltage adjustment under
load on 24VDC
LED
ADJUST
TERMINAL PIN NO. ASSIGNMENT
PIN 1,2: AC INPUT
PIN 3 : FG
PIN 4,5,6: DC OUTPUT -V
PIN 7,8,9: DC OUTPUT +V
