2.14 - SENSORS PNEUMATIC CYLINDERS - TYPE 2
Schematics & Parts mySelective.com
CHAPTER 2 17
2.14 SENSORS PNEUMATIC CYLINDERS - TYPE 2

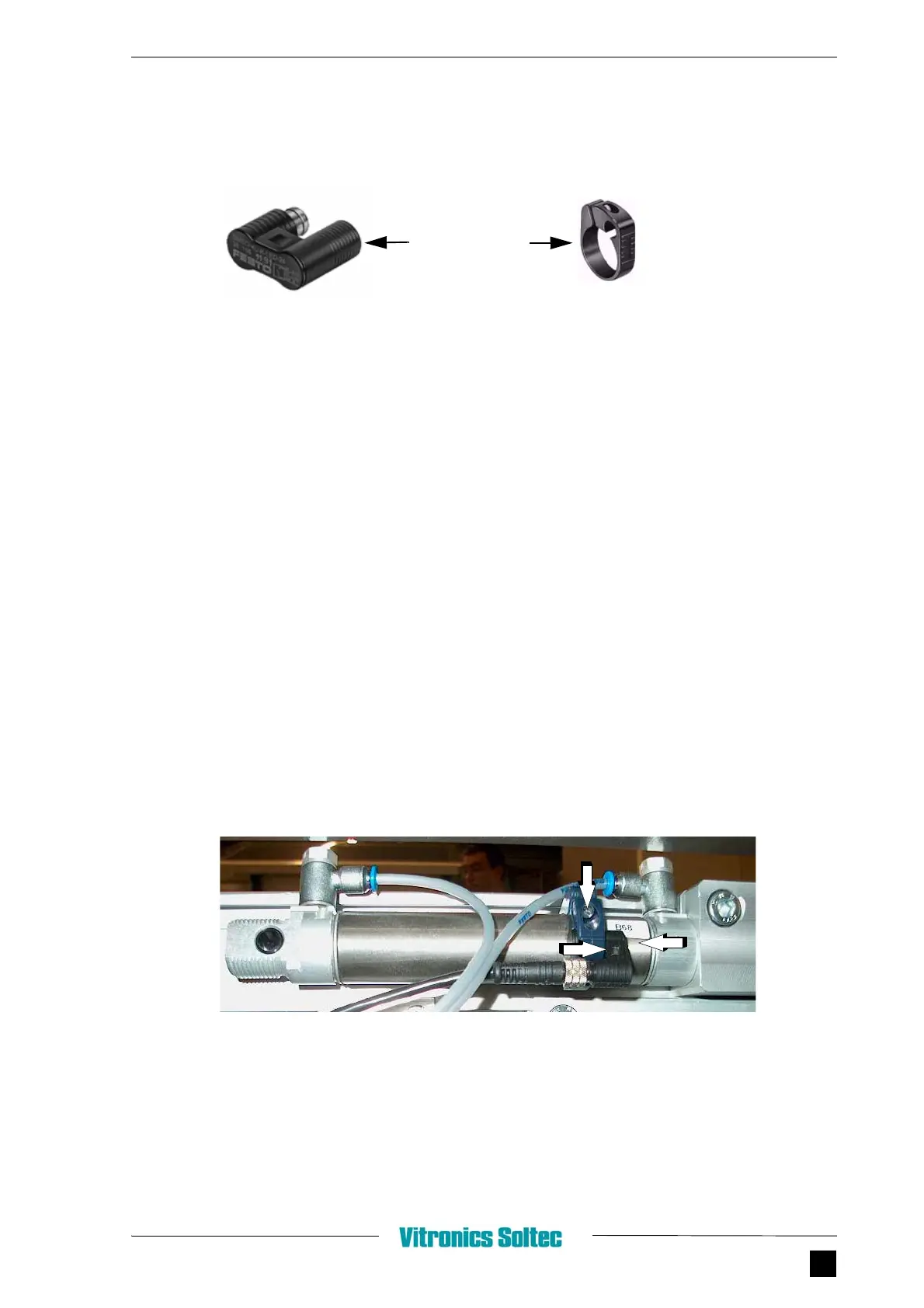

FIGURE 2.24 MAGNETICALLY ACTUATED PROXIMITY SENSORS
Part nr. 41772
Description Sensor magnetic reed Festo SMEO-4U-S-LED-24B
B82 SecureGrip tilting A
B87 Wave pin up
B88 Wave pin down
Part nr. 41771
Description Sensor mounting kit SMBR-25 Festo 19277
2.14.1 ADJUSTMENT PROCEDURE SENSORS LIFTING UNIT TRANSPORT SYSTEM
1. Set lifting unit transport in up position in TeachScreen (PC program).
2. Slight sensor on cylinder direction (A) till the sensor is activated, led (B) lights up.
See Figure 2.25.
3. Fasten sensor (C). See Figure 2.25.
FIGURE 2.25 LIFTING UNIT TRANSPORT SYSTEM
Mounting bracket
41772 + 41771
A
B
C
