PARTS
18 CHAPTER 2
2.14.2 ADJUSTMENT PROCEDURE SENSOR SECUREGRIP
1. Set SecureGrip in horizontal position in TeachScreen (PC program).
2. Slight sensor on cylinder direction (A) till the sensor is activated, led (B) lights up.
See Figure 2.26
3. Fasten sensor (C). See Figure 2.26.

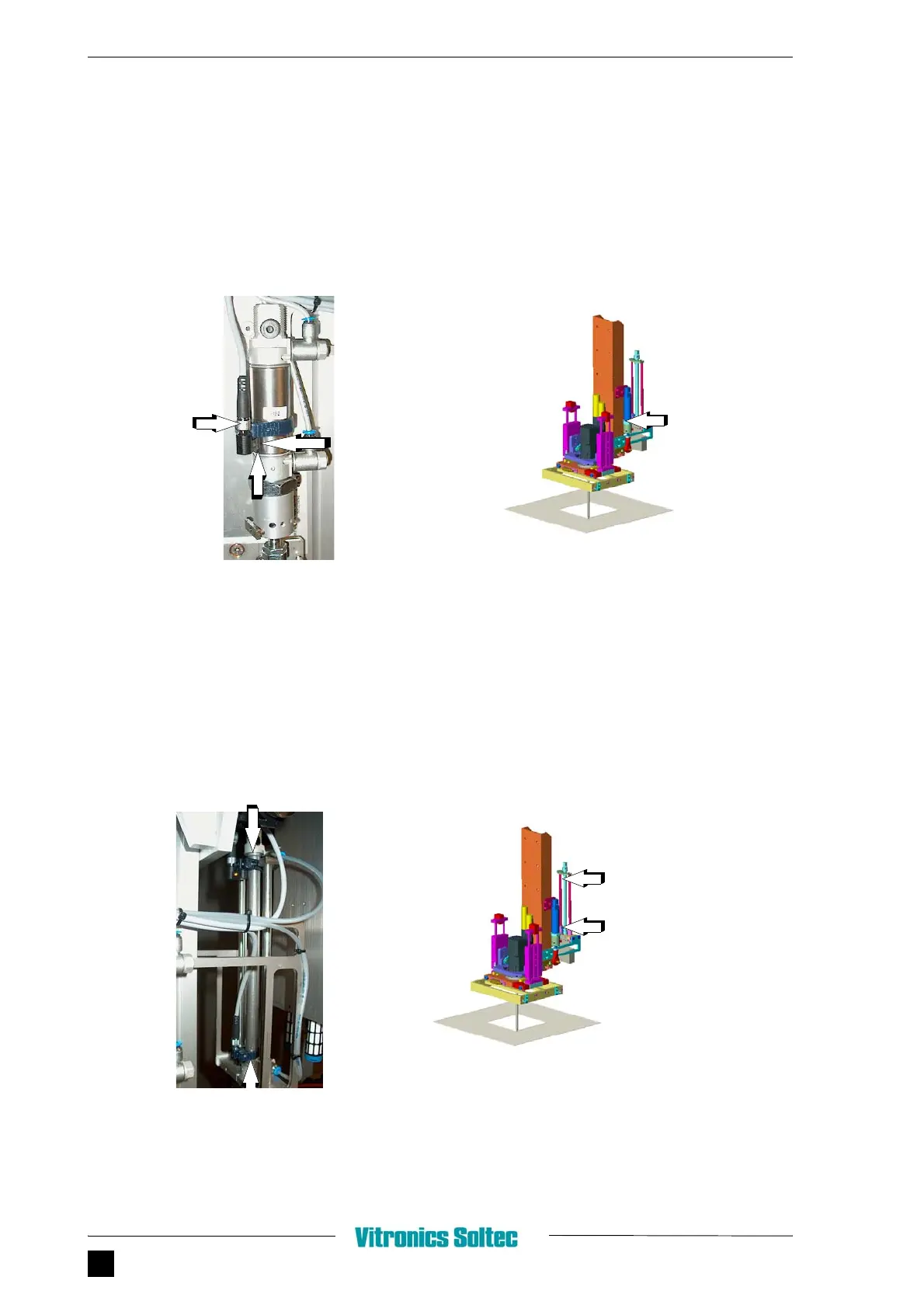

FIGURE 2.26 CYLINDER SECUREGRIP
2.14.3 ADJUSTMENT PROCEDURE SENSORS WAVE HEIGHT MEASUREMENT (WHM)
1. Set wave pin in up position in TeachScreen (PC program). Adjust sensor B87. Set wave pin in
down position in TeachScreen (PC program). Adjust sensor B88.
2. Slight sensor on cylinder direction (A) till the sensor is activated, led lights up.
3. Fasten sensor.
FIGURE 2.27 CYLINDER WAVE HEIGHT MEASUREMENT
A
B
C
Position horizontal
Sensor
B82
Sensors
WHM
A
A
B87
B88
