2.9 - OPTO MODULES
Schematics & Parts mySelective.com
CHAPTER 2 11
2.9 OPTO MODULES

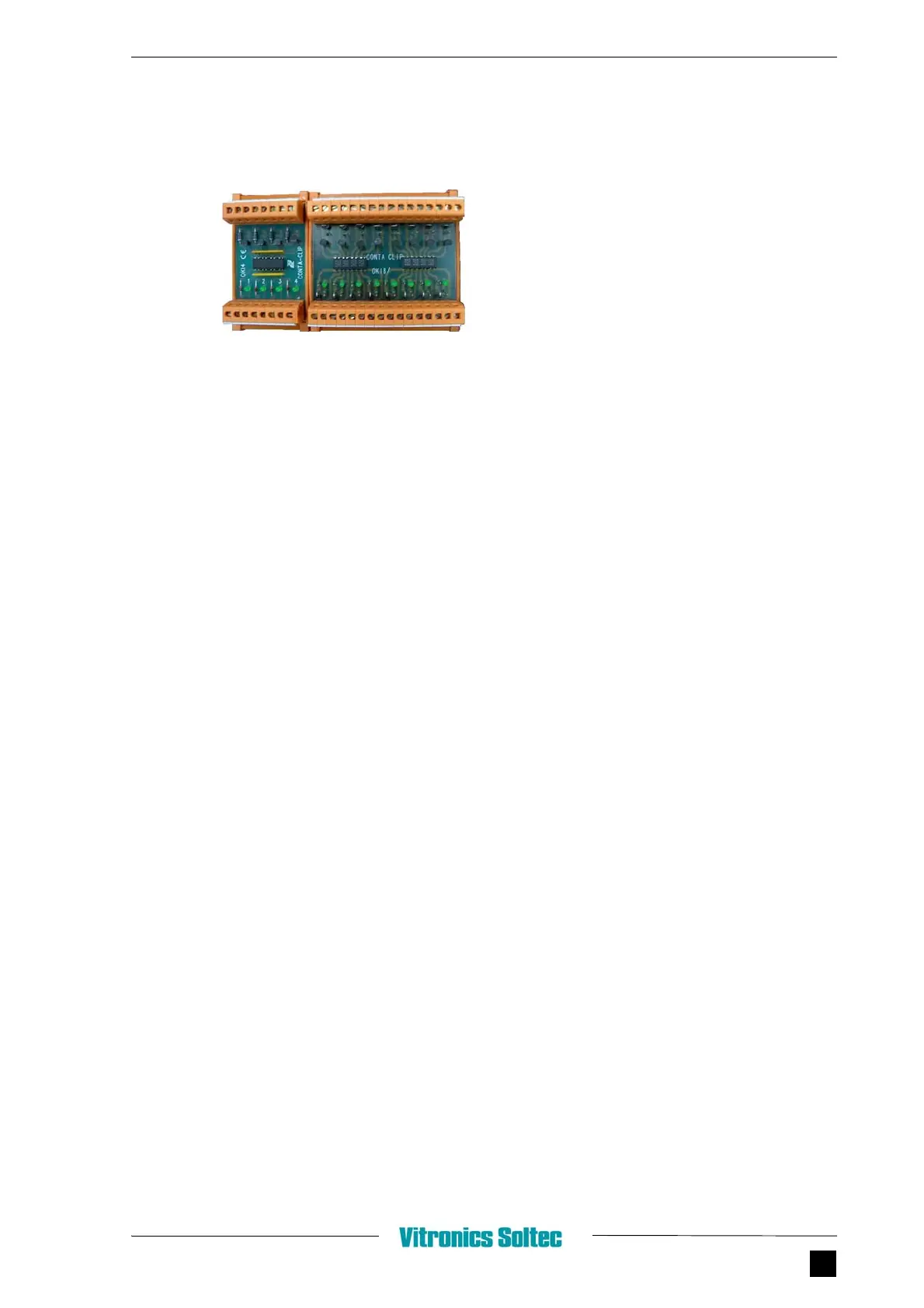

FIGURE 2.15 OPTO MODULES
Part nr. 41724
Description Opto coupler module OKI 8/24 Conta-clip 5948.2 - 24V in TTL out
D3 Robot Opto coupler
Part nr. 41722
Description Opto coupler module OKI 8/5 Conta-clip 5946.2 - TTL in 24V out
D4 Robot Opto coupler
Part nr. 41723
Description Opto coupler module OKI 4/24 Conta-clip 5947.2 - 24V in TTL out
D41 MultiFlux station 1
D81 MultiFlux station 2
Part nr. 41721
Description Opto coupler module OKI 4/5 Conta-clip 5945.2 - TTL in 24V out
D42 MultiFlux station 1
D82 MultiFlux station 2
