Vitronics Soltec mySelective 6748 - Configuration Controllers

PARTS
2 CHAPTER 2
2.1.1 CONFIGURATION CONTROLLERS
2.1.1.1 RACK 0 - MAIN

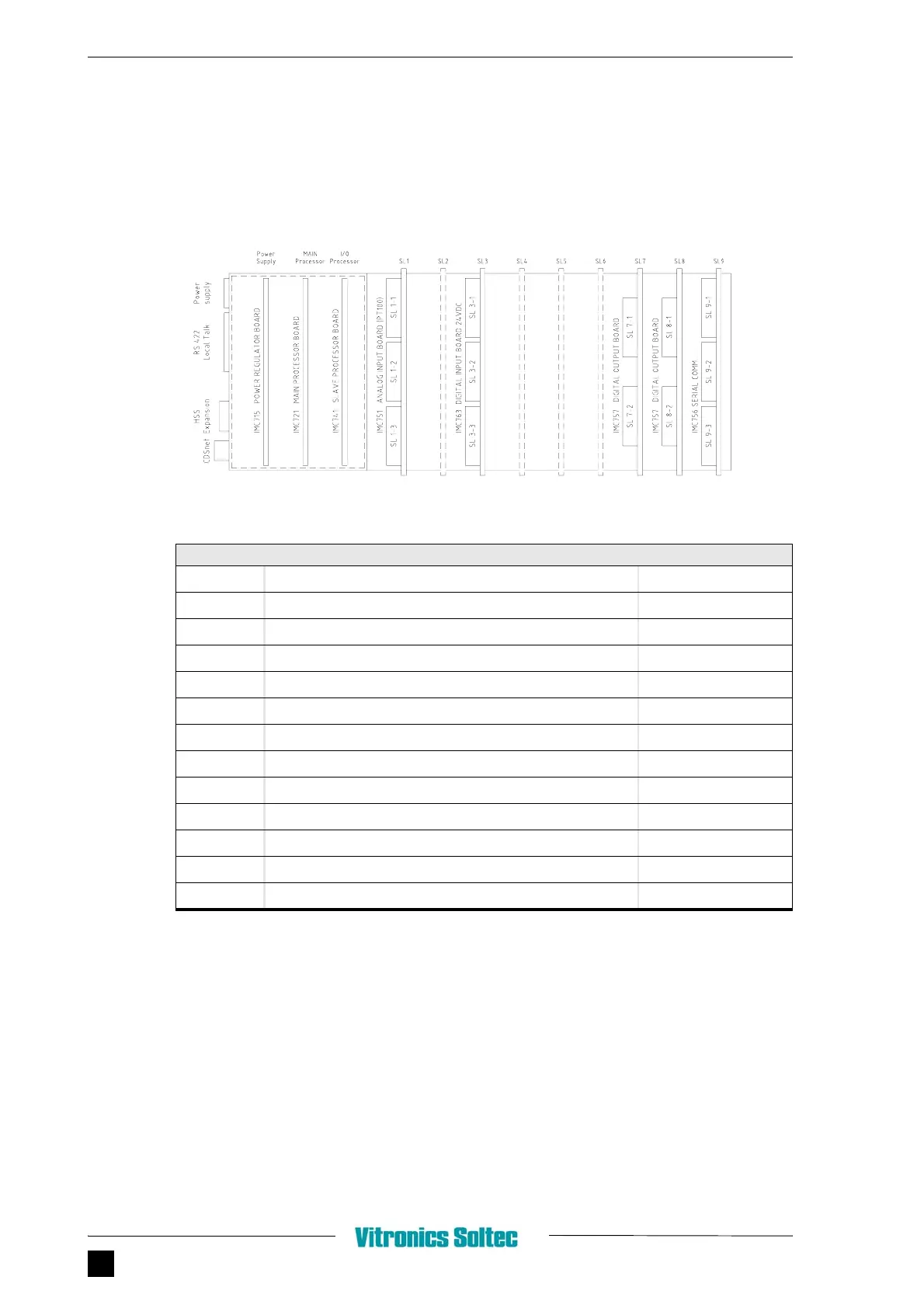

FIGURE 2.2 RACK 0 - MAIN
POS DESCRIPTION PART N UM BER
A IMC 715 POWER REGULATOR 38100
B IMC 720 MAIN CPU
C IMC 740 SLAVE CPU 38102
D IMC 710 BACKPLANE 38099
SL1 IMC 751 ANALOG INPUT PT100 38285
SL2* IMC 755 ANALOG INPUT (UNIVERSAL) 38286
SL3 IMC 763 DIGITAL INPUT 41019
SL4* IMC 763 DIGITAL INPUT 41019
SL5* IMC 757 DIGITAL OUTPUT 38107
SL6* IMC 757 DIGITAL OUTPUT 38107
SL7 IMC 757 DIGITAL OUTPUT 38107
SL8 IMC 757 DIGITAL OUTPUT 38107
SL9 IMC 756 SERIAL COMMUNICATION CONTROLLER 38790
A
B
C
D
*
* = optional
*
*
*
