PARTS
36 CHAPTER 2
2.26.9 BACK PANEL

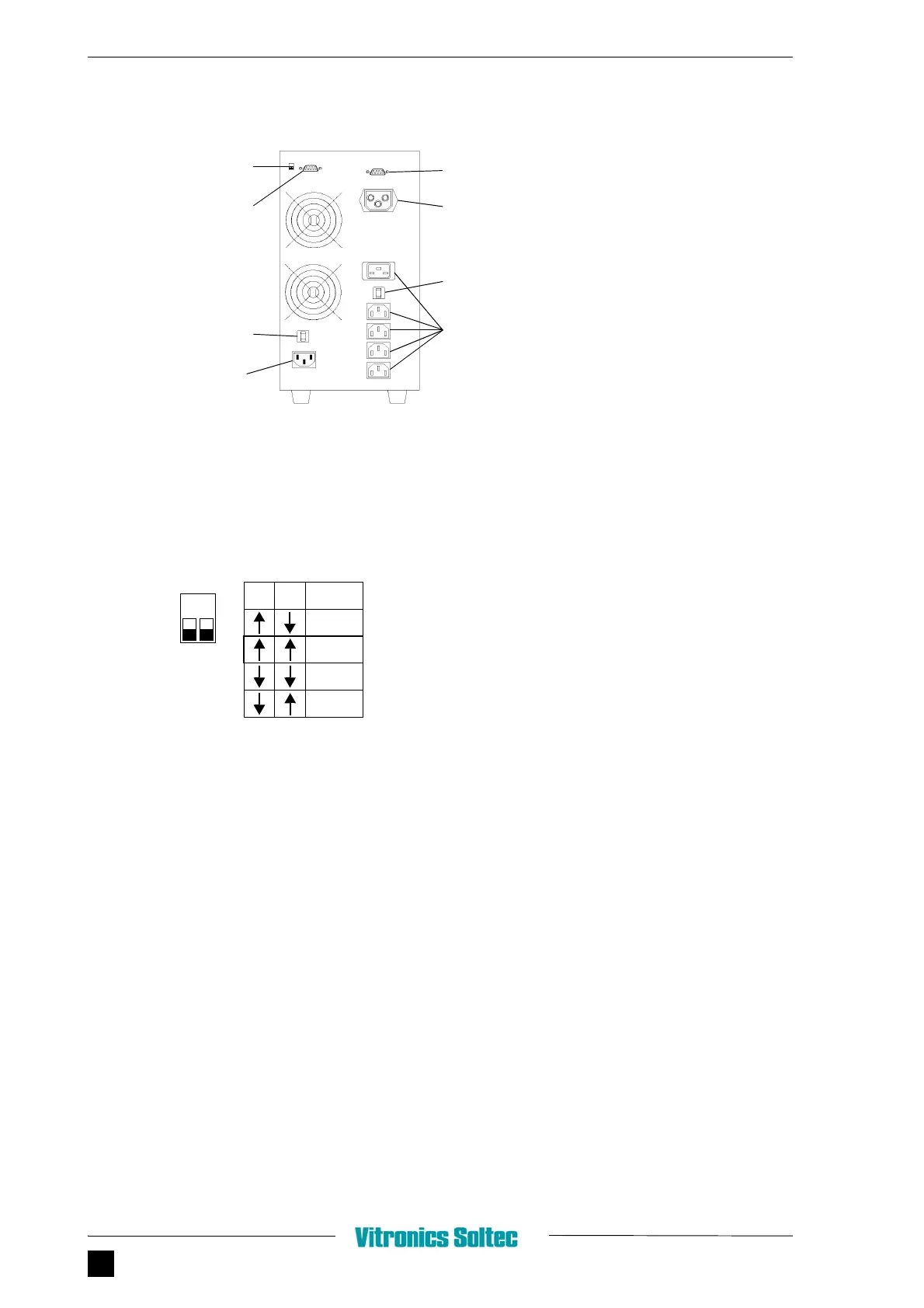

FIGURE 2.45 BACK VIEW UPS SYSTEM
2.26.10 SLIDE BUTTONS OUTPUT VOLTAGE
Slide buttons on the back panel allow selection of the outgoing voltage of the UPS system. This
can be changed only when the UPS system is switched off.
FIGURE 2.46 SLIDE BUTTONS TO SELECT OUTPUT VOLTAGE
Slide buttons for
output voltage
RS232-
Interface
Input
switch
Input
socket
Output
sockets
Output
security
switch
Battery
connection
Relay
interface
security
2
1
21
208
220
230
240
output
voltage
