30 CHAPTER 2
2.25 PRESSURE CONTROLS

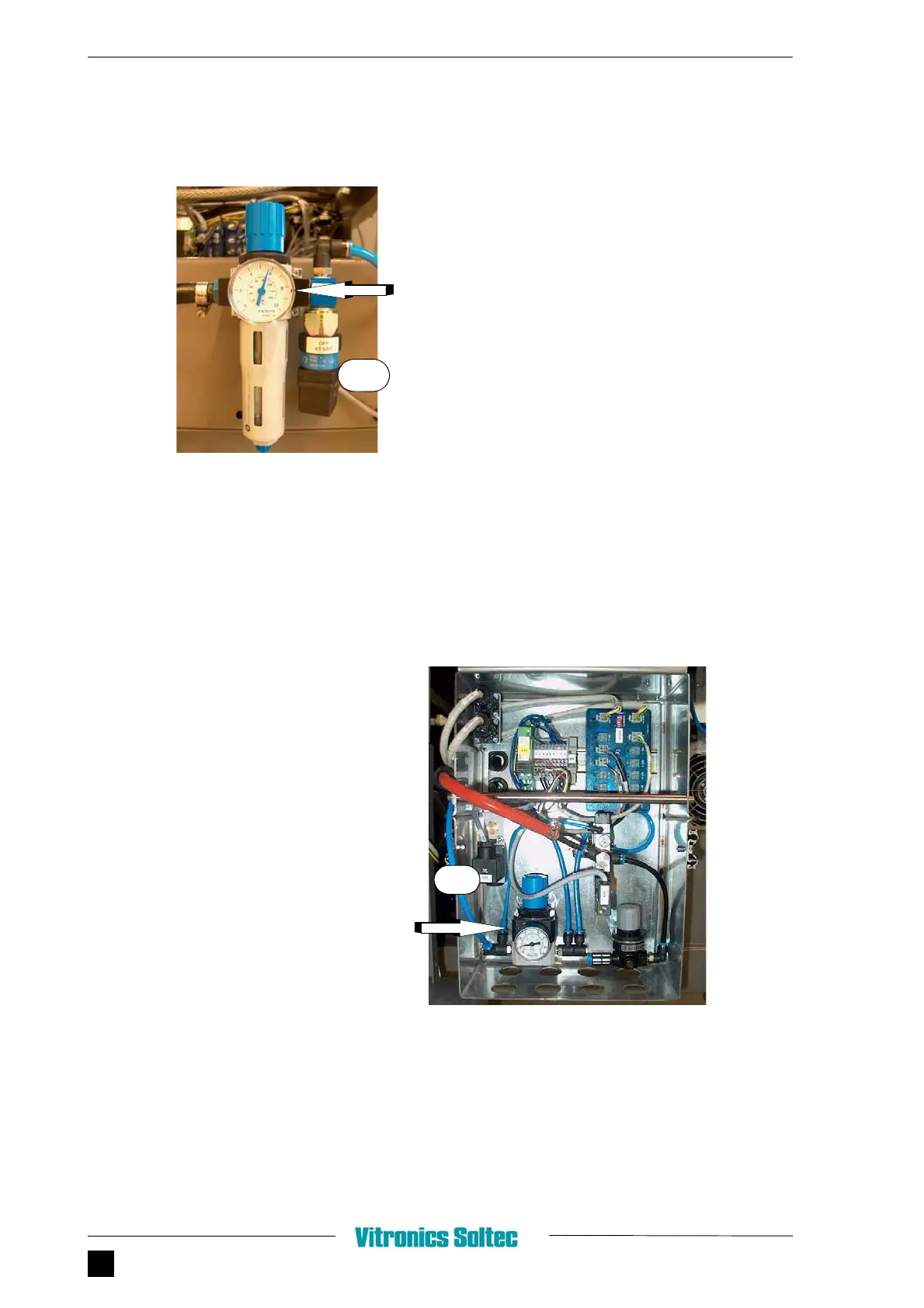

FIGURE 2.40 NITROGEN PRESSURE CONTROL (ON FRONTSIDE OF MACHINE)
Part nr. 39872
Description Pressure Switch Wilkerson K18-C2-D000
S42 Nitrogen Present
FIGURE 2.41 FLUXER VESSEL PRESSURE CONTROL (ON RIGHT SIDE OF MACHINE)
Part nr. 40323
Description Switch Pressure Festo VPEV-1/8 F150261
S91 Pressure on vessel
S42
Pressure setting 6 Bar
Switch factory set at 3.5 Bar
S91
Pressure setting 0.5 Bar
Switch factory set at 0.7 Bar
