2.24 - TEACH CAMERA & LED SPOTLIGHT
Schematics & Parts mySelective.com
CHAPTER 2 29
2.24.2 VERSION 2

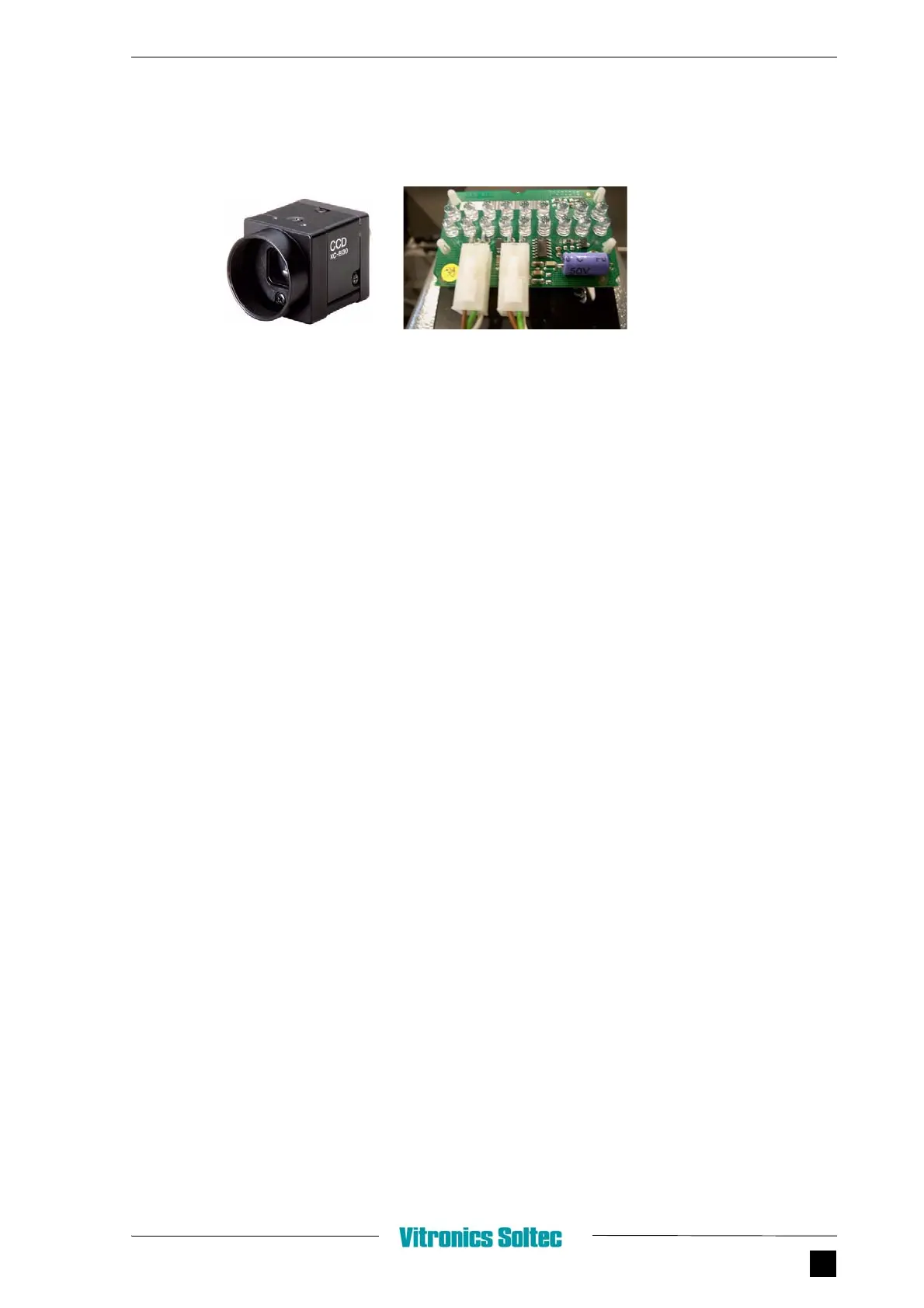

F
IGURE 2.39 TEACH CAMERA & LED SPOTLIGHT
Part nr. 43487
Description Camera Sony XC-ES30CE
CCD1 Teach Camera
CCD2 (Robot) Calibration Camera
Part nr. 43666
Description Camera lens Pentax 25mm/F1.4 C2514M Sony
CCD1 Teach Camera
CCD2 (Robot) Calibration Camera
Part nr. 42361
Description LED PCB RED CDS PCO219
H15 & H16 Camera light Teach camera
H17 Camera light Calibration camera
Part nr. 41995
Description Converter DC-DC/12-0.5 Conta-Clip 7792.2
D1 Voltage converter Teach Camera
D6 Voltage converter Calibration Camera
Part nr. 41782
Description Grabber-4-2 video+1 card VD-009 X1 PC1
