PARTS
14 CHAPTER 2
2.12 SENSORS BLOCKINGS

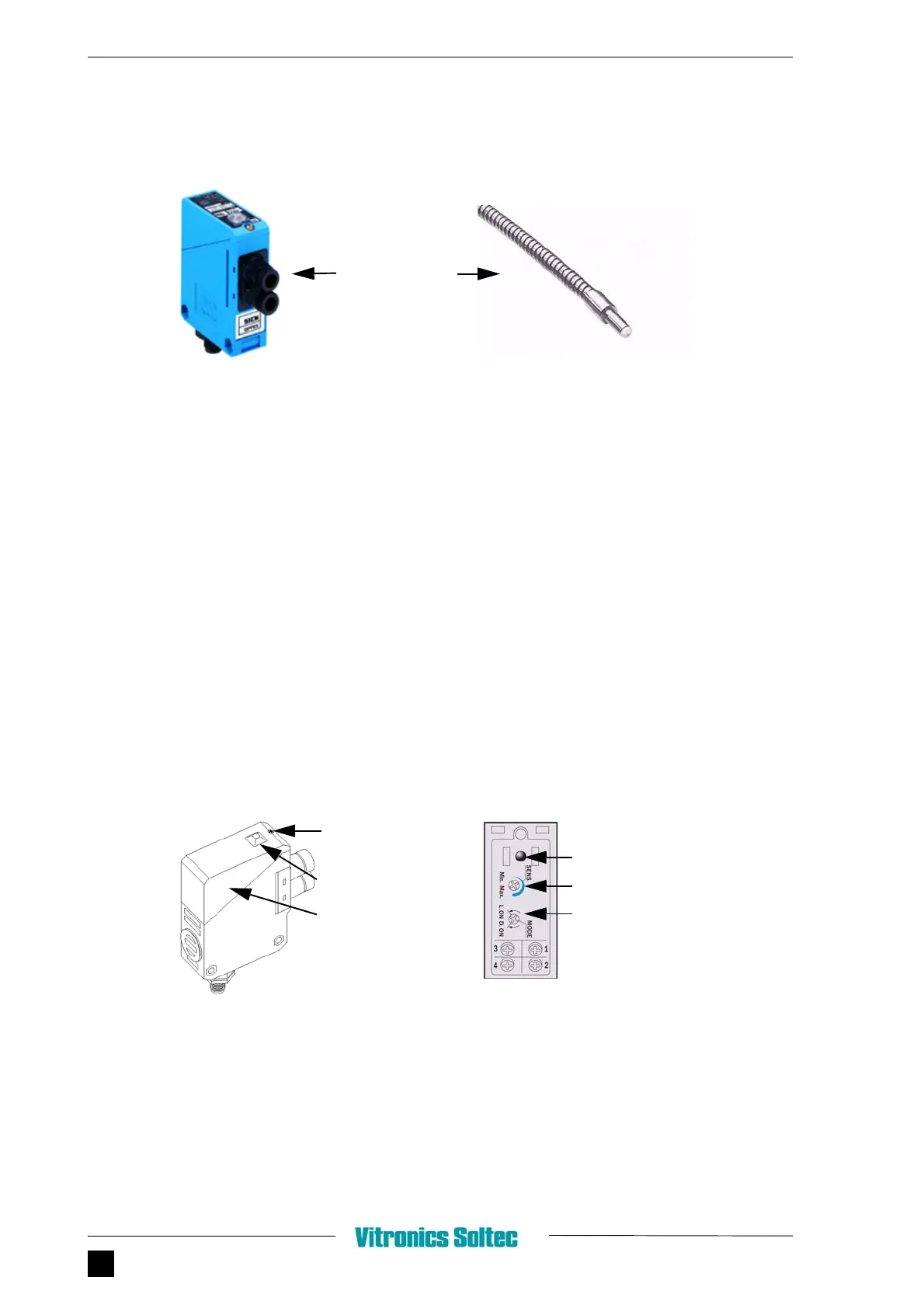

FIGURE 2.19 FIBER OPTIC SENSOR
Part nr. 41561
Description Sensor optical WLL260-F440/DC Sick 6020065
Part nr. 42154
Description Sensor fiber optic LBSAA 23900 Sick 7020103
B61 PCB blocking 0 (infeed conveyor)
B62 PCB blocking station 1
B63 PCB blocking station 2
B64 PCB blocking station 3
2.12.1 ADJUSTMENT SENSOR OPTICAL WLL260
F
IGURE 2.20 ADJUSTMENT SENSOR OPTICAL WLL260
1. Remove cover sensor.
2. Set mode at L.ON (light-switching).
3. Set sensitivity at max.
41561 + 42154
OUTPUT INDICATOR
SENSITIVITY ADJUSTMENT
LIGHT/DARK SWITCH
L.ON = light-switching
D.ON = dark-switching
OUTPUT INDICATOR
SCREW
COVER
