2.15 - SENSORS DOORS CONTROL
Schematics & Parts mySelective.com
CHAPTER 2 19
2.15 SENSORS DOORS CONTROL

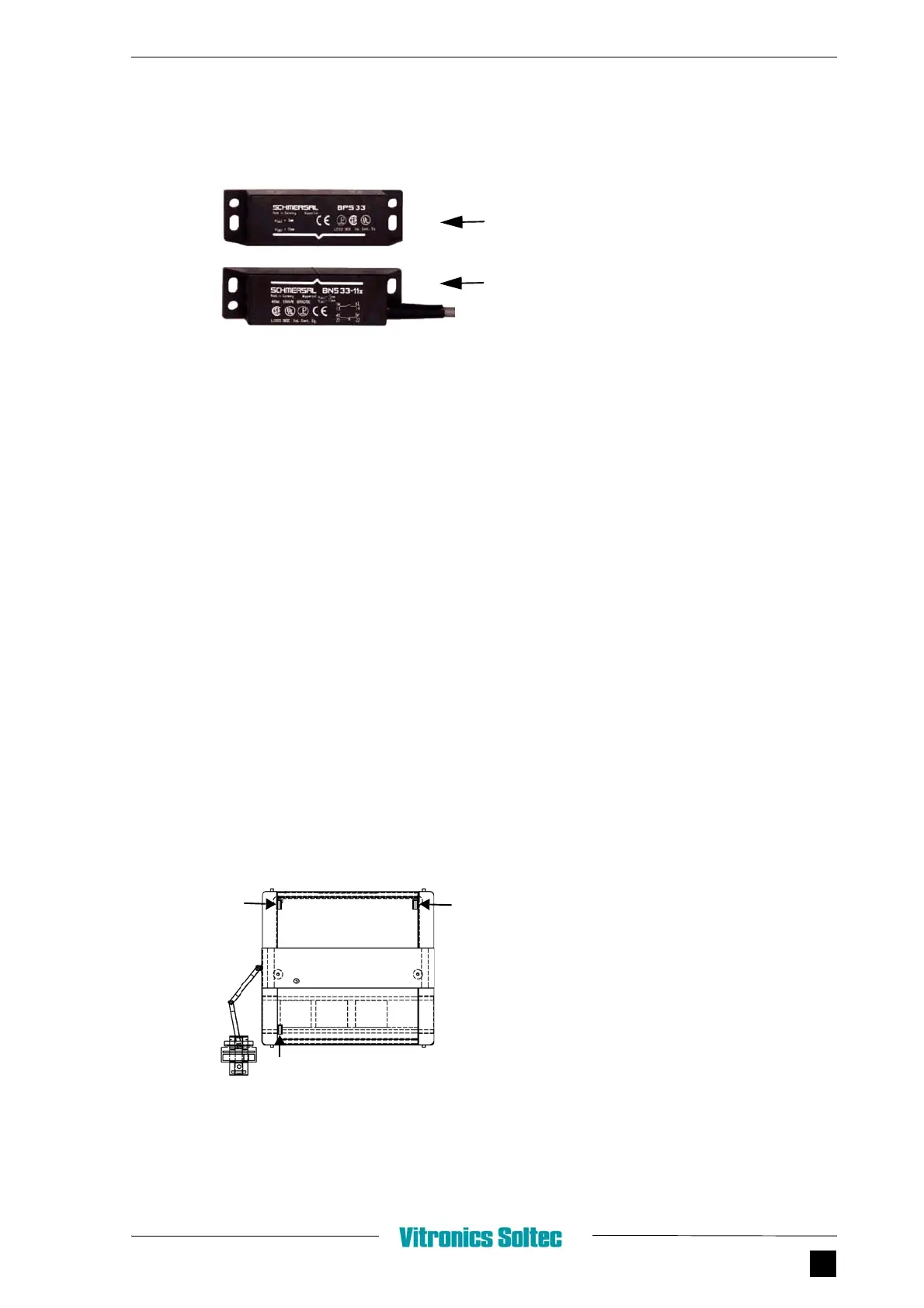

FIGURE 2.28 SENSOR MAGNETIC REED
Part nr. 41993
Description Sensor magnetic reed Schmersal BNS33-11ZG-ST
S7 Window front
S8 Window back
S9 Door air / nitrogen pressure control
Part nr. 41550
Description Sensor accessories magnet Schmersal BPS33
S7 Window front
S8 Window back
S9 Door air / nitrogen pressure control
FIGURE 2.29 TOPVIEW
41993
41550
S7
S8
S9
