PARTS
20 CHAPTER 2
2.16 SENSORS ROBOT & MULTIFLUX POSITIONS

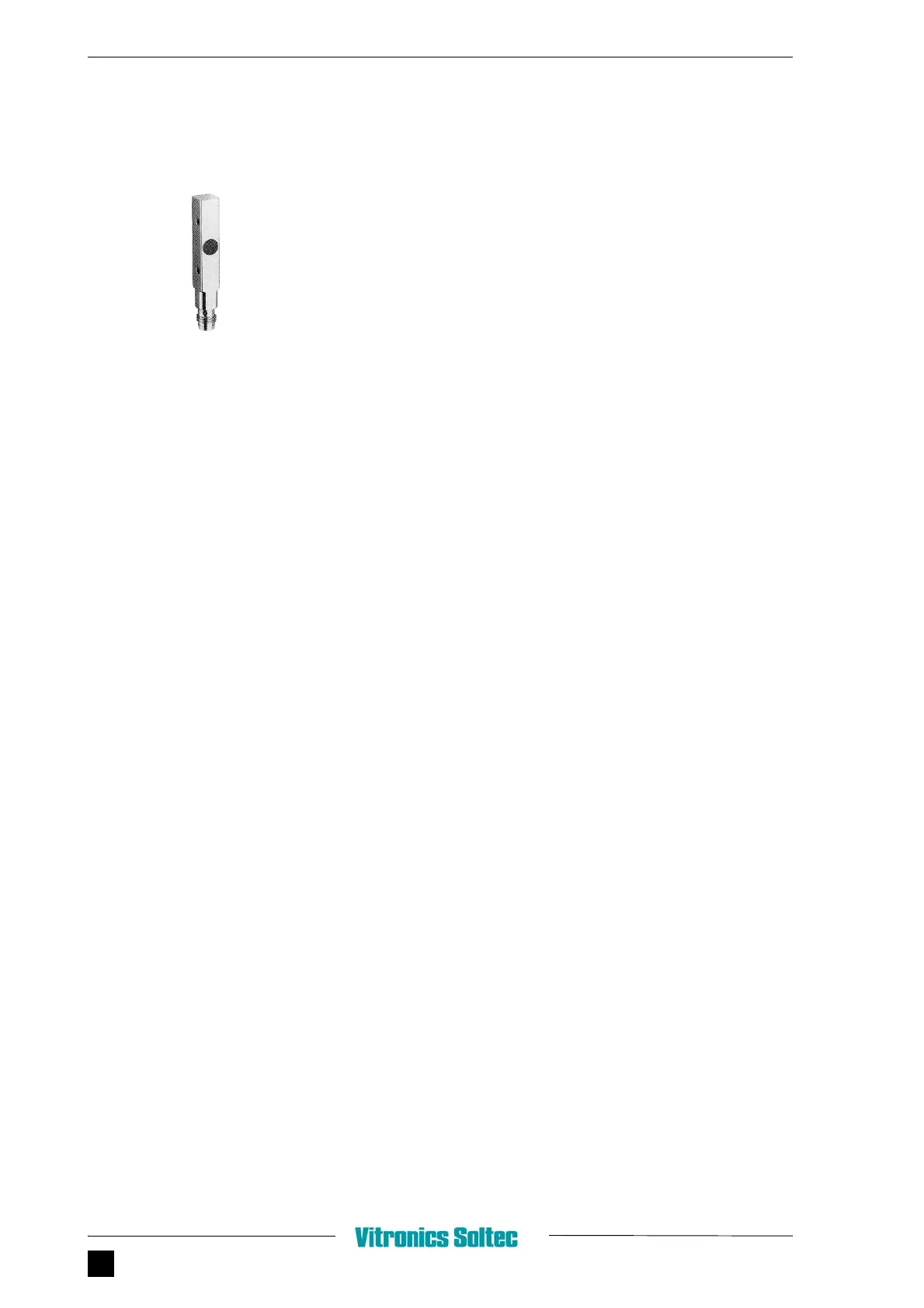

FIGURE 2.30 SENSOR INDUCTIVE
Part nr. 39526
Description Sensor inductive IFFM 12P1703/02S35L
B19 Robot system reference X
B20 Robot system reference Y
B31 MultiFlux station 1 reference X
B32 MultiFlux station 1 reference Y
B42 MultiWave cover 1 solderpot 1 open
B44 MultiWave cover 2 solderpot 1 open
B46 MultiWave cover 1 solderpot 2 open
B48 MultiWave cover 2 solderpot 2 open
B84 Robot system reference U
B85 Robot system reference Z
B93 MultiFlux station 2 reference X
B94 MultiFlux station 2 reference Y
