2.13.1 ADJUSTMENT PROCEDURE SENSORS MULTIWAVE
1. For adjusting sensors B41, B43, B45 and B47 close covers MultiWave in TeachScreen
(PC program).
2. Slight sensor on cylinder (A) till the sensor is activated, led (B) lights up. See Figure 2.22.
3. Fasten sensor (C). See Figure 2.22.

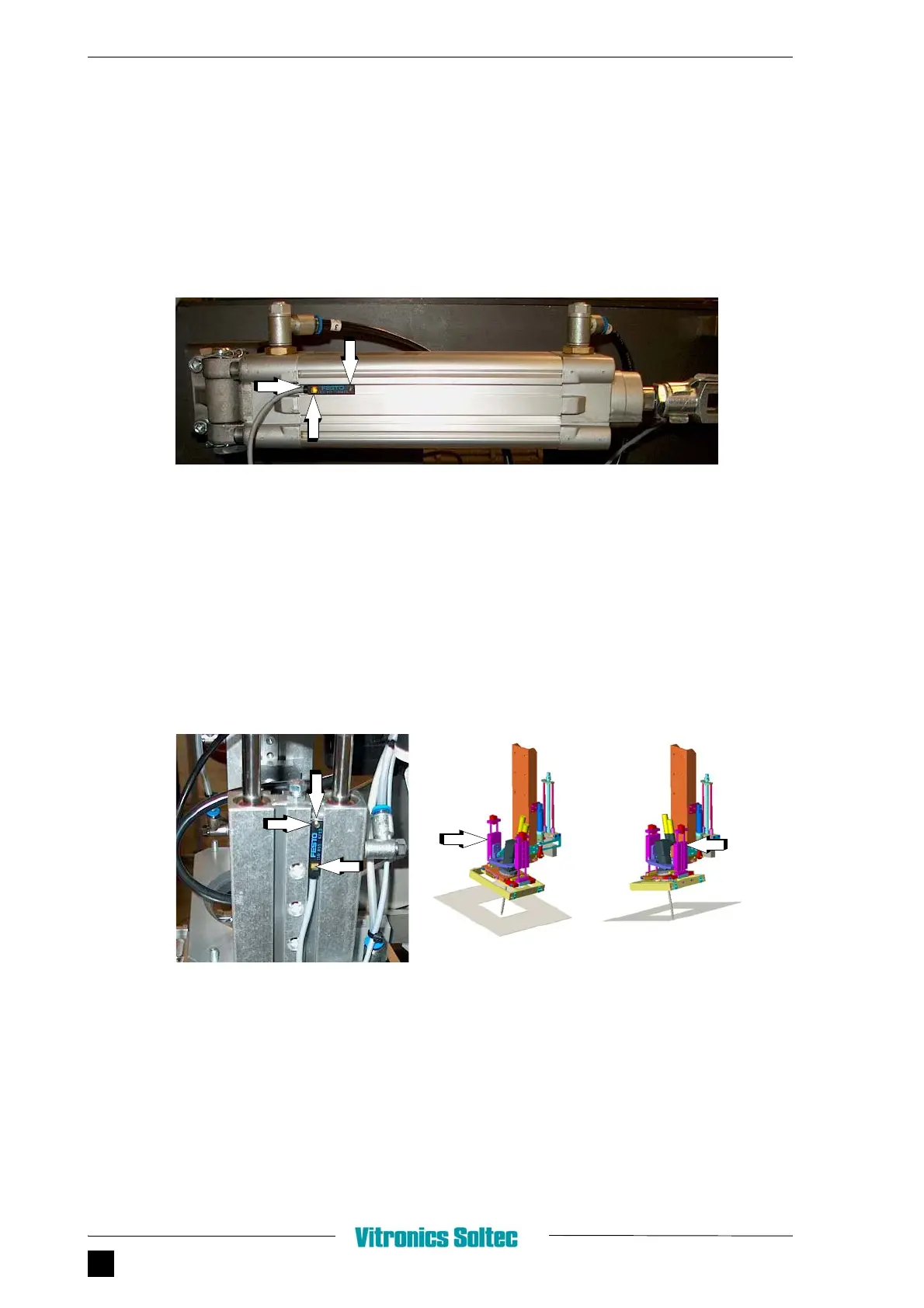

FIGURE 2.22 CYLINDER MULTIWAVE
2.13.2 ADJUSTMENT PROCEDURE SENSORS SECUREGRIP
1. Set SecureGrip in +B position in TeachScreen (PC program). Adjust sensor B83.
Set SecureGrip in -B position in TeachScreen (PC program). Adjust sensor B86
2. Slight sensor on cylinder direction (A) till the sensor is activated, led (B) lights up.
See Figure 2.23.
3. Fasten sensor (C). See Figure 2.23.
FIGURE 2.23 CYLINDER SECUREGRIP
A
B
C
A
B
C
Position +B
Position -B
Sensor
Sensor
B83
B86
