Lens Shift
Vertical Lens Shift

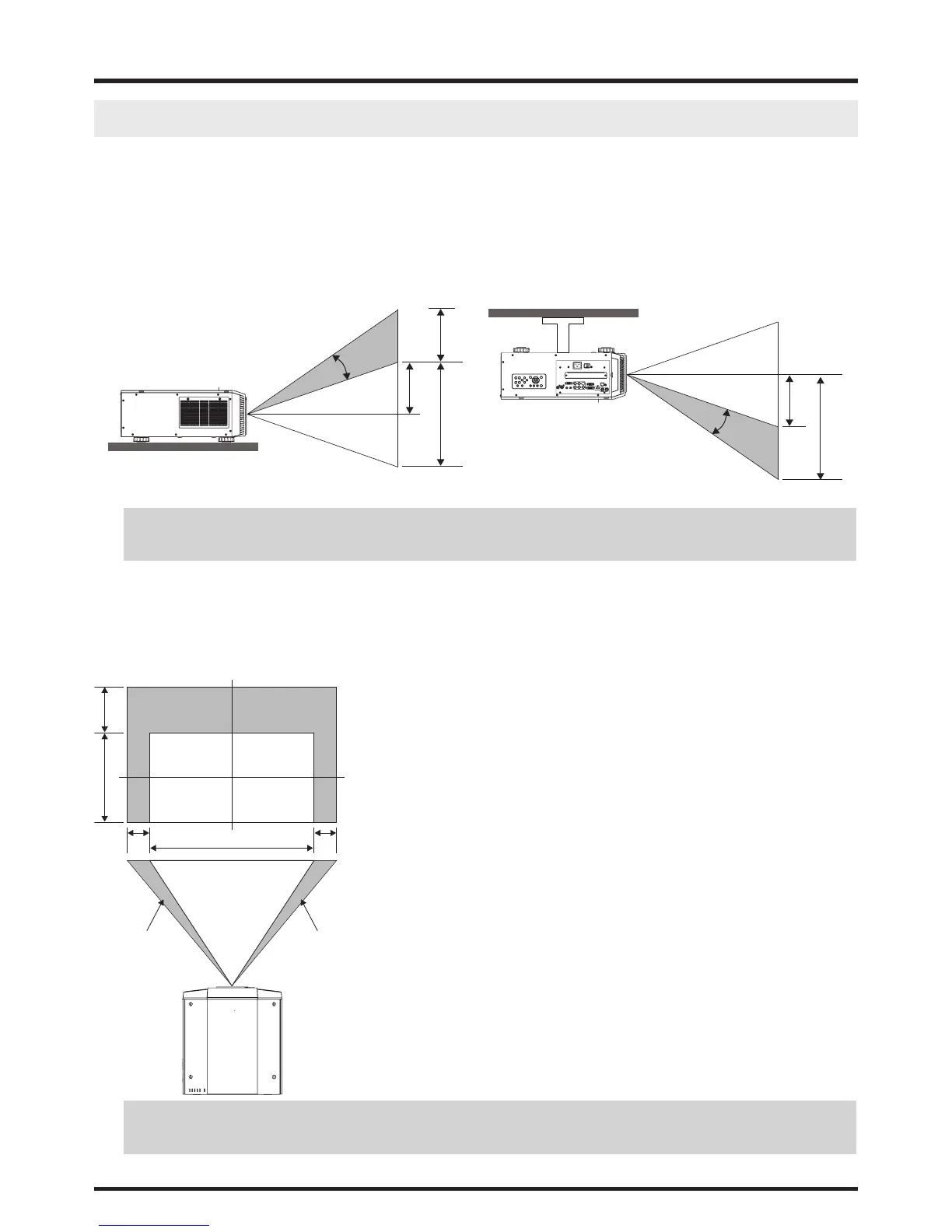

The D8800/D8900/D8010W have a lens shift capability which allows the vertical movement of the image without
moving the projector. Lens shift is generally expressed as a percentage of the screen height. For ceiling mounted projec-
tors, the lens can be moved 120% (0.6V) downward, while the lens can be moved 120% (0.6V) up or down on a desktop
mounted projector.
Desktop Front Projection
Height of projected image
Vertical Shift
Max.
0.5V
Max.
0.5V
1V
Ceiling Front Projection
Vertical Shift
Max.
0.5V
1V
Note:
This is a general example of lens shift. Lenses vary in their shift capabilities. No particular lens or projector is used in this
example.
Horizontal Lens Shift
The D8800/D8900/D8010W have a lens shift capability which allows the horizontal movement of the image without
moving the projector. The lens can be moved 30% (0.15H) to the right or left within the housing.
Max.
0.5V
1V
0.1H
0.1H1H
Width of projected image
Shift to Left Shift to Right
Normal Projection Position
Note::
This is a general example of lens shift. Lenses vary in their shift capabilities. No particular lens or projector is used in this
example.
