29
DLP Projector - User’s Manual

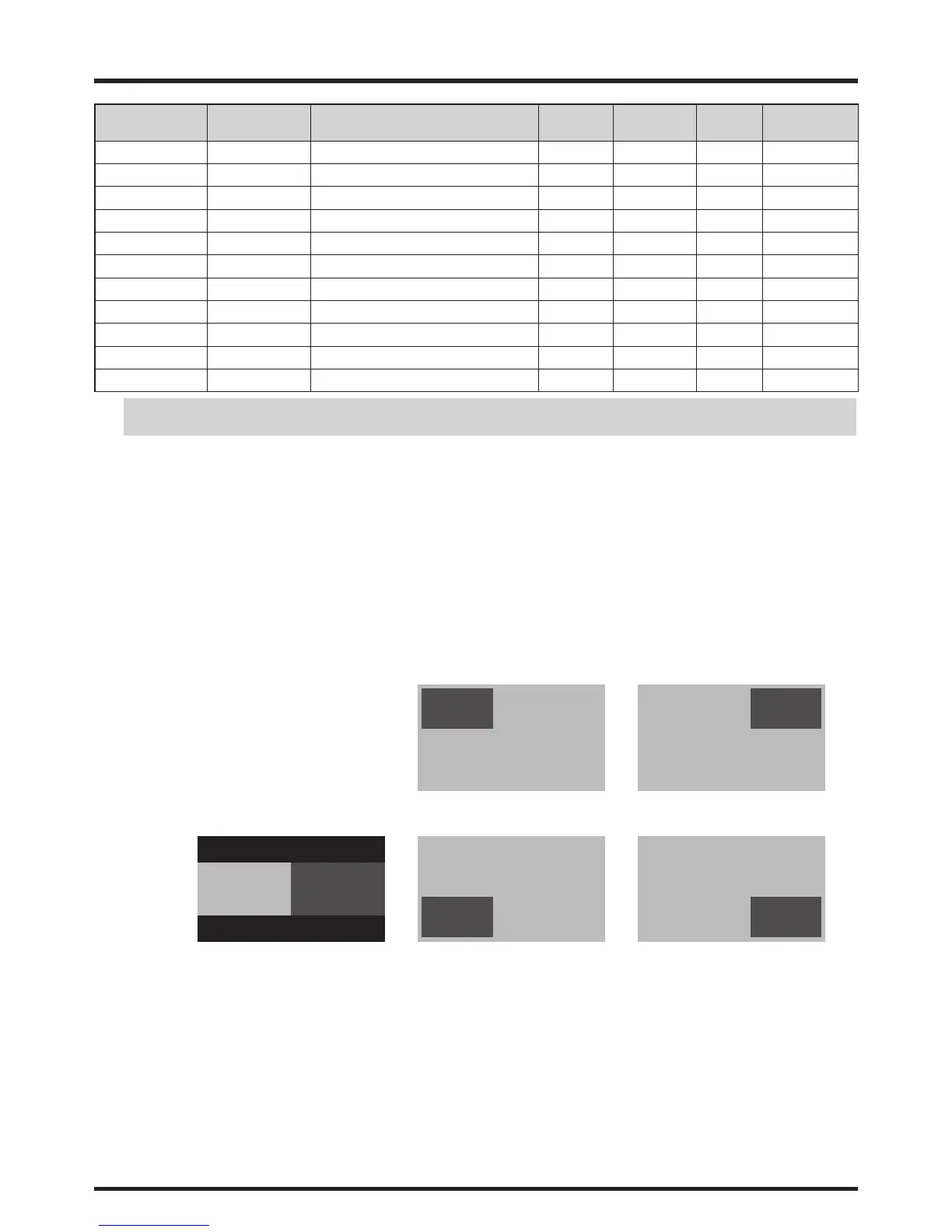

Timing SDI Link mode Signal Standards
Color
Encode
Sampling
Structure
Bit
depth
Cable Length
Tested
1080P 24Hz HD-Single SMPTE 292M292M 1.5Gbps HD YCbCr 4:2:2 10 128m
720P 60Hz HD-Single SMPTE 292M292M 1.5Gbps HD YCbCr 4:2:2 10 128m
720P 50Hz HD-Single SMPTE 292M292M 1.5Gbps HD YCbCr 4:2:2 10 128m
1080Sf 25Hz HD-Single SMPTE 292M292M 1.5Gbps HD YCbCr 4:2:2 10 128m
1080Sf 30Hz HD-Single SMPTE 292M292M 1.5Gbps HD YCbCr 4:2:2 10 128m
1080P 50Hz 3G Level A SMPTE 424M 3Gbps YCbCr 4:2:2 10 128m
1080P 59.94Hz 3G Level A SMPTE 424M 3Gbps YCbCr 4:2:2 10 128m
1080P 60Hz 3G Level A SMPTE 424M 3Gbps YCbCr 4:2:2 10 128m
1080P 50Hz 3G Level B SMPTE 424M 3Gbps YCbCr 4:2:2 10 128m
1080P 59.94Hz 3G Level B SMPTE 424M 3Gbps YCbCr 4:2:2 10 128m
1080P 60Hz 3G Level B SMPTE 424M 3Gbps YCbCr 4:2:2 10 128m
Note:
Signals are not supplied for D8800/D8900/D8010W, if it is not in the table.
y PIP
You can use this function to display multiple windows each containing an image.
y PIP Option
Use this to turn the function On/Off.
y PIP Input
Use this to select the input.
y PIP Swap
Use this to exchange displayed images.
y Position
Use this to select the location of the PIP window (Top left, Top Right, Bottom Left, Bottom Right, or Split L-R).
2
1
2
1
2
1
1
2
2
1
Top Left Top RightLocation
Bottom LeftSplit L-R Bottom Right
y Test Pattern
Select this to enter the display test function.
