Note:
• Inaccurate polar alignment could result in trailed stars and field
rotation in your imaging device.
• It is not possible to use the SXD2 mount in the north latitude
over 70 degrees and in the south latitude over 70 degrees.
The polar alignment scope is a small telescope that is installed
parallel to the R.A. axis of an equatorial mount so that the polar
Alignment scope can precisely point to the north (or south) celestial
pole. Accurate polar alignment is essential for successful long
exposure astrophotography of deep sky objects with the equatorial
mount. Check longitude and latitude of your observing site with a
GPS system or a map before the polar alignment. The polar
Alignment scope allows you to accurately align the mount to the
celestial pole at 3 arc minutes or less.

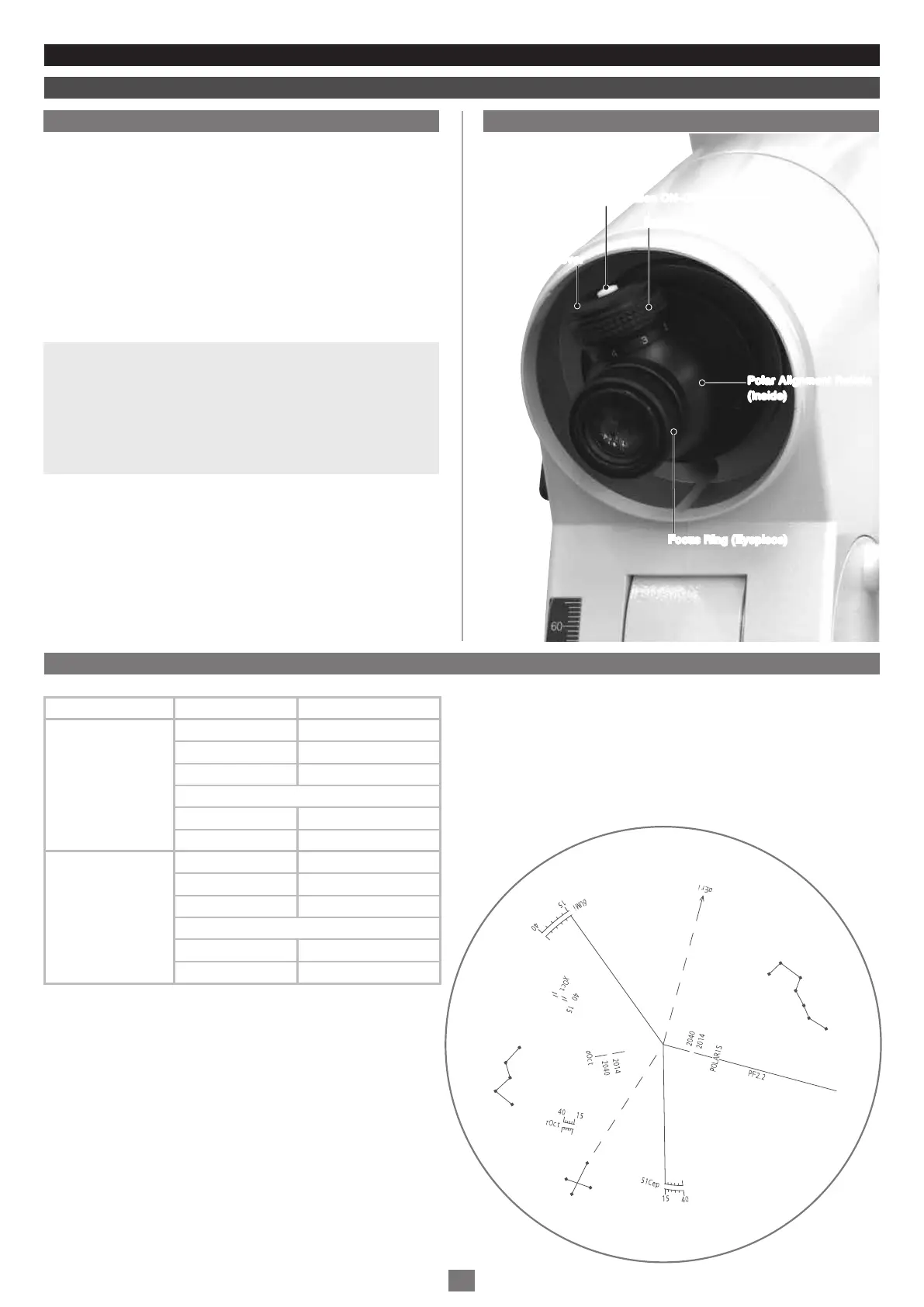

What is a Polar Alignment Scope? Components Guide
Chapter 5 APPLICATION
. How to Use the Polar Alignment Scope
Ⅰ
Focus Ring (Eyepiece)Focus Ring (Eyepiece)
Brightness adjustment dial
Polar Alignment Reticle
(Inside)
Battery cover
Illumination ON-OFF Push Switch
Brightness adjustment dial
Polar Alignment Reticle
(Inside)
Battery cover
Illumination ON-OFF Push Switch
Legend on the Polar Alignment Reticle
In the Northern
Hemisphere
In the Southern
Hemisphere
Meaning of numbers
15 – the year 2015
40 – the year 2040
The position scales on the reticle are 5-year increments.
Name
POLARIS
δUMi
51Cep
Useful guiding stars and constellations
“W” shape
Big Dipper
σOct
τOct
χOct
Useful guiding stars and constellations
Southern Cross
αEri
Constellation
Little Bear
Little Bear
Cepheus
Cassiopeia
Big Bear
Octans
Octans
Octans
Crux
Eridanus
52
