·New split pin should be replaced when reloading.
·After the reassembly is completed, the brake pedal shall be repeatedly pressed down and the
pressure point shall be clearly felt.
· If you cannot feel the pressure point clearly, please consult the authorized dealers of VOGE for
handling.
· If the adjustment is not correct, the force between the friction plate and the brake disc will
always be exerted, which will damage the friction plate and the brake disc.
!
Danger

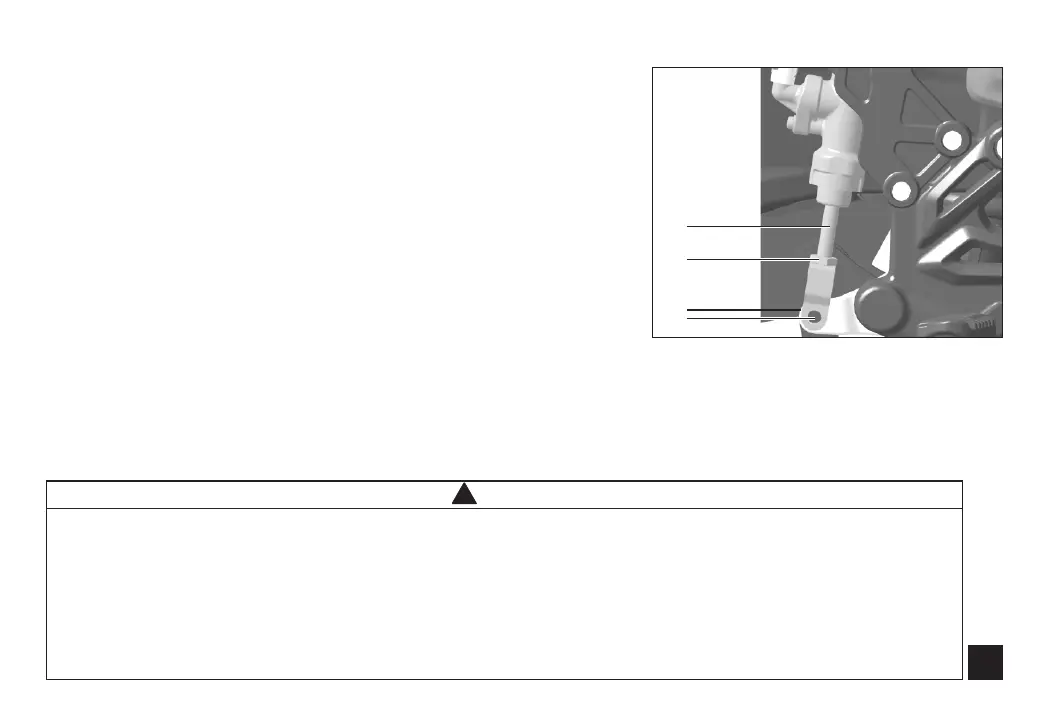

Adjustment of the rear brake pedal
·The rear brake pedal should be kept in an appropriate height.
If too high, the brake plate is easily trampled in use, which
will cause the crash between the brake friction plate and disc,
damaging the friction plate and the brake disc.
·In order to ensure the reliability of braking, the free stroke of
the rear brake pedal is 25-35mm. If the free stroke is not
correct, adjust it according to the following methods.
–Take out split pin 1.
–Remove pin shaft 2.
–Loosen screw nut 3 on adjusting rod.
– Rotate the adjusting screw connector 4 clockwise or
counterclockwise.
– Rotate the pedal clockwise to increase the height , on the contrary, turn the pedal counterclockwise
rotation to decrease the height.
–Tighten the adjusting rod nut when the brake pedal height on its appropriate position.
–The reassembly process is the opposite of the disassembly process.
the free stroke of the rear brake pedal:25-35mm
the nut torque of the adjusting bar: 18 Nm
3
2
1
4
31
