· The drive chain can neither be too loose nor too tight.
· Chain will break away from the sprocket easily due to the
excessive loose of chain, which causes accidents.
· Chain will highly consume service life and obtain transmission
resistance due to the excessive tight of chain. The correct chain

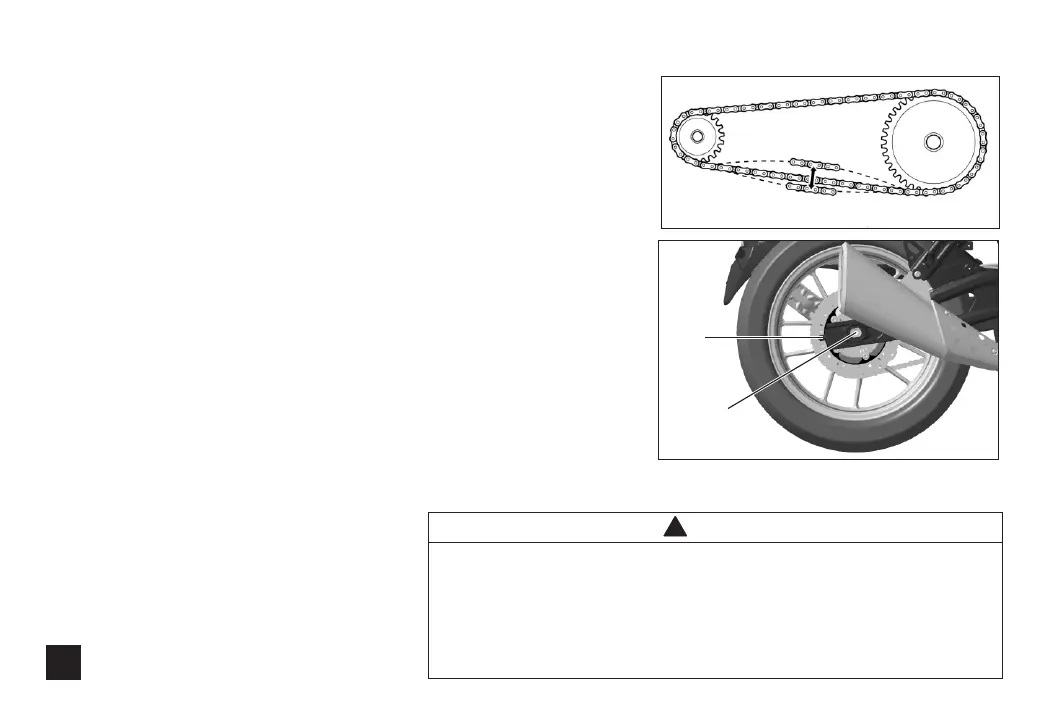

tension is shown in the figure:
Adjustment is required if there is any inconformity between your
motorcycle transmission chain and above requirements:
· Keep the motorcycle upright with a special parking rack.
· Loosen the rear axle nut 1 and the adjusting nut 2, and adjust the
bolts according to the tension of chain.
· Turn the bolt counterclockwise, if the chain is too loose.
· Vice versa, and then push the rear wheel forward to loosen the
chain.
· Fine-tune the left and right bolts to reconcile the adjustment top
block consistent with the scale on the flat fork after the chain is
adjusted to required tension.
ock the rear axle nut 1 and adjustment L
nuts 2 both in left and right.
Specification and model:
Model: 520 Knots: 118 Sections
pecification: lock ring without openingS
of engine oil seal chain
Adjustment of Drive Chain
Locking torque of adjusting nut: 14NM
Locking torque of rear axle nut: 95NM
!
Danger
The drive chain is of the non-open locking ring, and the open
locking type cannot be used, otherwise the chain will be
detached and cause accidents.
Special tools are required when replacing the drive chain. If not
riveted properly, the chain will be disconnected, which causes
accidents.
1
2
60
20~30mm
