5.Use the Arbitrary Function Generator (Optional)

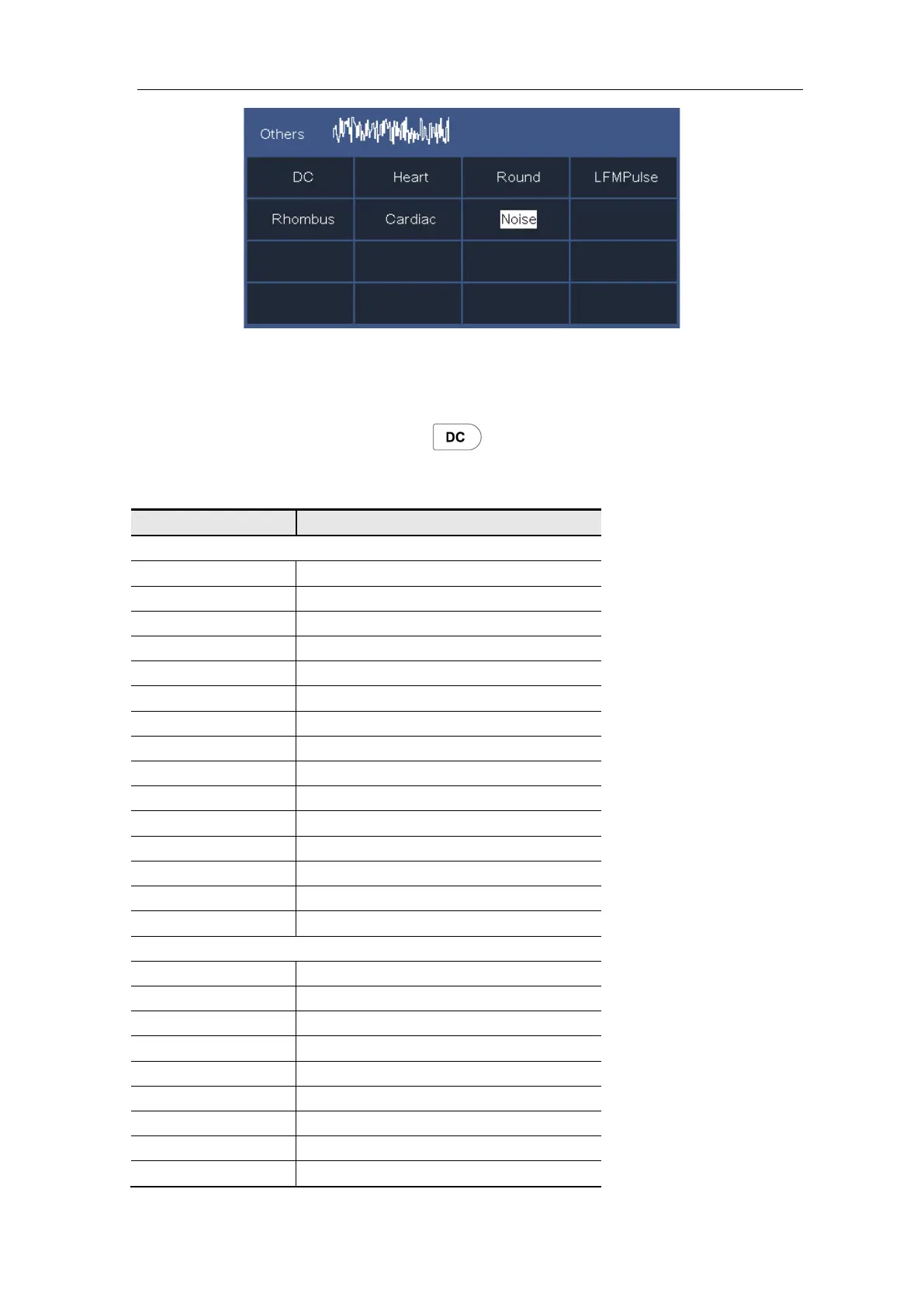

(4) Turn the M knob to select the desired waveform (or touch). E.g. select Noise. Select
Select to output the noise waveform.
Note: For single-channel, you can push
on the front panel to output DC.
Built-in Waveform Table
Common
StairD Stair-down waveform
StairU Stair-up waveform
StairUD Stair-up and stair-down waveform
Trapezia Trapezoid waveform
RoundHalf RoundHalf wave
AbsSine Absolute value of a Sine
AbsSineHalf Absolute value of half a Sine
SineTra Sine transverse cut
SineVer Sine vertical cut
NegRamp Negative ramp
AttALT Gain oscillation curve
AmpALT Attenuation oscillation curve
CPulse Coded pulse
PPulse Positive pulse
NPulse Negative pulse
ExpRise Exponential rise function
ExpFall Exponential fall function
Sinc Sinc function
Tan Tangent
Cot Cotangent
Sqrt Square root
XX Square function
HaverSine HaverSine function
Lorentz Lorentz function
