Appendix D: Line Fuse Replacement
The line fuse is in the plastic fuse box below the power line input on the rear panel.
Disconnect the line cord at the rear panel and remove all test leads
connected to the instrument before replacing the line fuse. Failure to do so
could expose the operator to hazardous voltages that could result in personal
injury or death.
The rating of replaceable fuse is 2 A, T class, 250 V, Φ5 x 20 mm. Use only the correct
fuse type. Failure to do so could result in personal injury or instrument damage.

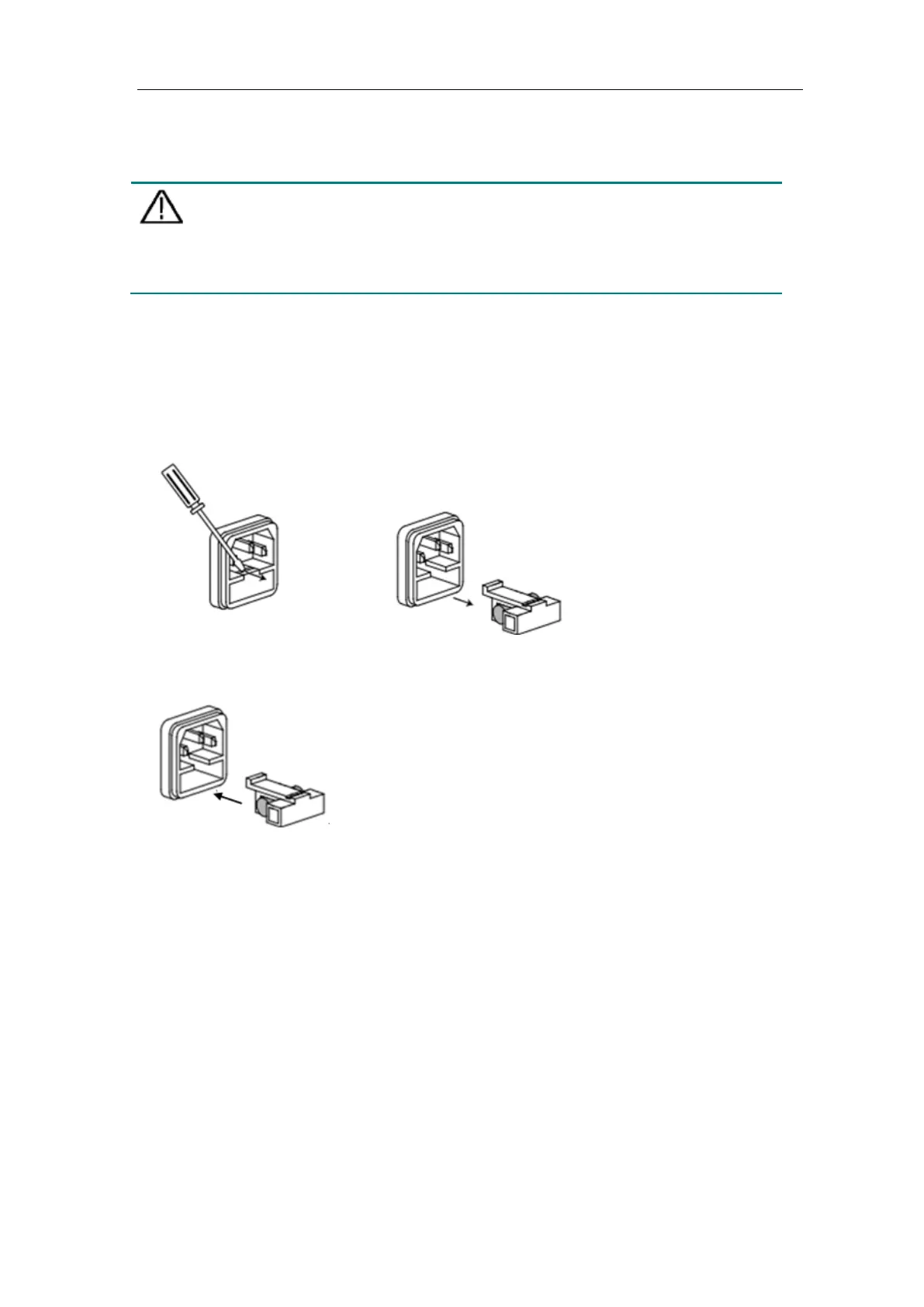

To perform the line fuse replacement, follow these steps:
1. Remove the power cord.
2. Use a screwdriver to remove the fuse box.
3. Replace the fuse with a new one, which should match with the rating; install it into
the fuse box and then push the fuse box back on to the rear panel.
