5.Use the Arbitrary Function Generator (Optional)

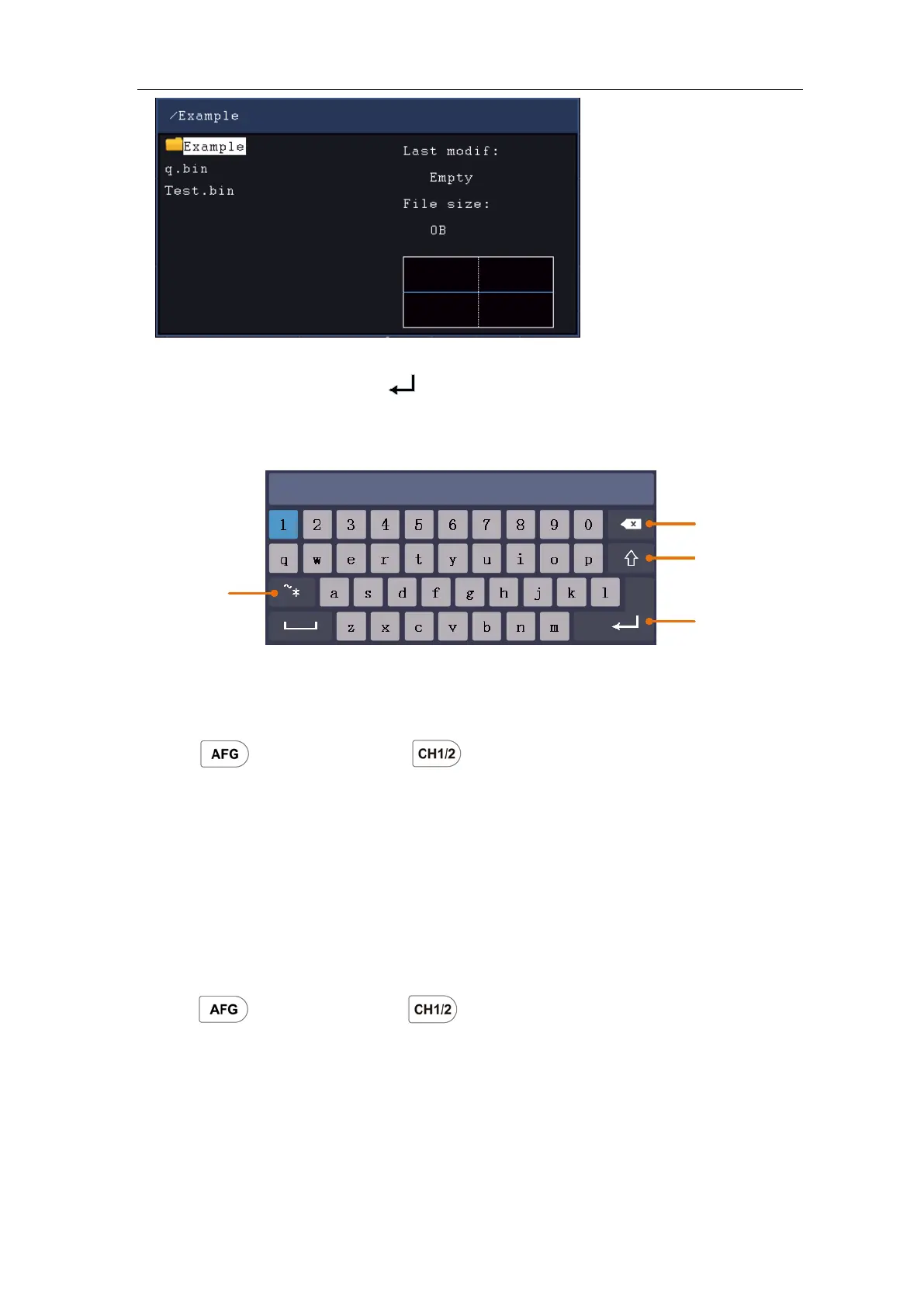

Enter the desired storage path, select Save in the right menu, an input keyboard pops
up, input the file name, choose
in the keyboard to confirm
. The waveform is saved
as BIN file in the folder.
Note: The input length can have up to 35 characters.
Confirm
Clear
Switch the case
Switch to
symbol
keyboard
File Browse
To read a waveform stored in internal storage or USB device:
(1) Push (single-channel) or (dual-channel) button. Select Arb in the
bottom menu, select Others in the right menu, and select File Browse.
(2) Select the desired waveform file in internal storage (FLASH) or USB device
(USBDEVICE).
(3) Select Read in the right menu.
Built-in Waveform
There are 46 built-in Arbitrary waveforms.
Steps for selecting the built-in waveform:
(1) Push (single-channel) or (dual-channel) button to show the bottom
menu of generator.
(2) Select Arb in the bottom menu, select Others in the right menu, and select Built-in.
(3) Select Common, Math, Window or Others in the right menu. E.g. select Others to
enter the following interface.
To Next Page
