4.Advanced User Guidebook

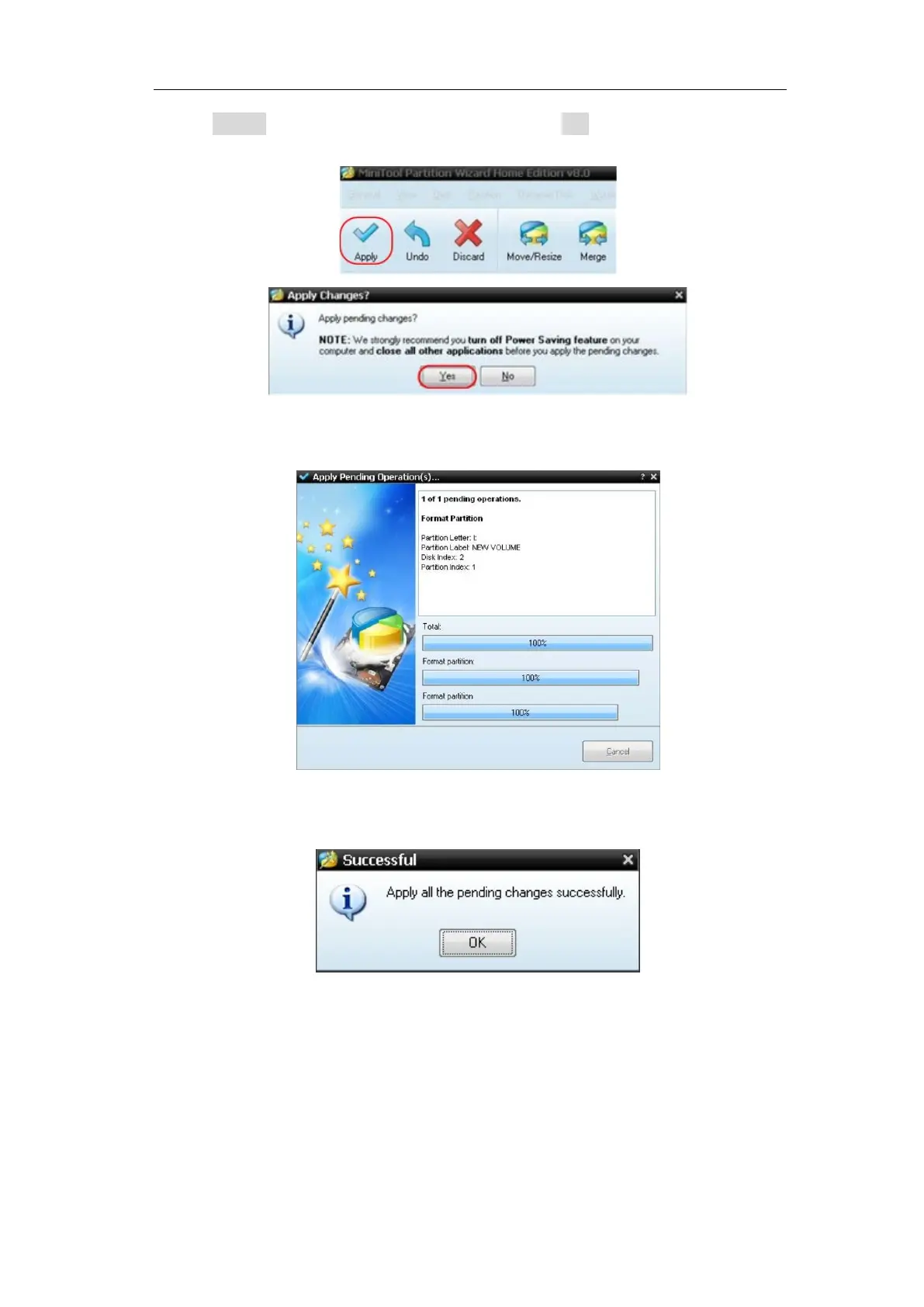

6. Click Apply at the top left of the menu. Then click Yes on the pop-up warning to
begin formatting.
Figure 4-13: Apply setting
7. Formatting process
Figure 4-14: Format process
8. Format the USB disk successfully
Figure 4-15: Format successfully
How to Record/Playback Waveforms
Push Save button. Select Type in the bottom menu, in the left menu, turn the M knob
to select Record.
Wave Record function can record the input current wave. You can set the interval
between recorded frames in the range of 10 ms - 10 s. The max frame number reaches
1000, and you can get better analysis effect with playback and storage function. The
To Next Page
