5.Use the Arbitrary Function Generator (Optional)
92
Units
Clear
OK


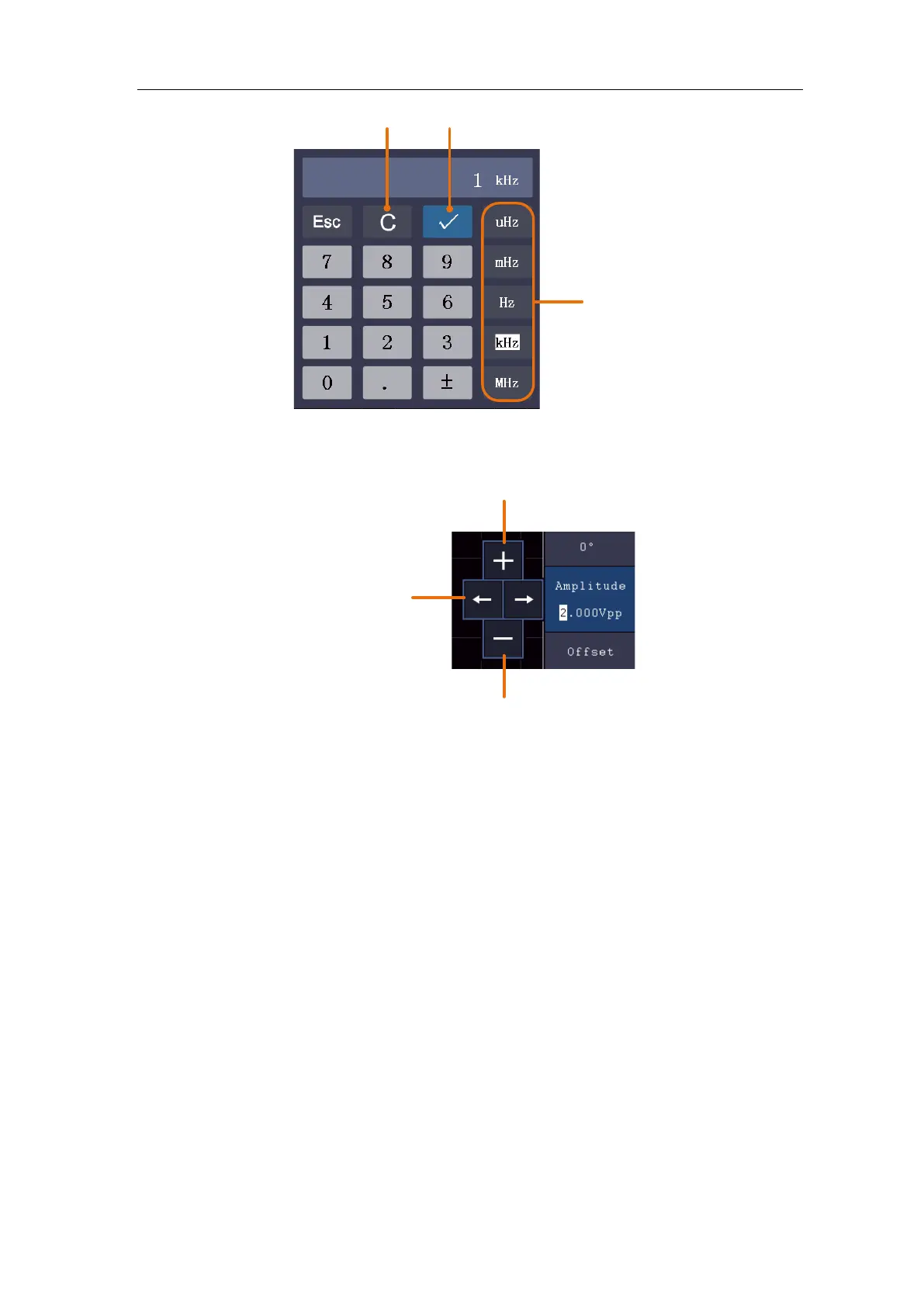

Use the touchscreen:
Click to increase the
value of cursor position
Move the cursor
Click to decrease
the
value of cursor position
To Set the Period
Select Period in the right menu (if Period is not displayed, select Frequency and select it
again to switch to Period). Set the parameter in the right menu.
To Set the Start Phase
Select StartPhase in the right menu. Set the parameter in the right menu.
To Set the Amplitude
Select Amplitude in the right menu (if Amplitude is not displayed, select High Level and
select it again to switch to Amplitude). Set the parameter in the right menu.
To Set the Offset
Select Offset in the right menu (if Offset is not displayed, select Low Level and select it
again to switch to Offset). Set the parameter in the right menu.
To Set the High Level
Select High Level in the right menu (if High Level is not displayed, select Amplitude
