4.Advanced User Guidebook

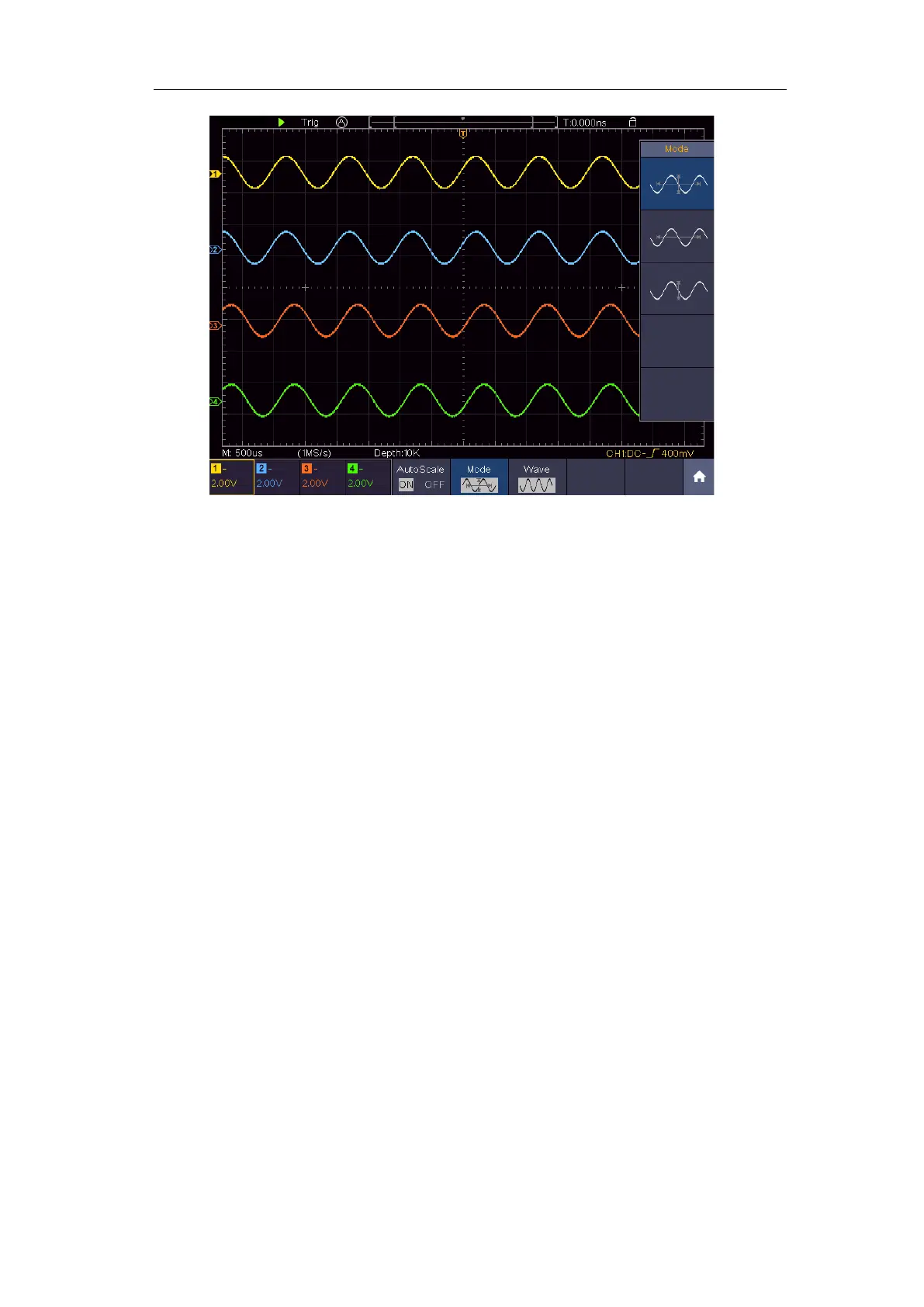

Figure 4-22 Autoscale Horizontal-Vertical multi-period waveforms
Note:
1. When entering into Autoscale function, a autoscale indicator will be flickering on
the top left of the screen.
2. In the mode of Autoscale, the oscilloscope can self-estimate Trigger Mode (Edge,
Video). At this point, the trigger menu is not available.
3. When the input signal contains the DC component, the coupling will be set to AC,
the amplitude of the input signal should be greater than 5mV, and the frequency
should be greater than 20Hz.
4. At the mode of Autoscale, DSO is always set as DC coupling with AUTO
triggering, the holdoff is set to 100ns.
5. At the mode of Autoscale, if adjust the vertical position, voltage division, trigger
level or time scale, the oscilloscope will pause the Autoscale function. To resume
Autoscale, push the Autoset front panel button.
6. When video triggering, the horizontal time scale is 50us.
7. While the Autoscale is working, the settings below will be made forcibly:
The DSO will switch from the wave zoom mode to the normal mode.
In the decoding, pass/fail or XY mode, when entering into Autoscale, these modes
will be turned off.
In the STOP status, when entering into Autoscale, the status will be set to RUN.
How to Use Built-in Help
1. Push Help button, the catalog will display in the screen.
2. In the bottom menu, press Prev Page or Next Page to choose help topic, or just
turn the M knob to choose.
3. Press OK to view the details about the topic, or just push the M knob.
4. Press Quit to exit the help, or just do other operations.
