6.Communication with PC
(4) Set the network parameters of the oscilloscope. In the oscilloscope, push the Utility
button. Select Function in the bottom menu. Select LAN Set in the left menu. In the
bottom menu, set the Type item as LAN, and select Set. In the right menu, set IP and
Port to the same value as the "Ports-settings" in the software in step (3). The Netgate
and Net mask should be set according to the router. Select Save set in the bottom
menu, it prompts "Reset to update the config". After resetting the oscilloscope, if you
can get data normally in the oscilloscope software, the connection is successful.

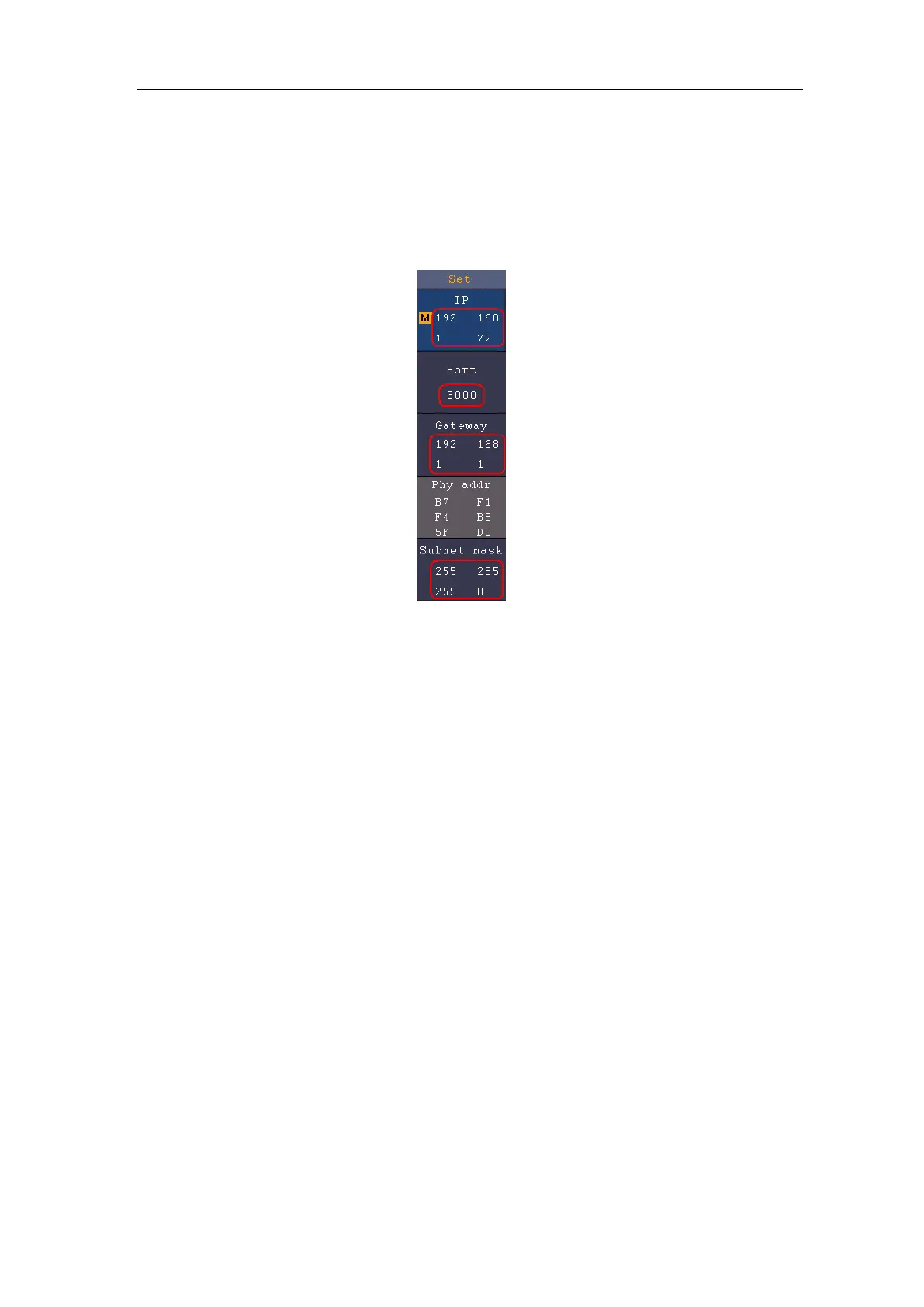

Figure 6-7 Set the network parameters of the oscilloscope
