4.Advanced User Guidebook
(1) Push the Display button.
(2) Select Persist&Color in the bottom menu.
(3) Select Color in the right menu, choose between ON/OFF.

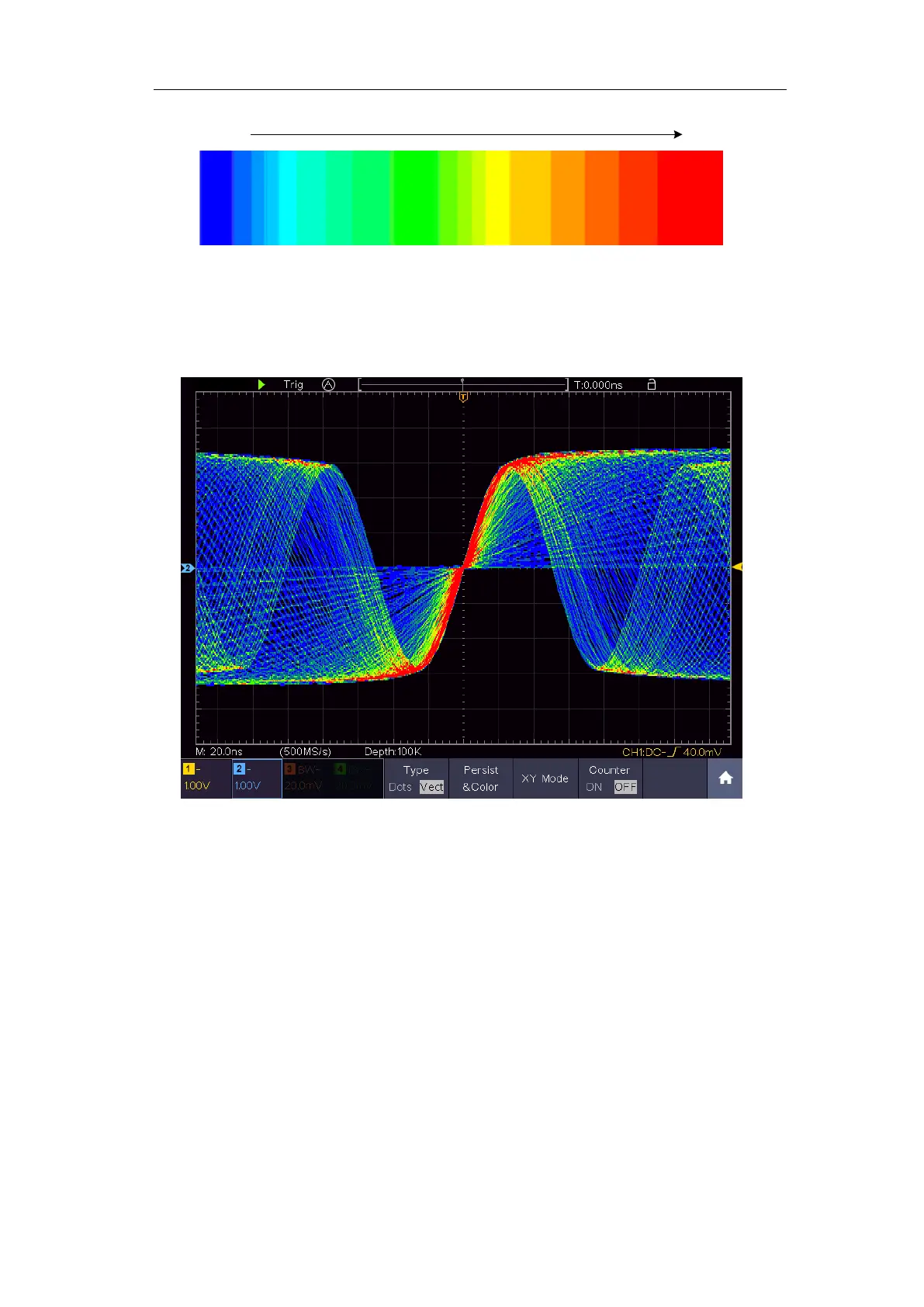

Figure 4-5 The color temperature function is on
XY Format
This format is only applicable to Channel 1 and Channel 2. After the XY display
format is selected, Channel 1 is displayed in the horizontal axis and Channel 2 in the
vertical axis; the oscilloscope is set in the un-triggered sample mode: the data are
displayed as bright spots.
The operations of all control knobs are as follows:
The Horizontal Scale and the Horizontal Position knobs are used to set the
horizontal scale and position.
The Vertical Scale and the Vertical Position knobs are used to set the vertical
scale and position.
The following functions can not work in the XY Format:
