VOLTCRAFT DSO Four-Channel Series User Manual

4.Advanced User Guidebook
83
move it.
6. Push the Horizontal HOR button to enter wave zoom mode. In the bottom
cursor menu, select Window as Main or Extension to make the cursors
shown in the main window or zoom window.

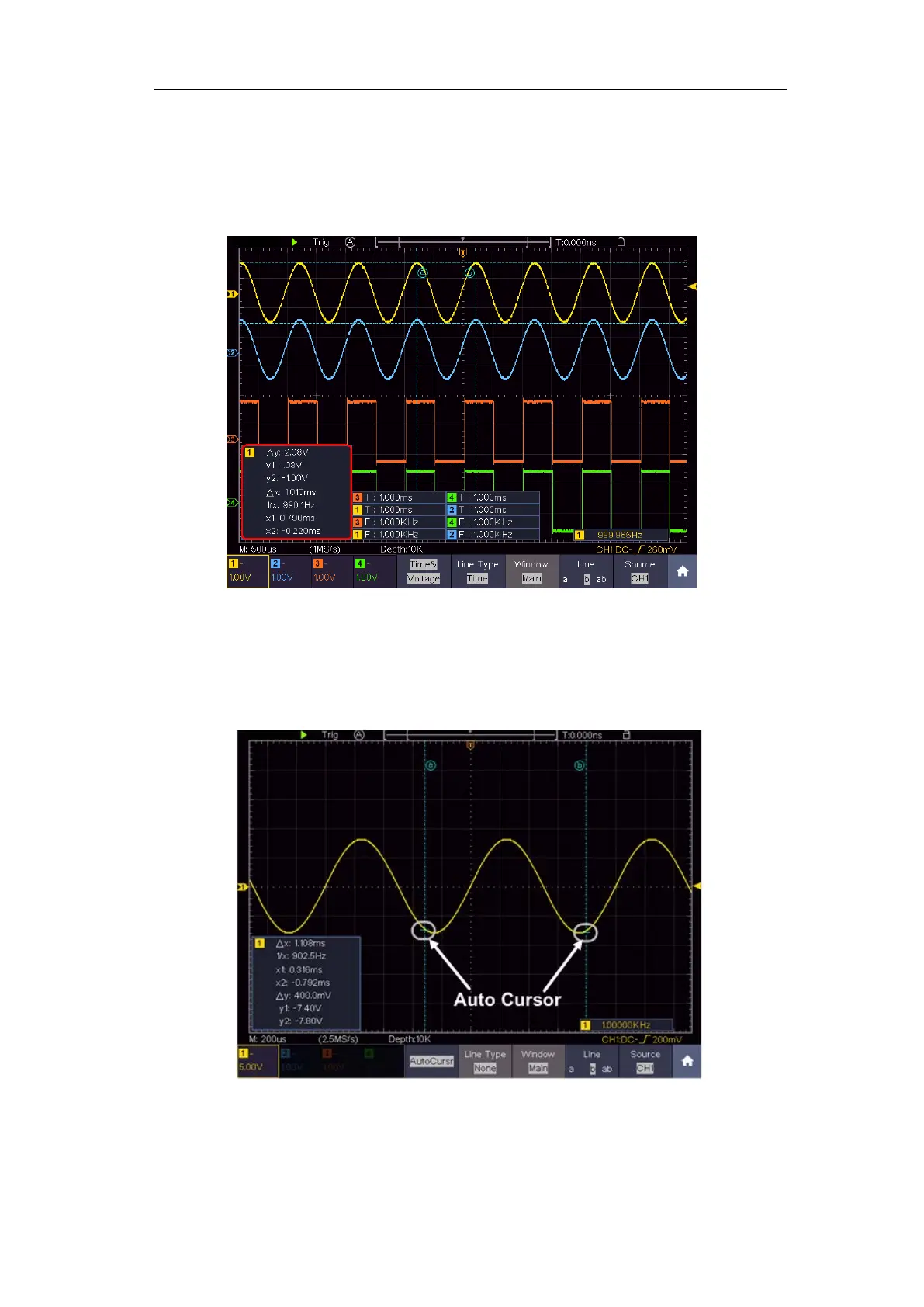

Figure 4-20 Time&Voltage Cursor Measurement
Auto Cursor
For the AutoCursr type, the horizontal cursors are set as the intersections of the
vertical cursors and the waveform.
Figure 4-21 Auto Cursor
The Cursor Measurement for FFT mode
