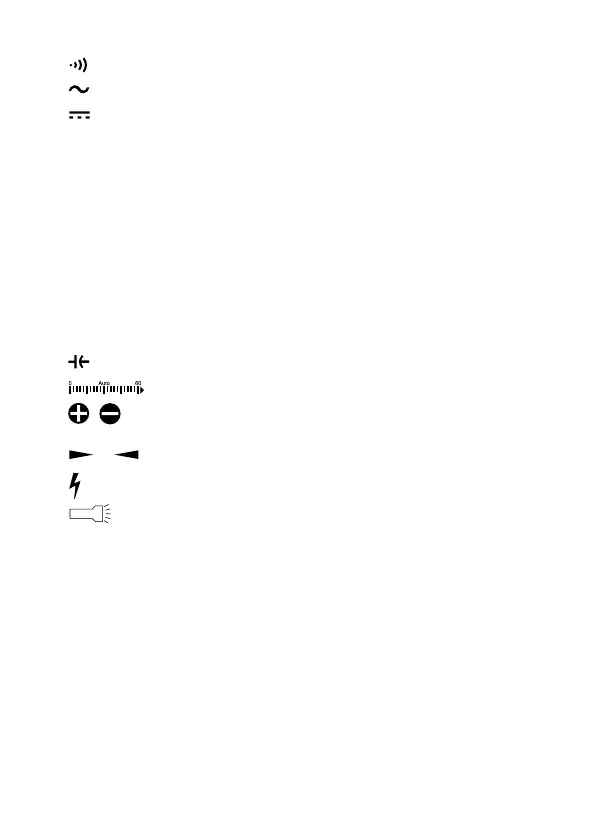

Symbol for acoustic continuity check
AC Alternating voltage and current
DC Direct voltage and current
V, mV Volt (unit of electric potential), millivolt (exp -3)
A,mA,μA Ampere(unitofelectriccurrent),
milliampere (exp -3), microampere (exp -6)
Hz Hertz (unit of electric frequency)
°C, °F Unit of temperature (Celsius = European, Fahrenheit = empirical)
Ω,kΩ,MΩ Ohm(unitofelectricalresistance),kiloohm(exp3),megaohm(exp6)
nF Nanofarad (exp -9; unit of electrical capacitance)
μF Microfarad(exp-6)
mF Millifarad (exp -3)
Symbol for capacitance measuring range
Bar graph (not for °C, °F and NCV)
Polarity markings (positive/negative terminal) for DC measurement. The
symbols show the direction of current for measuring with correct polarity.
Conductor position markings for correct current measurement.
The current exceeds 30 V/AC and 42 V/DC.
Button to start and stop the measurement point illumination
