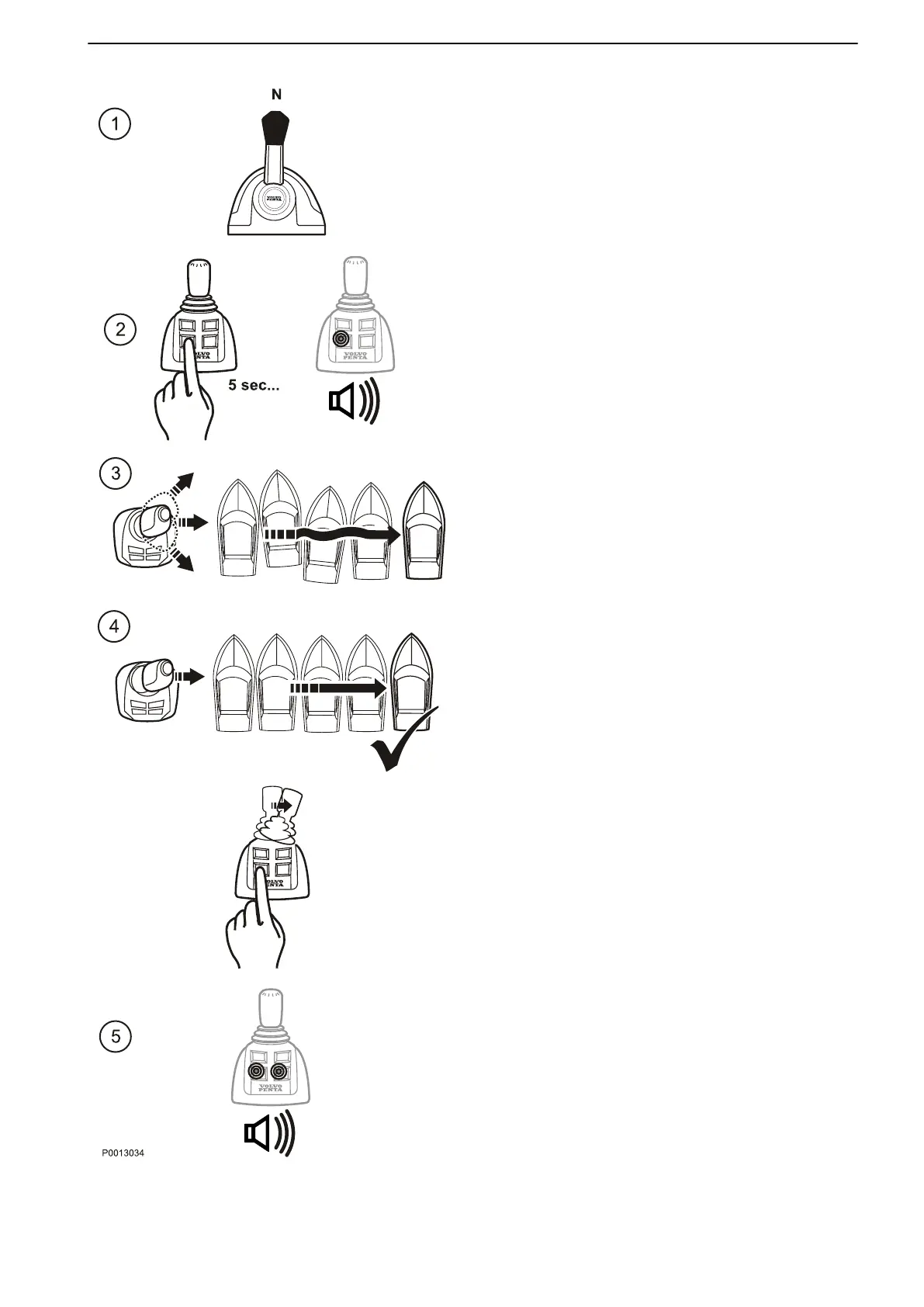

1 Turn the ignition on and move the control levers to
neutral.
2 Start the engines.
Activate calibration mode by depressing the dock-
ing button for 5 seconds.
An audible signal confirms that docking mode is
activated and the docking button lights up.
3
Move the joystick sideways as far as it will go in one
direction.
Correct boat movements by moving the joystick up
and down, and by turning it.
4 When the boat is moving straight abeam, depress
the docking button once again.
5 An audible signal will sound and both lower button
lamps on the joystick will flash to confirm that cali-
bration is complete and stored. The system is now
in docking mode.
When the joystick returns to the central position the
lamps will stop flashing and will instead show continu-
ously.
Calibration and Settings
47705796 05-2014 © AB VOLVO PENTA 127
