Gauge Rangesetting the instrument's maximum
range.
Boat Speed10 – 100 knots in 10 knot stages.
Engine Speed2500, 3000, 4000, 5000, 6000 rpm.
Propeller speed1000, 2000, 3000 rpm.
EVC Informationthis information cannot be changed.
Featuresinstalled functions are marked blue.
Componentspress
to see installed compo-
nents..
Softwareinformation regarding the software ID
number.
Calibration
The following is only displayed if the function is instal-
led. For further information refer to the appropriate
section in the Settings Menu page 120
chapter.
Speed Correctionsetting the speed factor.
Depthsetting the echo sounder depth alarm. Follow
the instructions on the screen.
Fuel Tankfuel tank calibration. Follow the instructions
on the screen.
ACP Infosetting the ACP protection position.
PTAPTA calibration. Follow the instructions on the
screen.
Warning Manager
If the system discovers a fault, the helmsman is alerted
by a message on the display. The fault message must
be acknowledged by pressing
.
All faults are stored in Warning Manager.
The fault message indicates the driveline affected,
describes the fault and suggests suitable actions.
For further information on fault messages, refer to
Fault Handling page 67.

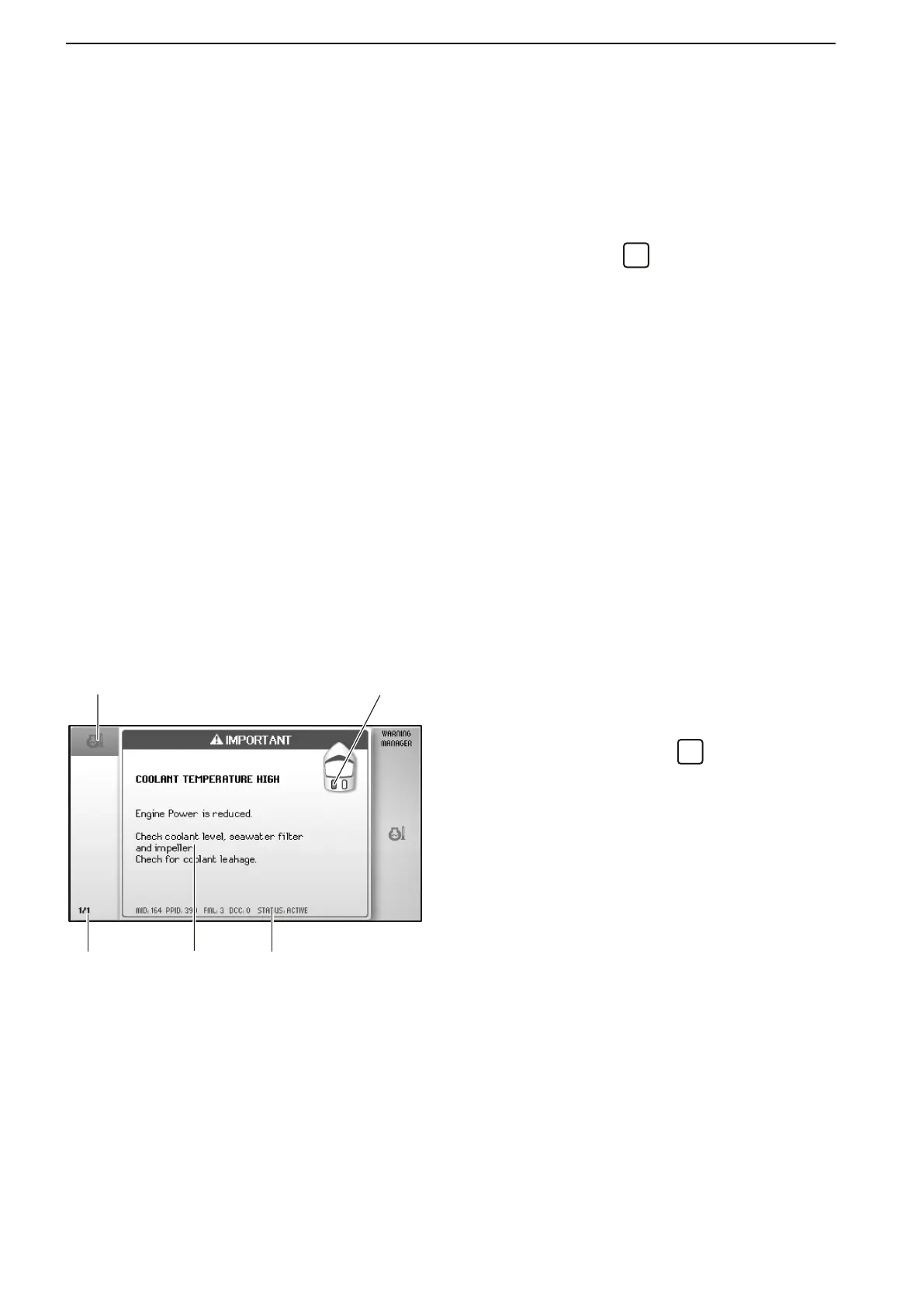

1 Symbol
2 Shows which driveline the fault was detected in.
3
List of registered faults; turn the knob to browse.
4 Fault message with description and suggestion for action.
5 Service information.
