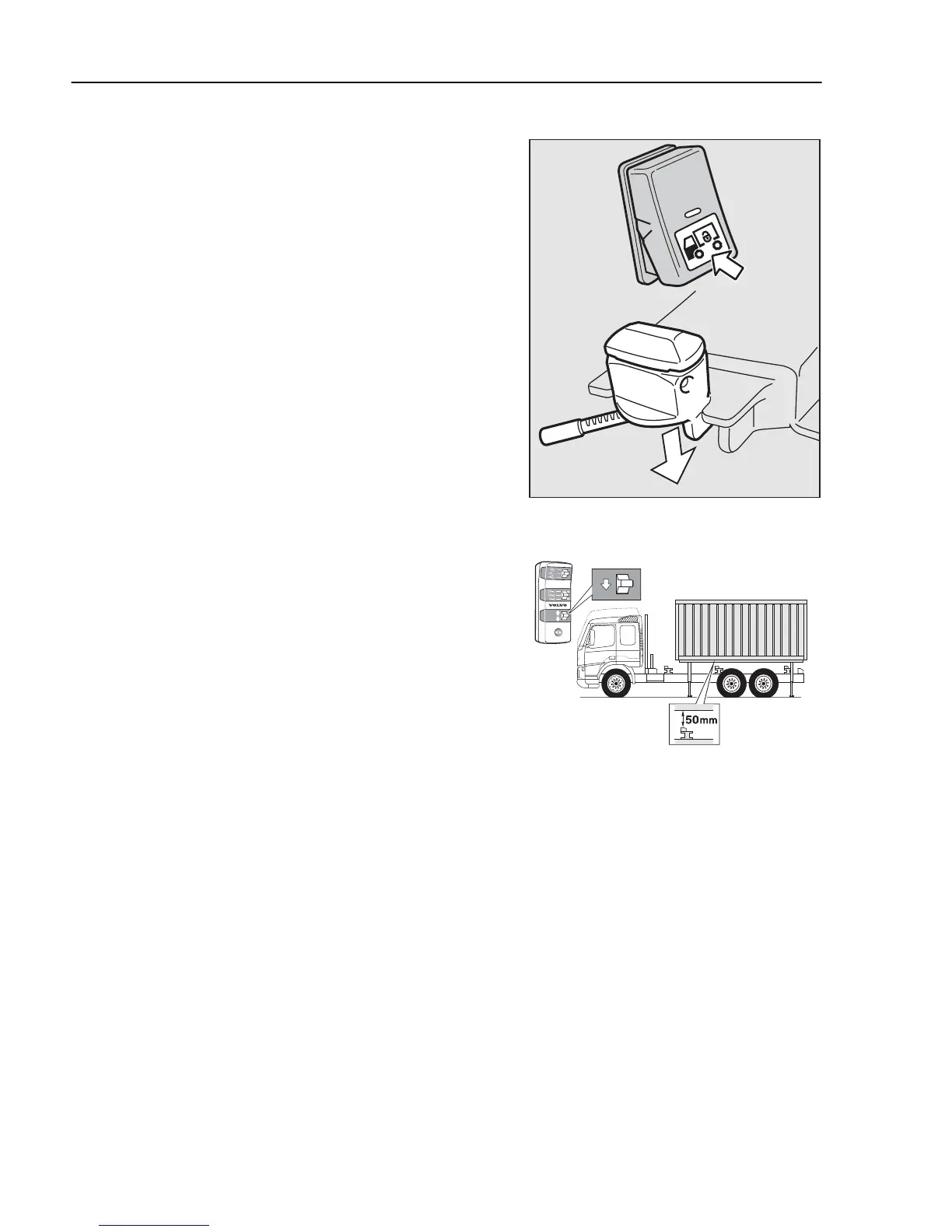

7 Lower the lock pins with the switch in the cab
J9007932
8 Lower the truck on the air suspension so that it can
be reversed with
50 mm
clearance between the truck
and the swap body
J9007934
9 Carefully reverse the vehicle in under the platform
10 Stop when the container locks on the vehicle are
under the lock holes in the platform
11 Raise the vehicle with the air suspension until the
support legs have been lifted sufficiently off the
ground to be manoeuvrable. If shunting with hanging
support legs the support legs must be lifted
100 mm
from the ground
Note!
Shunting with hanging support legs
must be done at low speed and with
maximum care.
278
Loading and unloading
