J0010460

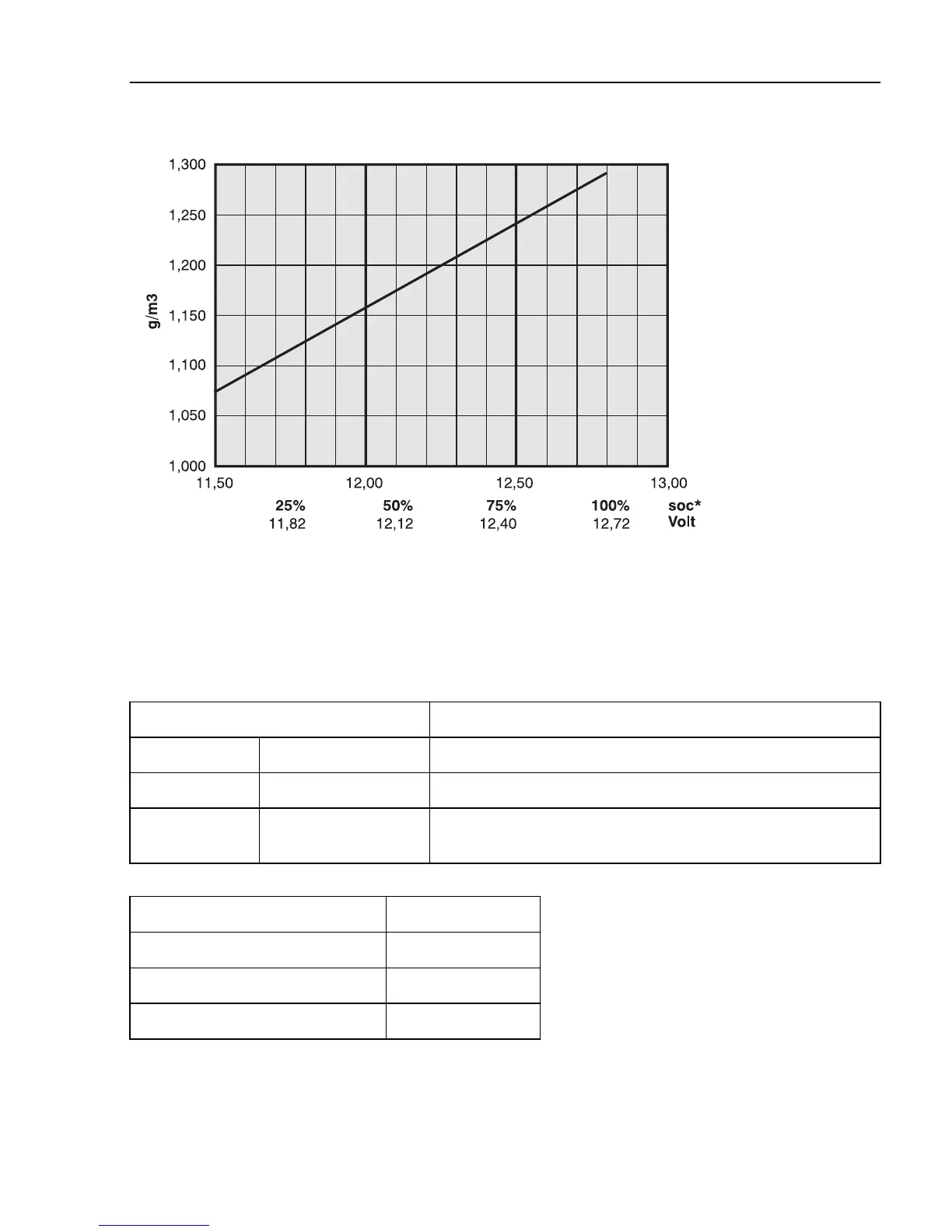

* State of Charge (Charge status)

Specifications for the electrical system

System voltage 24V

Battery number 2

voltage 12 Volt

capacity D9: 140, 170 or 225 Ah

D12: 170 or 225 Ah

Electrolyte specific weight:

fully charged battery

1.265-1.290 g/cm

3

half charged

1.25 g/cm

3

charge necessary

1.20 g/cm

3

Maintenance

551
