Vox Tonelab EX User Manual

9

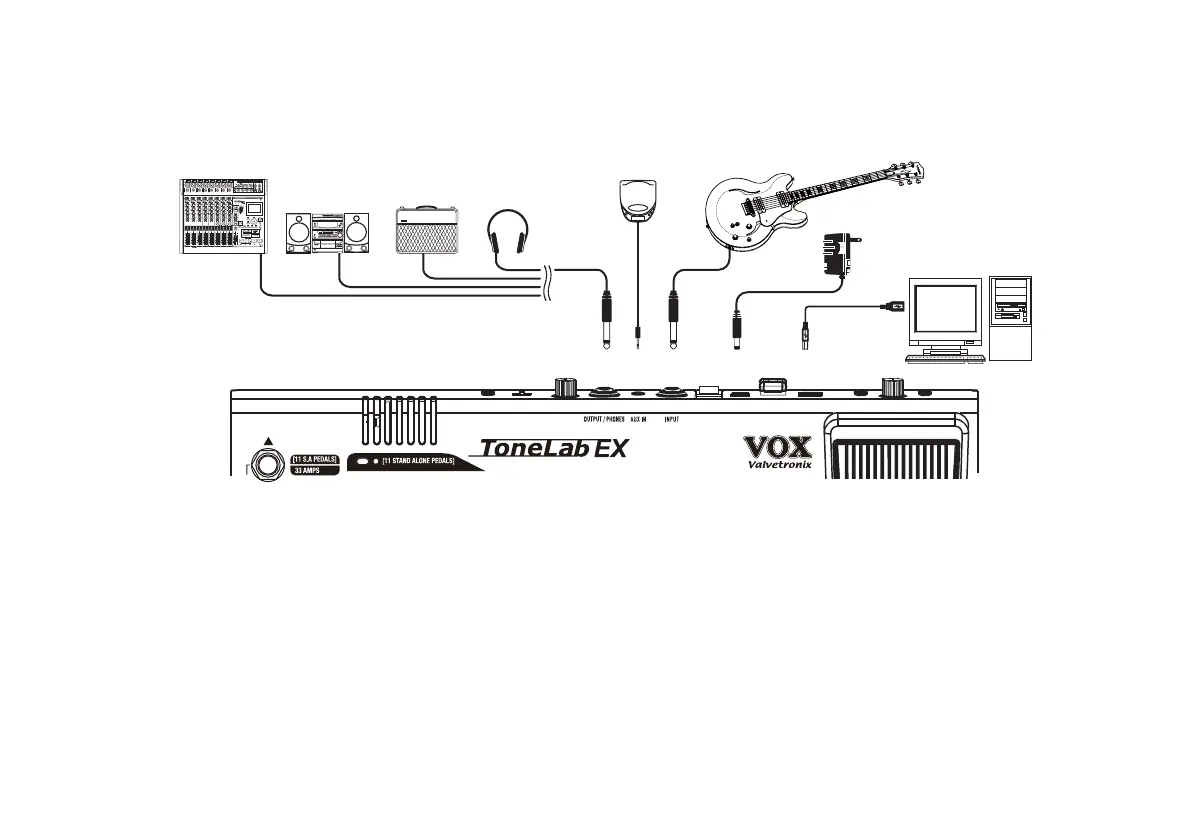

Making connections
Here’showtomakeconnectionsandstartusingyourToneLabEX.
AC adapter
CD, MP3 player, etc.
Audio system
Mixer, recorder, etc.
Computer
USB cable
Guitar
Guitar amp
Headphones
VOX
OUTPUT/PHONES INPUT
DC12V
AUX
IN
USB
1. SettheAMP/LINEswitchappropriatelyforthetypeofde‐
viceyou’llbeconnectingtotheOUTPUT/PHONESjack
.
SettheAMP/LINEswitchasfollows.
AMP (VOX, F, M)
Ifyou’ reconnectingaguitaramp,choosetheVOX,F,orM
setting.Thissettingwill compensate theoutputfromthe
ampmodelasnecessary.However,compensationwillnot
beappliediftheampmodelisofforthestandalonepedal
isselected.
• VOX: Use this setting if the output is connected to an
ampthathasadistinctivemid‐rangesuchastheAC30
open‐backedcomb oampmadebytheVOXCorporation.
• F:Usethissettingiftheoutputisconnectedtoatypical
clean‐soundingUS‐madeopen‐backedcomboamp.
• M:Usethissettingiftheoutputisconnectedtoahigher
gainstack‐typeampsuchasa4x12closed‐backcabinet.
LINE
Usethissettingiftheoutputisconnectedtoyourguitar
amp’spoweramp,toanaudiosystem,mixer,or recorder,
ortoheadphones,oriftheToneLabEXʹsbuilt‐inspeakers
areused.WhenLINEisselected,youcanuseTotalEqual‐
izer.Adjusttheoutput soundinOPTIONparamete
rset‐
tingmode(p.14,“UsingTotalEqualizer”).
