BA EZ26 en/us* 1.0 * EZ26_01_510.fm 5-45
Operation 5
Machine damage due to a vehicle tipping over if the weight in the load
diagram is exceeded.
► Do not exceed the weights indicated in the load diagrams.

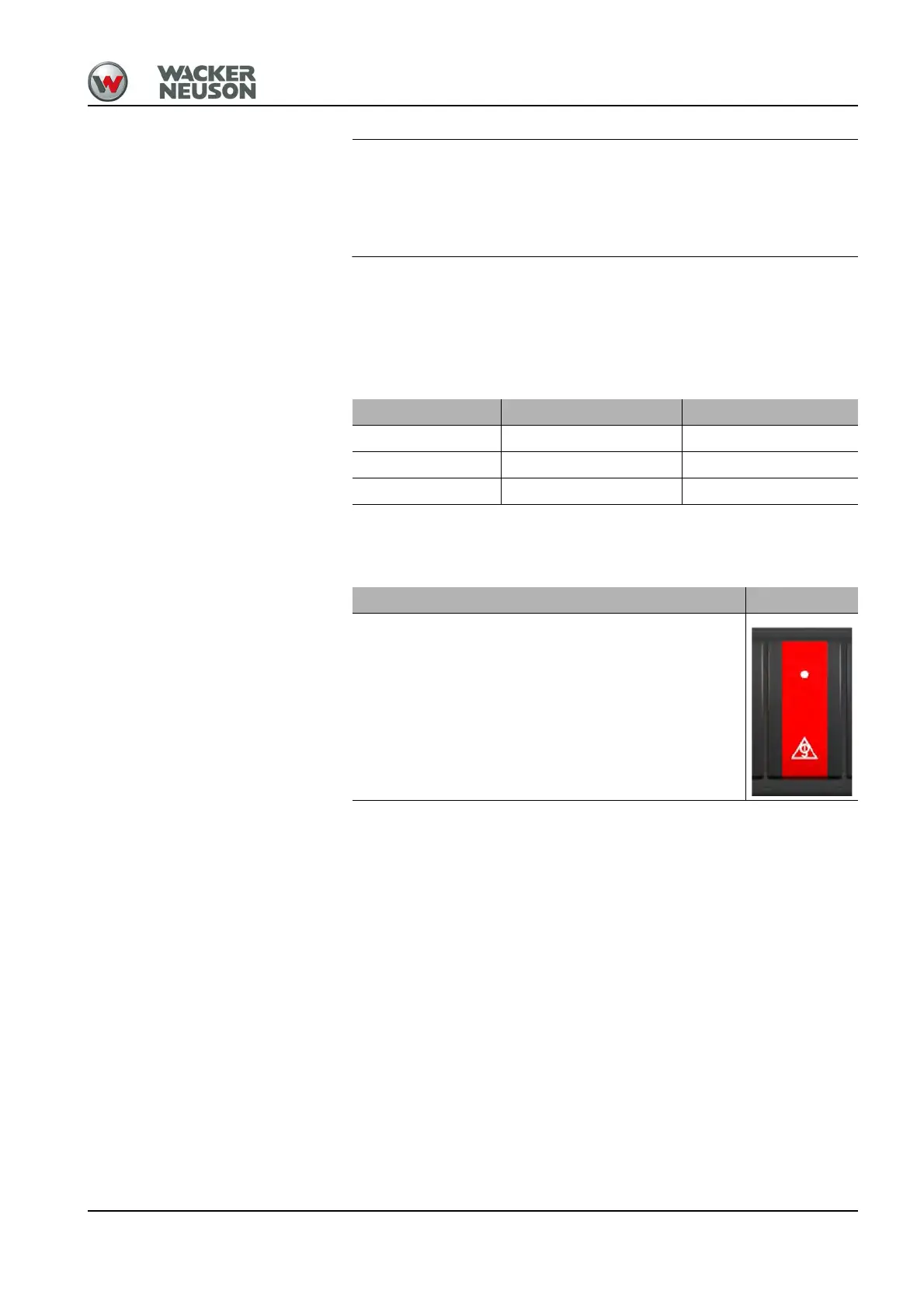

Safe load indicator
The safe load indicator alerts the operator visually and acoustically if the
load on the boom is too high.
There are two versions:
• Overload warning device basic (option) / advanced (option)
The switch for activating and deactivating the safe load indicator is located
on the switch panel on the left.
Position basic advanced
Boom Hose burst valve Hose burst valve
Shovel arm Hose burst valve Hose burst valve
Stabilizer blade Hose burst valve Counterbalance valve
Safe load indicator Switches
On/off
